Astro Observe is Astronomer’s comprehensive observability solution for Apache Airflow®. It allows you to define data products consisting of Airflow pipelines and datasets across your deployments. You can set Service Level Agreements (SLAs) on these data products to ensure that your data is delivered on time and is fresh. Easy to set up alerts notify you when SLAs are not met.
After you complete this tutorial, you’ll be able to use Astro Observe to:
There are multiple resources for learning about this topic. See also:
This quickstart takes approximately 45 minutes to complete.
To get the most out of this tutorial, make sure you have an understanding of:
Log in to your Astro account.

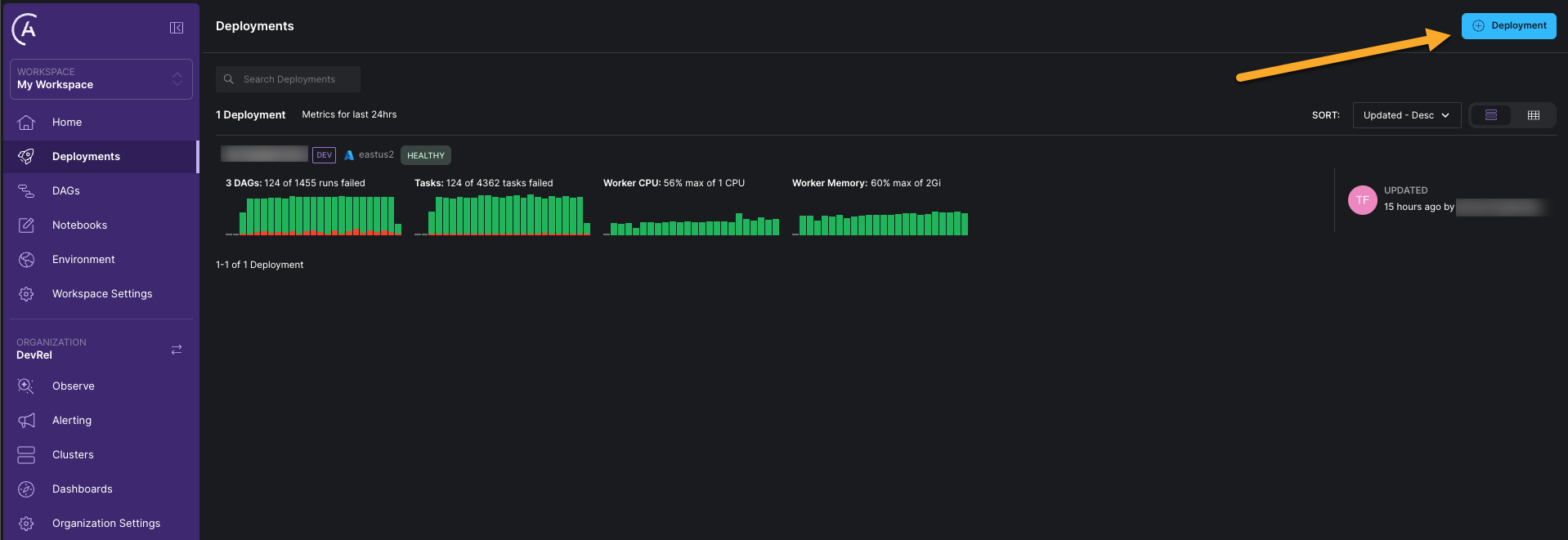

Click on + Deployment to create a new deployment using default settings.

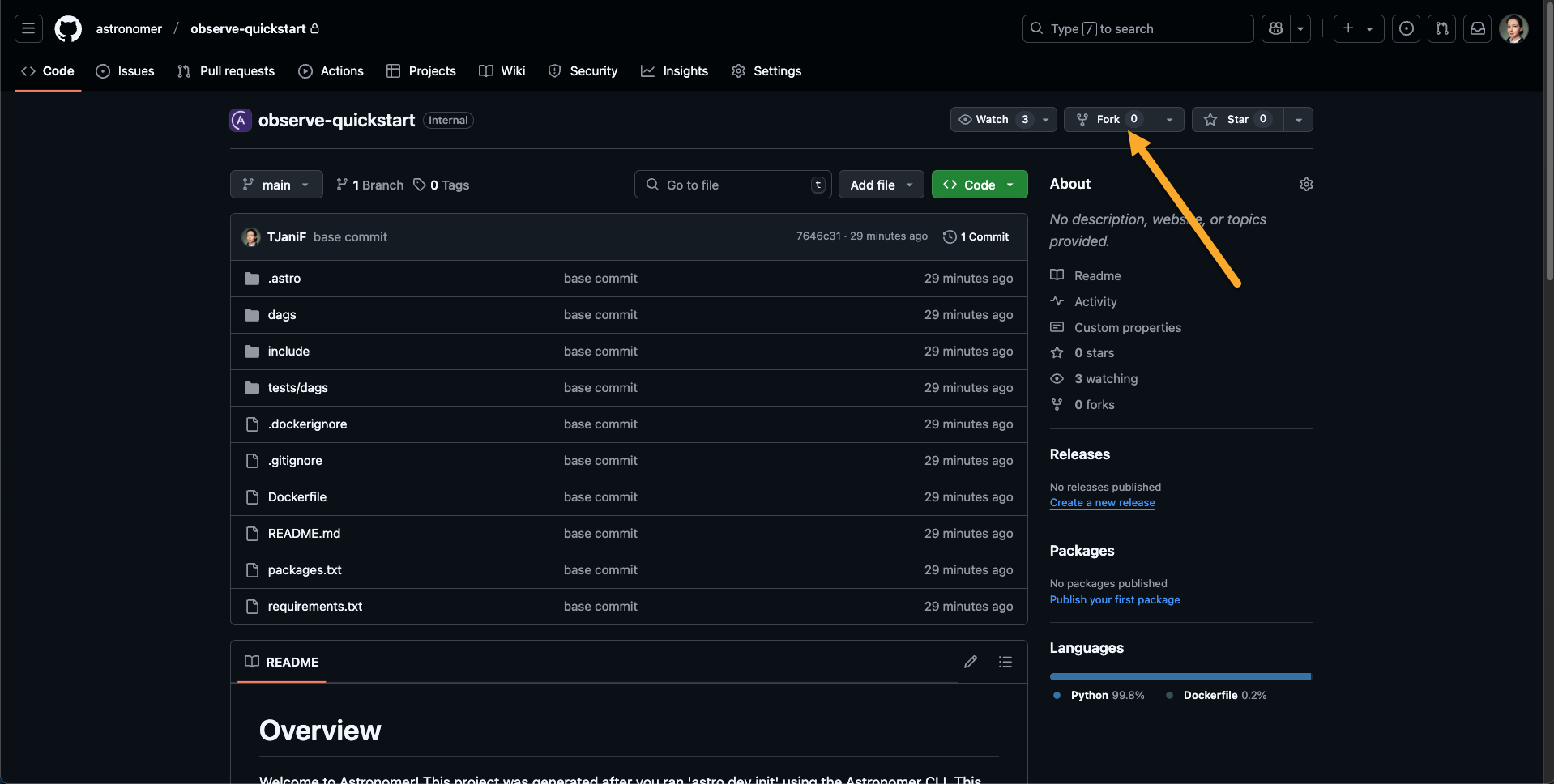

Fork the Observe Quickstart GitHub repository to your GitHub account.

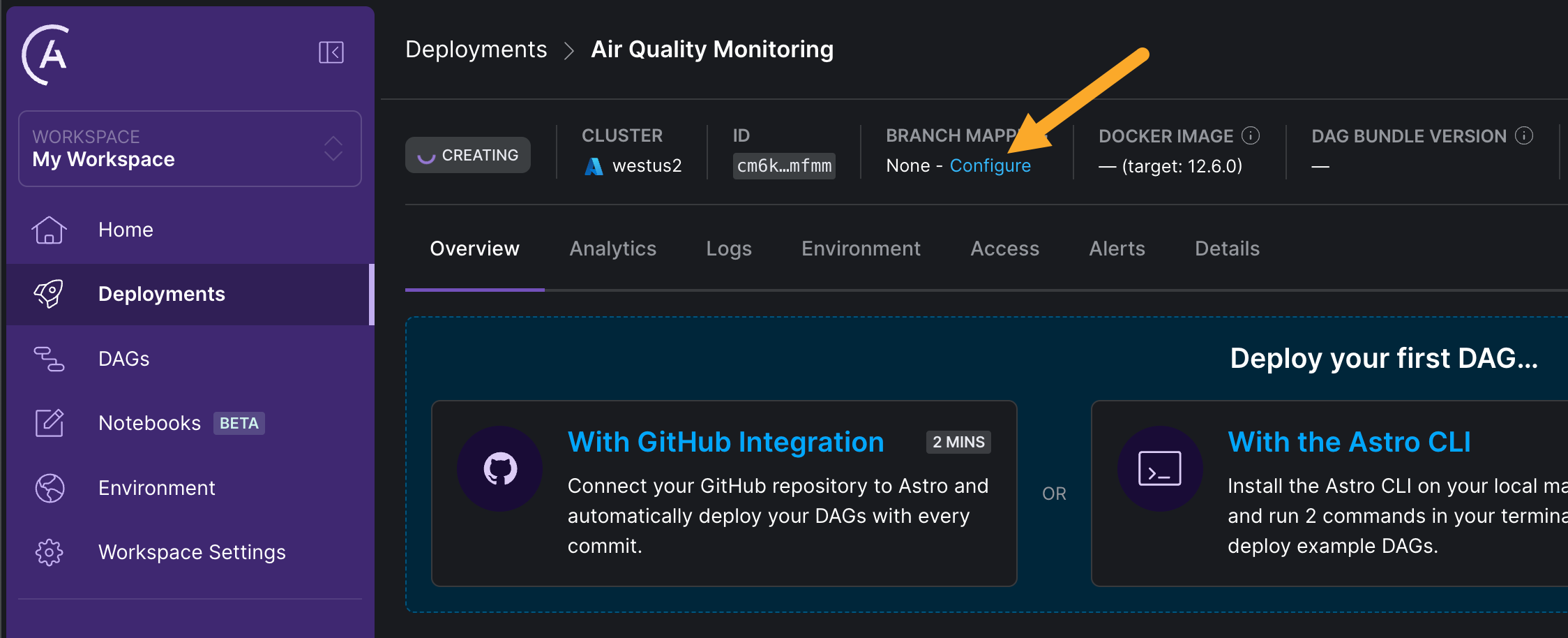

In the Astro UI, go to your newly created deployment and click on Configure in the BRANCH MAPPING section to map the deployment to a branch in your forked repository, see Deploy code with the Astro GitHub integration

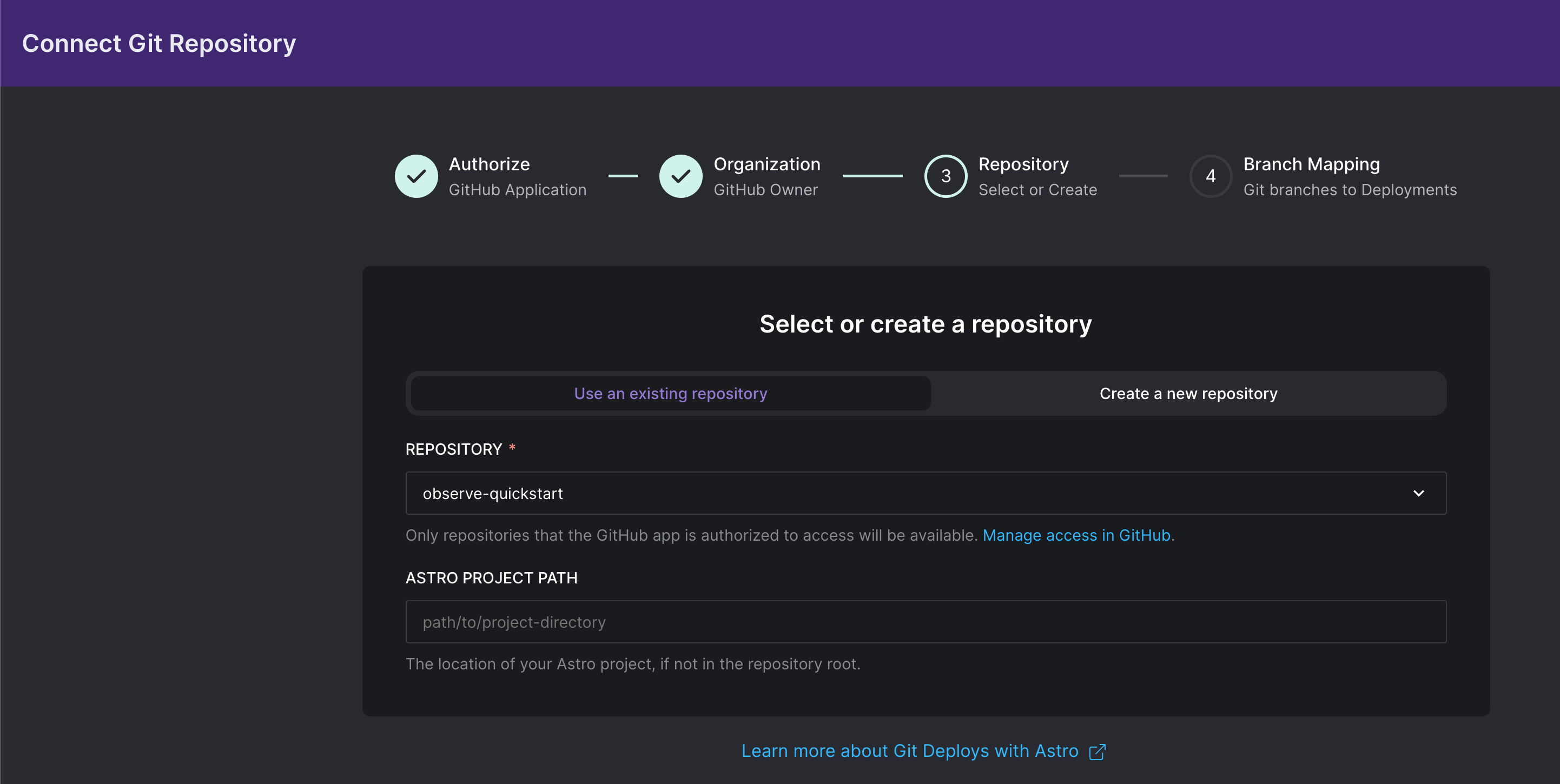

Click on Connect Repository and go through the steps in the UI to connect your forked repository to the deployment. Note that your GitHub Account needs to have the necessary permissions to authorize GitHub Apps. Make sure to select Use an existing repository and select your forked repository in the dropdown. You do not need to provide an Astro project path, since the project is at the root of the repository. Click Connect Repository to connect the repository to your Astro organization.

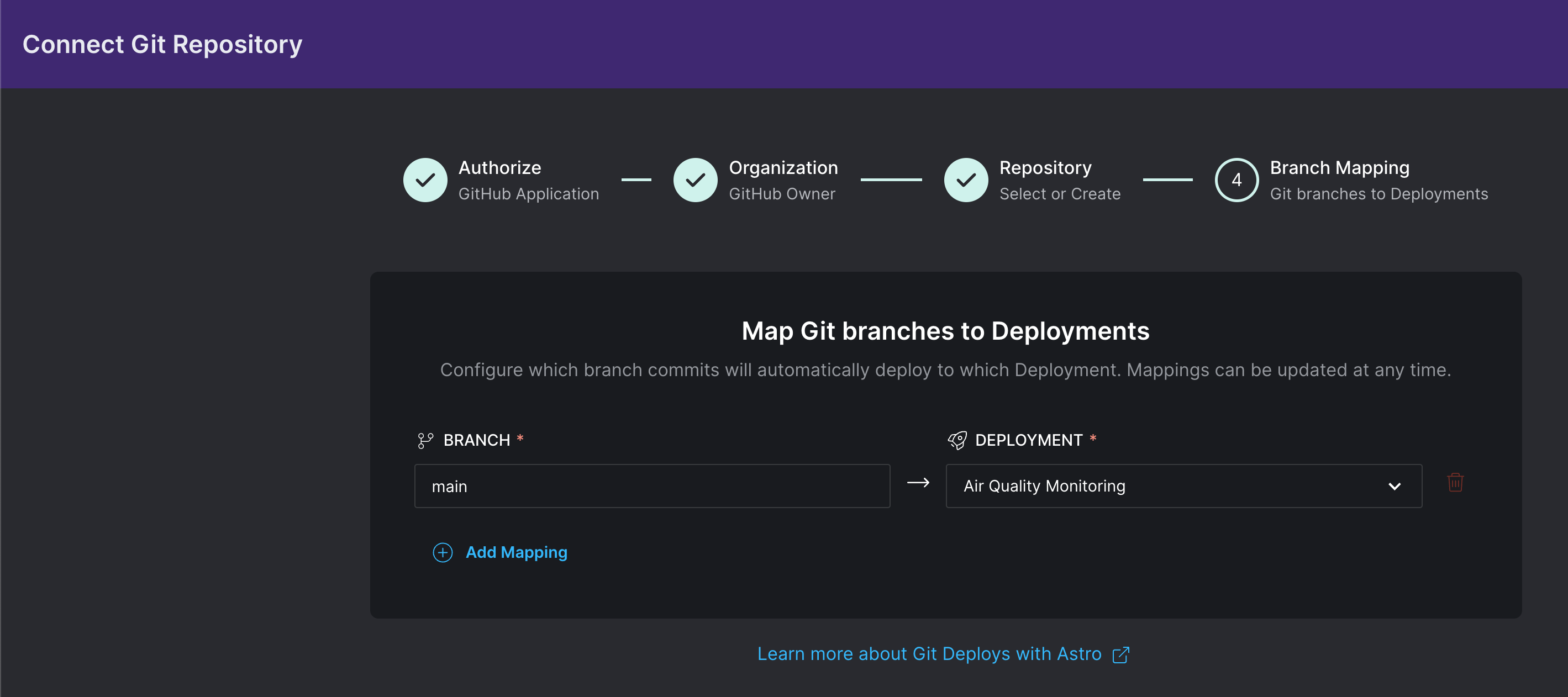

Select the main branch as the Branch and map it to your empty Deployment. Click Update Mappings to save the changes.

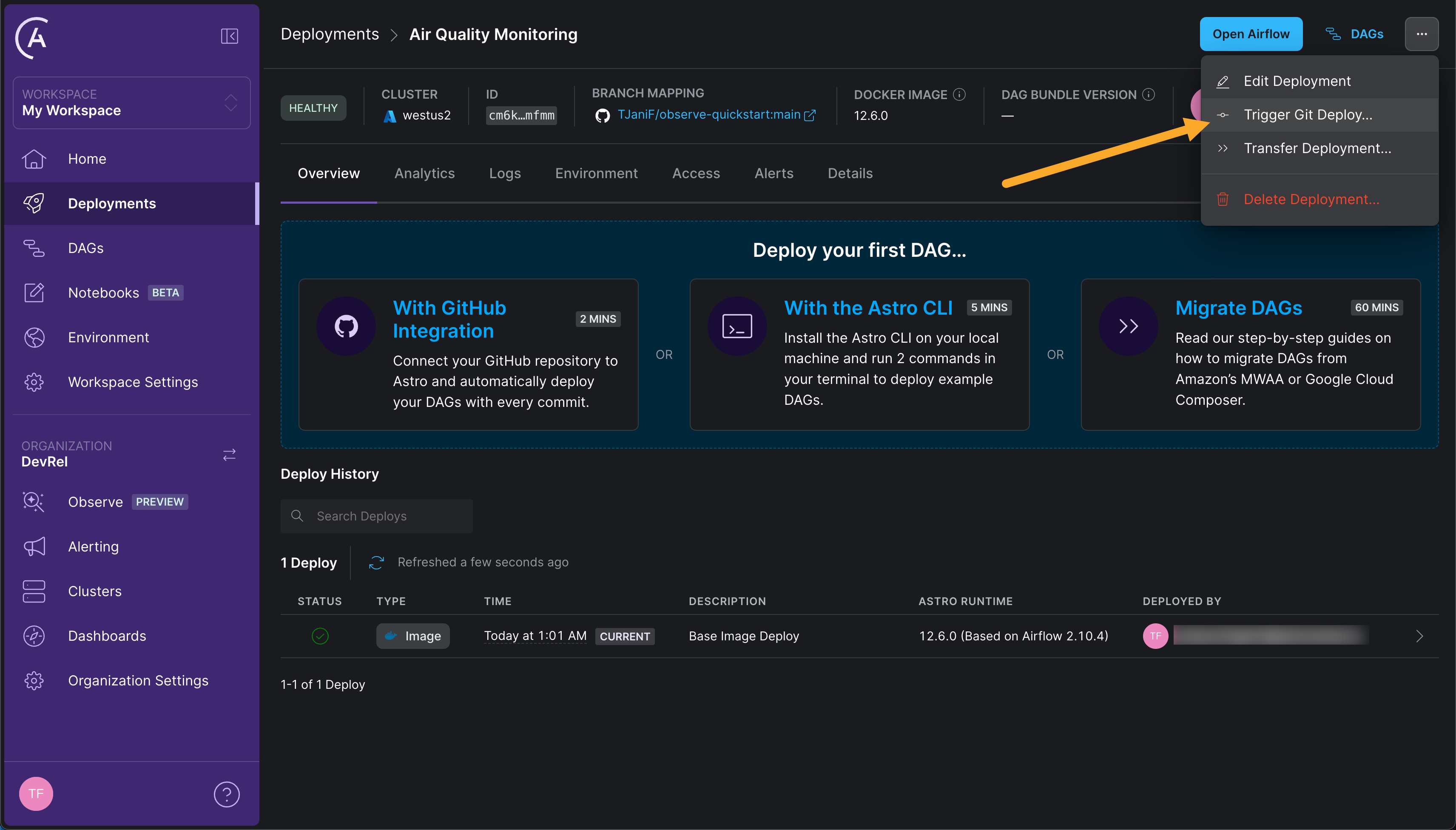

To deploy the code currently on the main branch of the mapped repository, click on the … button in the top right corner, and the on Trigger Git Deploy…. Any subsequent commits to the mapped branch will automatically trigger code deployment. You can verify that deploying was successful through the Deploy History of your Astro Deployment, which should show 2 Deploys with a green checkmark as their status. This process may take a few minutes.

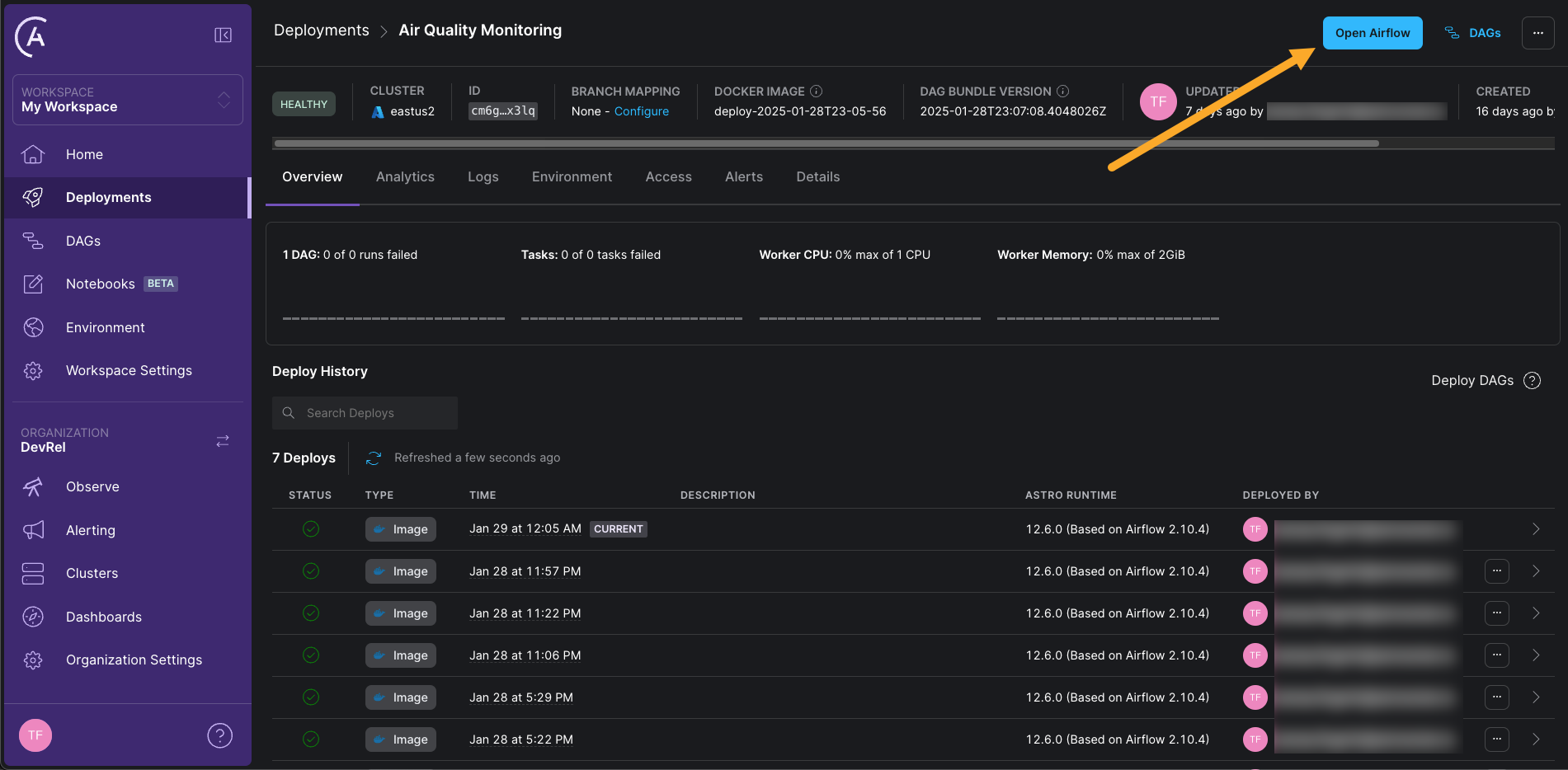

After the code has been deployed, click Open Airflow to open the Airflow UI.
Unpause all 3 DAGs in the Airflow UI by clicking on the play button next to each DAG. They will start running according to their schedules.
The three DAGs form a pipeline monitoring air quality data:
aq_etl: This DAG runs once every minute to fetch the latest measurement from an air quality sensor. It will occasionally fail, mocking the sensor not always being available.send_aq_alerts: This DAG runs once every 10 minutes to check if the current air quality determined by the average of the measurements of the last 20 minutes is below a certain threshold. If it is, the DAG sends an alert.create_aq_report: This DAG runs at the top of every hour to create a report of air quality measurements. It reports average measurements for each of the last 24 hours.After all DAGs have at least run once, you can use Astro Observe to create a data product to represent the output of these DAGs.
In the Astro UI, click on Observe in the sidebar and then click on + Data Product.

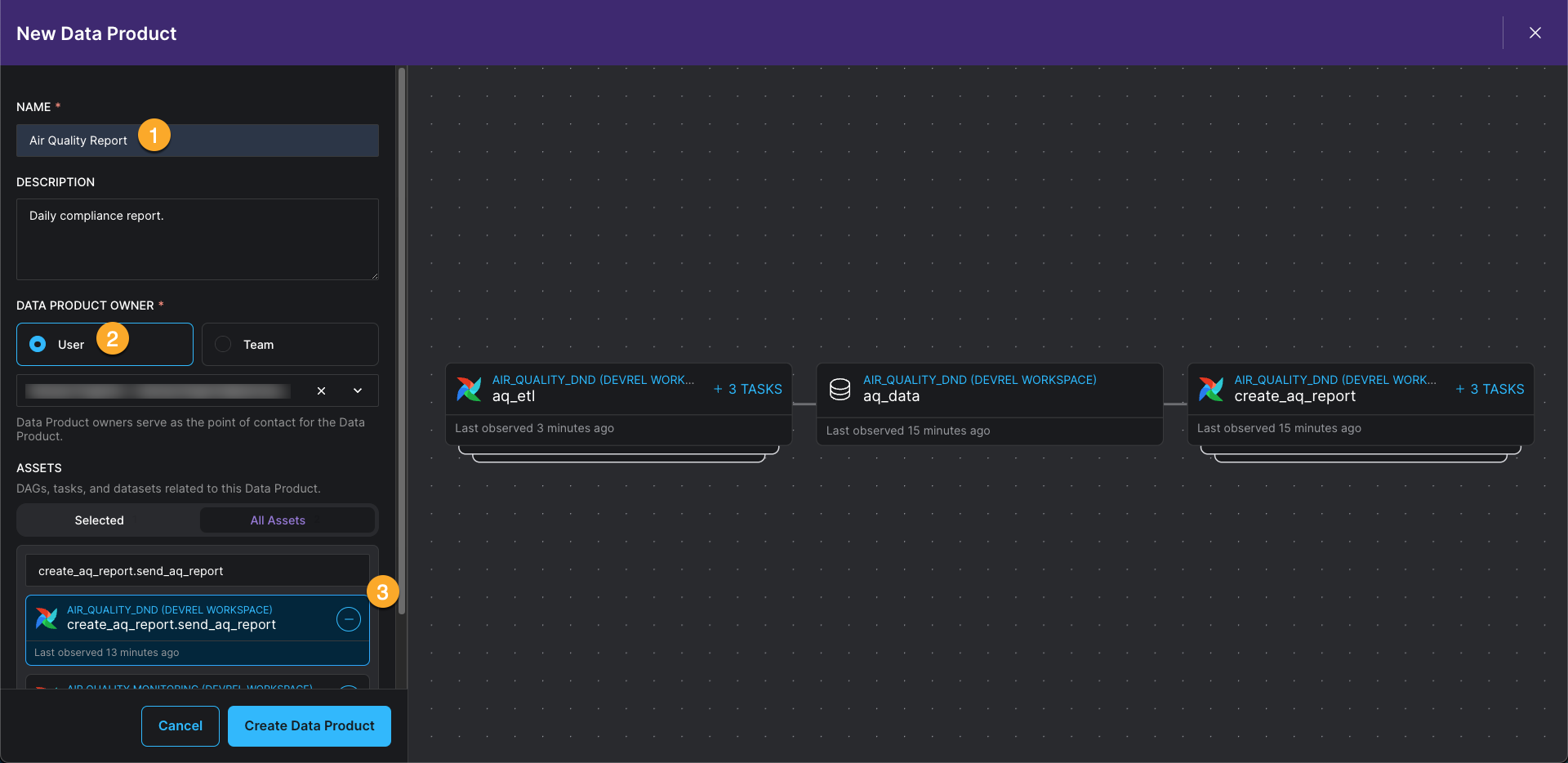

Give your data product a name (we used Air Quality Report) and select a User as an owner. Then search All Assets for the send_aq_report task in the create_aq_report DAG. This task creates a report of air quality measurements. Click on the plus sign to add the task to the data product. Astro Observe will automatically determine upstream dependencies for the task and build a data product graph. This even works across Astro Deployments! Click Create Data Product to save the data product.
You can now see the data product in the Astro UI, monitoring the send_aq_report task and its upstream dependencies. Next, you’ll create a timeliness SLA for this data product.
The create_aq_report DAG runs once per hour. Once a day, you are required to send the latest air quality report to an external agency for compliance purposes. It is very important that this report is delivered on time, meaning you need to be sure that the send_aq_report task has successfully completed in the hour before the report is due.
This is where an SLA on a data product comes in handy.

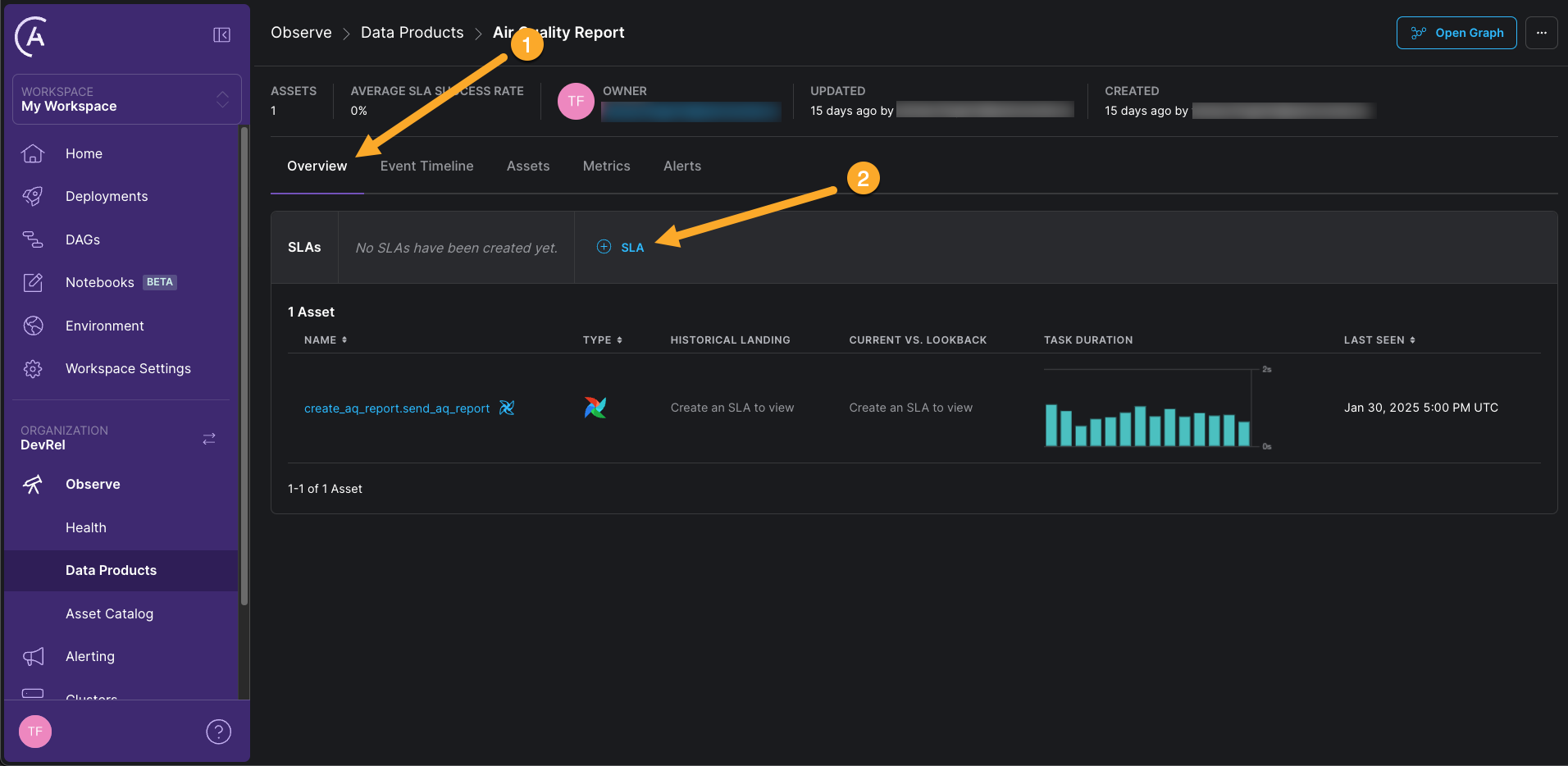

Click on the Overview tab of the Air Quality Report data product and then click on + SLA.

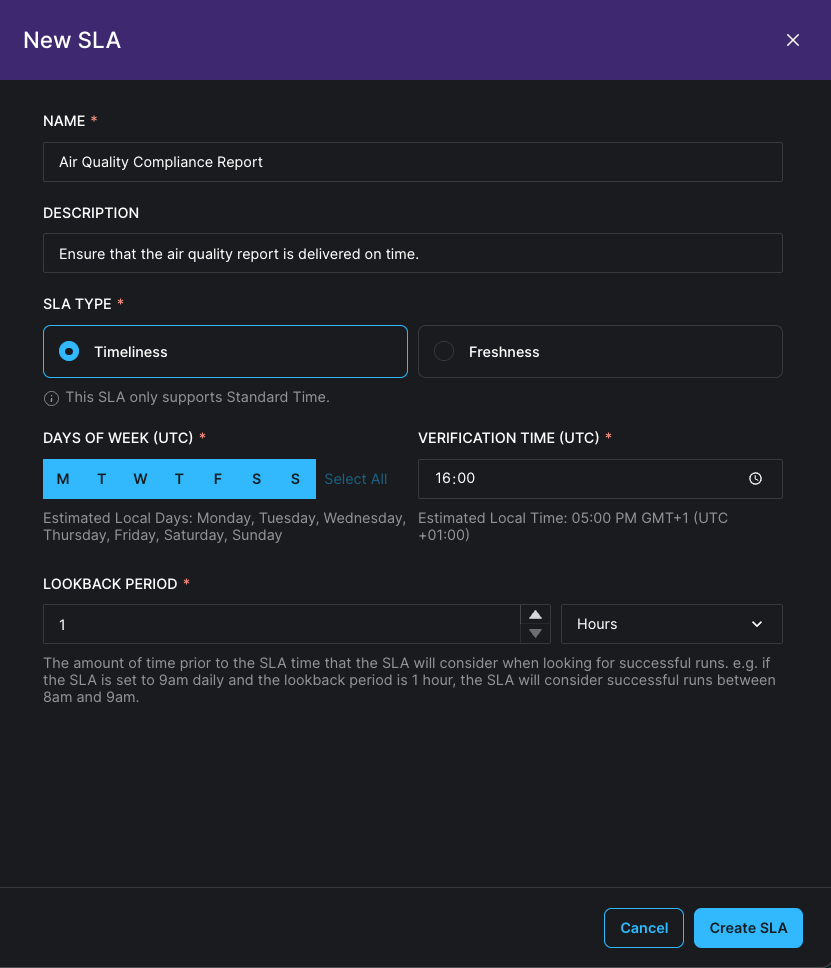

Define a new SLA with the following values:
Air Quality Compliance ReportEnsure that the air quality report is delivered on time.Timeliness1 hour (since you want a latest report that is not older than 1 hour)
Click Create SLA to save the SLA.
After creating the SLA, you can add an alert to it. This alert will notify you if the SLA is not met, i.e. the Verification Time is reached and the send_aq_report task has not been successfully completed in the last hour.

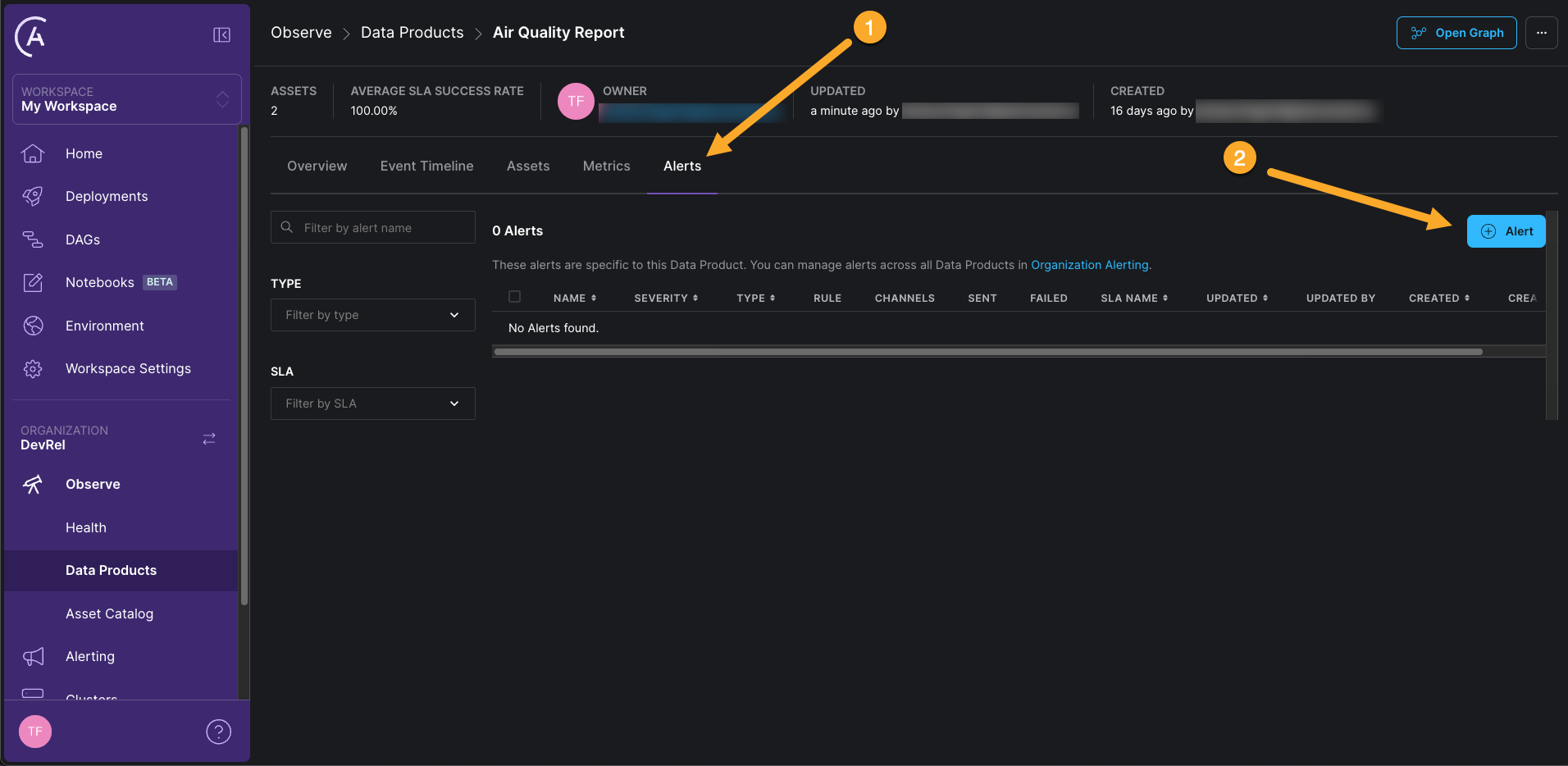

Click on the Alerts tab and + Alert to add alerts to your SLAs.

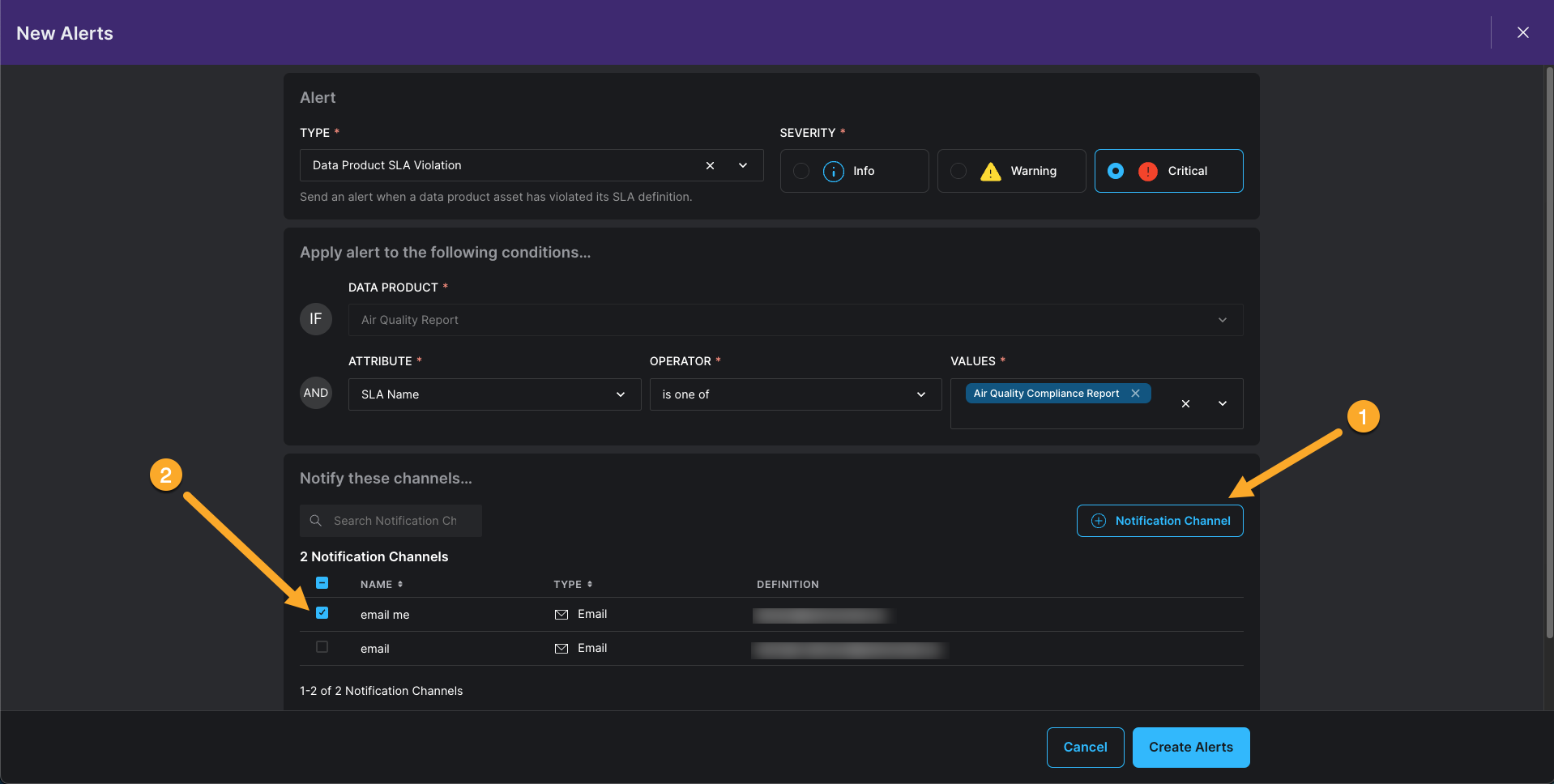

Select the following values for the alert, leaving all other fields at their default values:
Data Product SLA ViolationCriticalIf this is your first time creating an alert, you need to create a new notification channel. Click + Notification Channel, give it a name, and select Email and add your email address using the blue plus sign. Click Create Notification Channel to save the notification channel. After creating the notification channel, you can select it in the alert form. Click Create Alert to save the alert.
Awesome! You will now be immediately informed if the air quality report is not delivered on time. But there is a second aspect to this pipeline that you want to monitor: that the air quality measurements happen frequently enough, i.e. that the data is fresh enough. For this we will create a second data product that focusses on the load_aq_data task in the aq_etl DAG.
Air Quality Measurements), select a User as an owner, and then search All Assets for the load_aq_data task in the aq_etl DAG. This task updates the air quality measurements table. Click on the plus sign to add the task to the data product.The aq_etl DAG runs once per minute. Occasionally the air quality sensor is offline. This is expected, but you want to be sure that the latest air quality measurement is never older than 1 hour.
Click on the Overview tab of the Air Quality Measurements data product and then click on + SLA.
Define a new SLA with the following values:
Air Quality FreshnessEnsure that the air quality measurements are updated at least once every Hour.Freshness1 hourClick Create SLA to save the SLA.
Click on the Alerts tab and + Alert to add an alert to the SLA and add another Critical alert with the same notification channel as before.
Click Create Alert to save the alert.
To test the SLAs, you can manually trigger the aq_etl with the option of delaying the get_aq_data task for two hours. This will cause the load_aq_data task to not be updated for two hours, which will cause the freshness SLA to be violated. No new DAG runs are scheduled, because the DAG is set to only allow one concurrent run with the max_active_runs parameter.

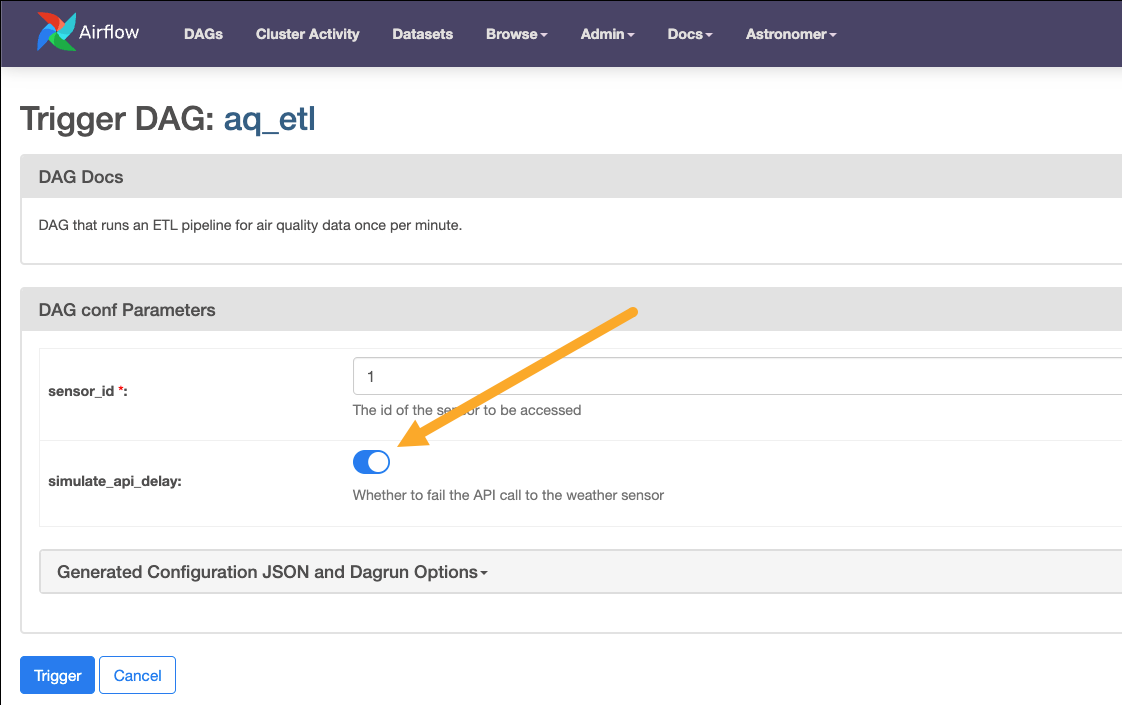

In the Airflow UI, click on the play button next to the aq_etl DAG to open the form for manually triggering the DAG.
In the form, toggle the simulate_api_delay button.
Click Trigger to trigger a manual DAG run.

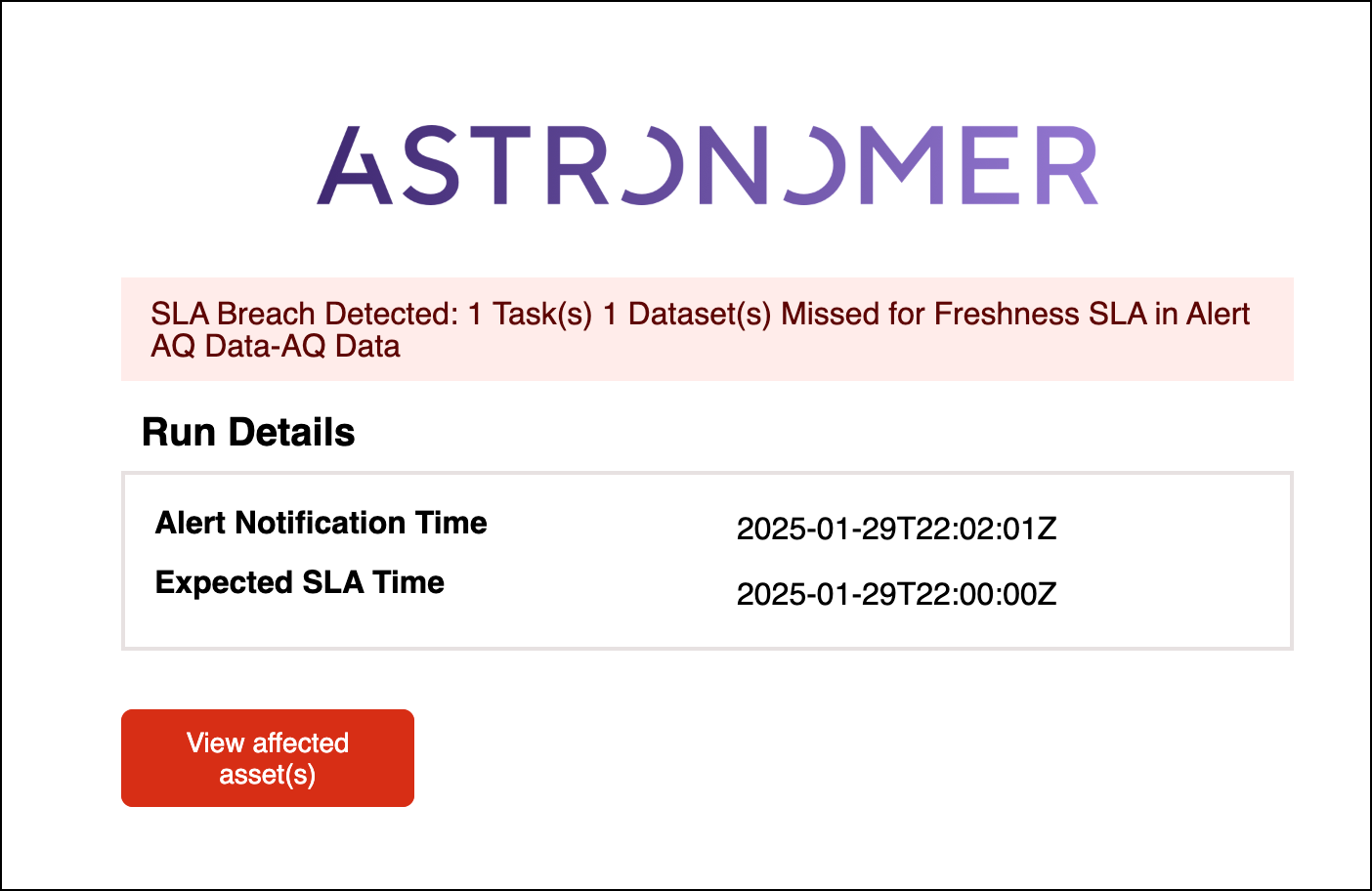

After 1 hour, you should receive an email notification that the freshness SLA has been violated.
Congrats! You have successfully set up Astro Observe to monitor several aspects of an air quality pipeline! Of course there is much more to Astro Observe, check out the Astro Observe documentation for more information.
