Create dynamic Airflow tasks

With dynamic task mapping, you can write DAGs that dynamically generate parallel tasks at runtime. This feature is a paradigm shift for DAG design in Airflow, since it allows you to create tasks based on the current runtime environment without having to change your DAG code.

In this guide, you'll learn about dynamic task mapping and complete an example implementation for a common use case.

Other ways to learn

There are multiple resources for learning about this topic. See also:

Assumed knowledge

To get the most out of this guide, you should have an understanding of:

Dynamic task concepts

The Airflow dynamic task mapping feature is based on the MapReduce programming model. Dynamic task mapping creates a single task for each input. The reduce procedure, which is optional, allows a task to operate on the collected output of a mapped task. In practice, this means that your DAG can create an arbitrary number of parallel tasks at runtime based on some input parameter (the map), and then if needed, have a single task downstream of your parallel mapped tasks that depends on their output (the reduce).

Airflow tasks have two functions available to implement the map portion of dynamic task mapping. For the task you want to map, you must pass all operator parameters through one of the following functions.

  • expand(): This function passes the parameters that you want to map. A separate parallel task is created for each input.
  • partial(): This function passes any parameters that remain constant across all mapped tasks which are generated by expand().

When mapping over multiple keyword argument sets, you need to use the function expand_kwargs() instead of expand().

In the following example, the task uses both, .partial() and .expand(), to dynamically generate three task runs.

# optionally, you can set a custom index to display in the UI (Airflow 2.9+)
map_index_template="{{ my_custom_map_index }}"
def add(x: int, y: int):

# get the current context and define the custom map index variable
from airflow.operators.python import get_current_context

context = get_current_context()
context["my_custom_map_index"] = "Input x=" + str(x)

return x + y

added_values = add.partial(y=10).expand(x=[1, 2, 3])

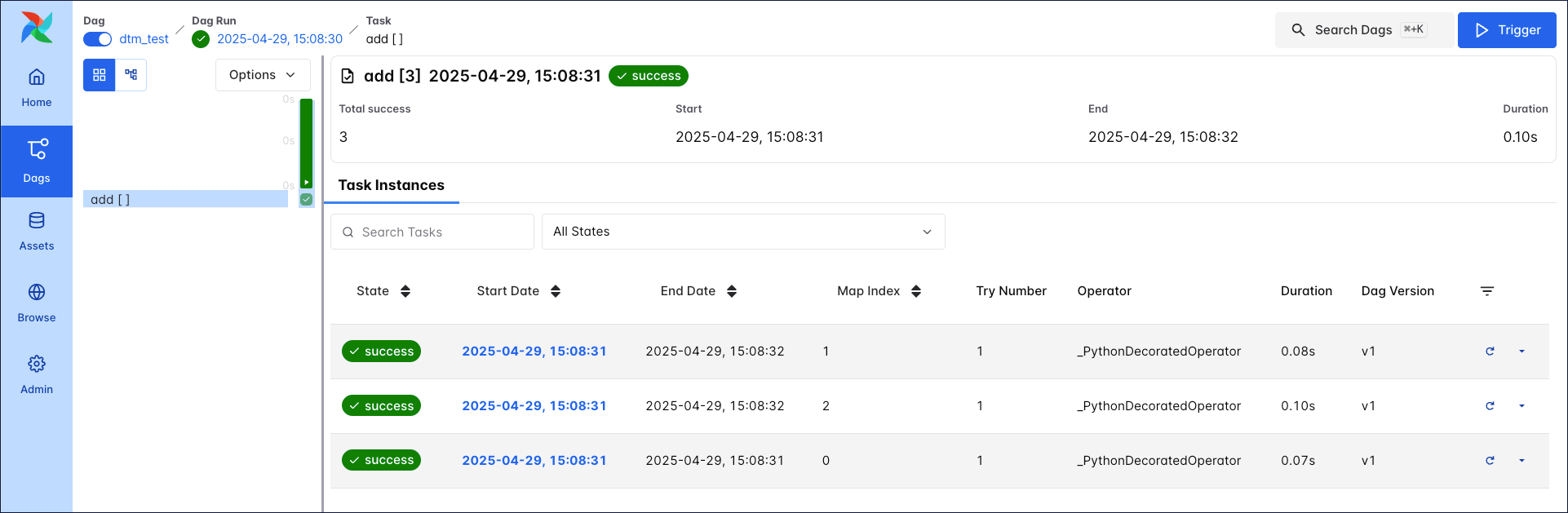

Screenshot of the Airflow UI showing three dynamically mapped task instances created with the code snippets above.


Defining the map_index_template parameter (Airflow 2.9+) is optional. If you don't set it, the default map index is used, which is an integer index starting from 0. It is a best practice to set a custom index to make it easier to identify the mapped task instances in the Airflow UI. For example, if you are mapping over a list of files, you can display the name of the file as the map_index in the Airflow UI.

This expand function creates three mapped add tasks, one for each entry in the x input list. The partial function specifies a value for y that remains constant in each task.

When you work with mapped tasks, keep the following in mind:

  • You can use the results of an upstream task as the input to a mapped task. The upstream task must return a value in a dict or list form. If you're using traditional operators and not decorated tasks, the mapping values must be stored in XComs.
  • You can map over multiple parameters.
  • You can use the results of a mapped task as input to a downstream mapped task.
  • You can have a mapped task that results in no task instances. For example, when your upstream task that generates the mapping values returns an empty list. In this case, the mapped task is marked skipped, and downstream tasks are run according to the trigger rules you set. By default, downstream tasks are also skipped.
  • Some parameters can't be mapped. For example, task_id, pool, and many BaseOperator arguments.
  • expand() only accepts keyword arguments.
  • The maximum amount of mapped task instances is determined by the max_map_length parameter in the Airflow configuration. By default it is set to 1024.
  • You can limit the number of mapped task instances for a particular task that run in parallel by setting the following parameters in your dynamically mapped task:
    • Set a limit across all DAG runs with the max_active_tis_per_dag parameter.
    • Set a limit for parallel runs within a single DAG with the max_active_tis_per_dagrun parameter.
  • XComs created by mapped task instances are stored in a list and can be accessed by using the map index of a specific mapped task instance. For example, to access the XComs created by the third mapped task instance (map index of 2) of my_mapped_task, use ti.xcom_pull(task_ids=['my_mapped_task'])[2]. The map_indexes parameter in the .xcom_pull() method allows you to specify a list of map indexes of interest (ti.xcom_pull(task_ids=['my_mapped_task'], map_indexes=[2])).

For additional examples of how to apply dynamic task mapping functions, see Dynamic Task Mapping in the official Airflow documentation.

The Airflow UI provides observability for mapped tasks in the Grid View.

Mapped tasks are identified with a set of brackets [ ] followed by the task ID. All mapped task instances are combined into one row on the grid.

The number in the brackets show in the DAG run graph, is updated for each DAG run to reflect how many mapped instances were created. The following screenshot shows a DAG run graph with two tasks, the latter having 49 dynamically mapped task instances.

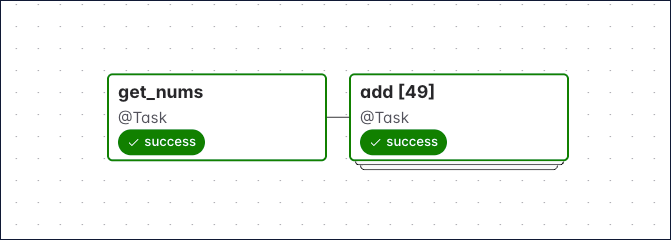

Screenshot of the Graph tab in the Airflow UI Grid view showing a DAG run graph with two tasks, the latter having been mapped 49 times.

To see the logs and XCom pushed by each dynamically mapped task instance, click on the dynamically mapped task, either in the DAG run graph or in the grid. Then click on [] Mapped Tasks and select the mapped task instance you want to inspect.

Gif showing how to navigate to the logs of an individual mapped task instance in the Airflow UI.

Mapping over the result of another operator

You can use the output of an upstream operator as the input data for a dynamically mapped downstream task.

In this section you'll learn how to pass mapping information to a downstream task for each of the following scenarios:

  • TaskFlow over TaskFlow: Both tasks are defined using the TaskFlow API.
  • TaskFlow over traditional operator: The upstream task is defined using a traditional operator and the downstream task is defined using the TaskFlow API.
  • Traditional operator over TaskFlow: The upstream task is defined using the TaskFlow API and the downstream task is defined using a traditional operator.
  • Traditional operator over traditional operator: Both tasks are defined using traditional operators.

If both tasks are defined using the TaskFlow API, you can provide a function call to the upstream task as the argument for the expand() function.

def one_two_three_TF():
return [1, 2, 3]

def plus_10_TF(x):
return x + 10


Mapping over multiple parameters

You can use one of the following methods to map over multiple parameters:

  • Cross-product: Mapping over two or more keyword arguments results in a mapped task instance for each possible combination of inputs. This type of mapping uses the expand() function.
  • Sets of keyword arguments: Mapping over two or more sets of one or more keyword arguments results in a mapped task instance for every defined set, rather than every combination of individual inputs. This type of mapping uses the expand_kwargs() function.
  • Zip: Mapping over a set of positional arguments created with Python's built-in zip() function or with the .zip() method of an XComArg results in one mapped task for every set of positional arguments. Each set of positional arguments is passed to the same keyword argument of the operator. This type of mapping uses the expand() function.


The default behavior of the expand() function is to create a mapped task instance for every possible combination of all provided inputs. For example, if you map over three keyword arguments and provide two options to the first, four options to the second, and five options to the third, you would create 2x4x5=40 mapped task instances. One common use case for this method is tuning model hyperparameters.

The following task definition maps over three options for the bash_command parameter and three options for the env parameter. This will result in 3x3=9 mapped task instances. Each bash command runs with each definition for the environment variable WORD.

cross_product_example = BashOperator.partial(
"echo $WORD", # prints the env variable WORD
"echo `expr length $WORD`", # prints the number of letters in WORD
"echo ${WORD//e/X}" # replaces each "e" in WORD with "X"
{"WORD": "hello"},
{"WORD": "tea"},
{"WORD": "goodbye"}

The nine mapped task instances of the task cross_product_example run all possible combinations of the bash command with the env variable:

  • Map index 0: hello
  • Map index 1: tea
  • Map index 2: goodbye
  • Map index 3: 5
  • Map index 4: 3
  • Map index 5: 7
  • Map index 6: hXllo
  • Map index 7: tXa
  • Map index 8: goodbyX

Sets of keyword arguments

To map over sets of inputs to two or more keyword arguments (kwargs), you can use the expand_kwargs() function. You can provide sets of parameters as a list containing a dictionary or as an XComArg. The operator gets 3 sets of commands, resulting in 3 mapped task instances.

# input sets of kwargs provided directly as a list[dict]
t1 = BashOperator.partial(task_id="t1").expand_kwargs(
{"bash_command": "echo $WORD", "env" : {"WORD": "hello"}},
{"bash_command": "echo `expr length $WORD`", "env" : {"WORD": "tea"}},
{"bash_command": "echo ${WORD//e/X}", "env" : {"WORD": "goodbye"}}

The task t1 will have three mapped task instances printing their results into the logs:

  • Map index 0: hello
  • Map index 1: 3
  • Map index 2: goodbyX


In dynamic task mapping, you can provide sets of positional arguments to the same keyword argument. For example, the op_args argument of the PythonOperator. You can use the built-in zip() Python function if your inputs are in the form of iterables such as tuples, dictionaries, or lists. If your inputs come from XCom objects, you can use the .zip() method of the XComArg object.

Provide positional arguments with the built-in Python zip()

The zip() function takes in an arbitrary number of iterables and uses their elements to create a zip-object containing tuples. There will be as many tuples as there are elements in the shortest iterable. Each tuple contains one element from every iterable provided. For example:

  • zip(["a", "b", "c"], [1, 2, 3], ["hi", "bye", "tea"]) results in a zip object containing: ("a", 1, "hi"), ("b", 2, "bye"), ("c", 3, "tea").
  • zip(["a", "b"], [1], ["hi", "bye"], [19, 23], ["x", "y", "z"]) results in a zip object containing only one tuple: ("a", 1, "hi", 19, "x"). This is because the shortest list provided only contains one element.
  • It is also possible to zip together different types of iterables. zip(["a", "b"], {"hi", "bye"}, (19, 23)) results in a zip object containing: ('a', 'hi', 19), ('b', 'bye', 23).

The following code snippet shows how a list of zipped arguments can be provided to the expand() function in order to create mapped tasks over sets of positional arguments. In the TaskFlow API version of the DAG, each set of positional arguments is passed to the argument zipped_x_y_z. In the DAG using a traditional PythonOperator each set of positional arguments is unpacked due to op_args expecting an iterable and passed to the arguments x, y and z.

# use the zip function to create three-tuples out of three lists
zipped_arguments = list(zip([1, 2, 3], [10, 20, 30], [100, 200, 300]))
# zipped_arguments contains: [(1,10,100), (2,20,200), (3,30,300)]

# creating the mapped task instances using the TaskFlow API
def add_numbers(zipped_x_y_z):
return zipped_x_y_z[0] + zipped_x_y_z[1] + zipped_x_y_z[2]


The task add_numbers will have three mapped task instances one for each tuple of positional arguments:

  • Map index 0: 111
  • Map index 1: 222
  • Map index 2: 333

Provide positional arguments with

It is also possible to zip XComArg objects. If the upstream task has been defined using the TaskFlow API, provide the function call. If the upstream task uses a traditional operator, provide task_object.output or XcomArg(task_object). In the following example, you can see the results of three tasks being zipped together to form the zipped_arguments ([(1, 10, 100), (2, 1000, 200), (1000, 1000, 300)]).

To mimic the behavior of the zip_longest() function, you can add the optional fillvalue keyword argument to the .zip() method. If you specify a default value with fillvalue, the method produces as many tuples as the longest input has elements and fills in missing elements with the default value. If fillvalue was not specified in the example below, zipped_arguments would only contain one tuple [(1, 10, 100)] since the shortest list provided to the .zip() method is only one element long.

def one_two_three():
return [1, 2]

def ten_twenty_thirty():
return [10]

def one_two_three_hundred():
return [100, 200, 300]

zipped_arguments = one_two_three().zip(
ten_twenty_thirty(), one_two_three_hundred(), fillvalue=1000
# zipped_arguments contains [(1, 10, 100), (2, 1000, 200), (1000, 1000, 300)]

# creating the mapped task instances using the TaskFlow API
def add_nums(zipped_x_y_z):
return zipped_x_y_z[0] + zipped_x_y_z[1] + zipped_x_y_z[2]


The add_nums task will have three mapped instances with the following results:

  • Map index 0: 111 (1+10+100)
  • Map index 1: 1202 (2+1000+200)
  • Map index 2: 2300 (1000+1000+300)

Repeated mapping

You can dynamically map an Airflow task over the output of another dynamically mapped task. This results in one mapped task instance for every mapped task instance of the upstream task.

The following example shows three dynamically mapped tasks.

def multiply_by_2(num):
return num * 2

def add_10(num):
return num + 10

def multiply_by_100(num):
return num * 100

multiplied_value_1 = multiply_by_2.expand(num=[1, 2, 3])
summed_value = add_10.expand(num=multiplied_value_1)

In the example above, the multiply_by_2 task is dynamically mapped over a list of three elements ([1, 2, 3]). The task has three mapped task instances containing the following values:

  • Map index 0: 2 (1*2)
  • Map index 1: 4 (2*2)
  • Map index 2: 6 (3*2)

The add_10 task is dynamically mapped over the output of the multiply_by_2 task. It has 3 mapped task instances (one for each mapped instance of the previous task) which contain the following values:

  • Map index 0: 12 (2+10)
  • Map index 1: 14 (4+10)
  • Map index 2: 16 (6+10)

The multiply_by_100 task is dynamically mapped over the output of the add_10 task, which results in three mapped task instances with the following outputs:

  • Map index 0: 1200 (12*100)
  • Map index 1: 1400 (14*100)
  • Map index 2: 1600 (16*100)

You can chain an arbitrary number of dynamically mapped tasks in this manner. It is currently not possible to exponentially increase the number of mapped task instances.

Mapping over task groups

Task groups defined with the @task_group decorator can be dynamically mapped as well. The syntax for dynamically mapping over a task group is the same as dynamically mapping over a single task.

# creating a task group using the decorator with the dynamic input my_num
def tg1(my_num):
def print_num(num):
return num

def add_42(num):
return num + 42

print_num(my_num) >> add_42(my_num)

# creating 6 mapped task group instances of the task group group1
tg1_object = tg1.expand(my_num=[19, 23, 42, 8, 7, 108])

You can also dynamically map over multiple task group input parameters as you would for regular tasks using a cross-product, zip function, or sets of keyword arguments. For more on this, see Mapping over multiple parameters.

Transform outputs with .map

There are use cases where you want to transform the output of an upstream task before another task dynamically maps over it. For example, if the upstream traditional operator returns its output in a fixed format or if you want to skip certain mapped task instances based on a logical condition.

The .map() method accepts a Python function and uses it to transform an iterable input before a task dynamically maps over it.

You can call .map() directly on a task using the TaskFlow API (my_upstream_task_flow_task().map(mapping_function)) or on the output object of a traditional operator (

The downstream task is dynamically mapped over the object created by the .map() method using either .expand() for a single keyword argument or .expand_kwargs() for list of dictionaries containing sets of keyword arguments.

The code snippet below shows how to use .map() to skip specific mapped tasks based on a logical condition.

  • list_strings is the upstream task returning a list of strings. -skip_strings_starting_with_skip transforms a list of strings into a list of modified strings and AirflowSkipExceptions. In this DAG, the function transforms list_strings into a new list called transformed_list. This function will not appear as an Airflow task.
  • mapped_printing_task dynamically maps over the transformed_list object.
# an upstream task returns a list of outputs in a fixed format
def list_strings():
return ["skip_hello", "hi", "skip_hallo", "hola", "hey"]

# the function used to transform the upstream output before
# a downstream task is dynamically mapped over it
def skip_strings_starting_with_skip(string):
if len(string) < 4:
return string + "!"
elif string[:4] == "skip":
raise AirflowSkipException(f"Skipping {string}; as I was told!")
return string + "!"

# transforming the output of the first task with the map function.
transformed_list = list_strings().map(skip_strings_starting_with_skip)

# the task using dynamic task mapping on the transformed list of strings
def mapped_printing_task(string):
return "Say " + string

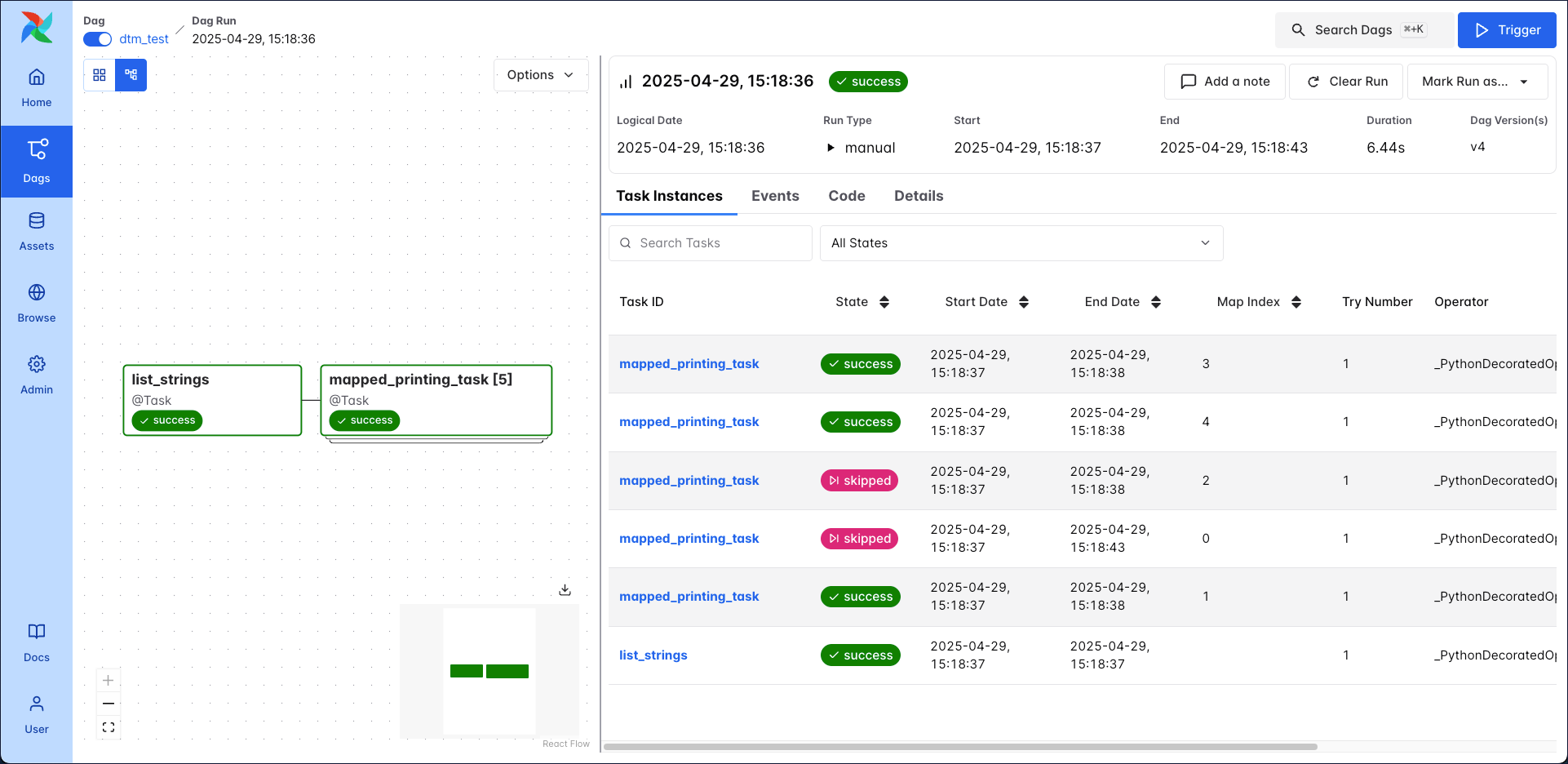

In the [] Mapped Tasks tab, you can see how the mapped task instances 0 and 2 have been skipped.

Skipped Mapped Tasks

Example implementation

For this example, you'll implement one of the most common use cases for dynamic tasks: processing files in Amazon S3. In this scenario, you'll use an ELT framework to extract data from files in Amazon S3, load the data into Snowflake, and transform the data using Snowflake's built-in compute. It's assumed that the files will be dropped daily, but it's unknown how many will arrive each day. You'll leverage dynamic task mapping to create a unique task for each file at runtime. This gives you the benefit of atomicity, better observability, and easier recovery from failures.

All code used in this example is located in the dynamic-task-mapping-tutorial repository.

The example DAG completes the following steps:

  • Use a decorated Python operator to get the current list of files from Amazon S3. The Amazon S3 prefix passed to this function is parameterized with ds_nodash so it pulls files only for the execution date of the DAG run. For example, for a DAG run on April 12th, you assume the files landed in a folder named 20220412/.
  • Use the results of the first task, map an S3ToSnowflakeOperator for each file.
  • Move the daily folder of processed files into a processed/ folder while,
  • Simultaneously runs a Snowflake query that transforms the data. The query is located in a separate SQL file in our include/ directory.
  • Deletes the folder of daily files now that it has been moved to processed/ for record keeping.
from airflow.decorators import dag, task
from airflow.providers.snowflake.transfers.copy_into_snowflake import (
from airflow.providers.snowflake.operators.snowflake import SnowflakeOperator
from import S3Hook
from import S3CopyObjectOperator
from import S3DeleteObjectsOperator

from pendulum import datetime

start_date=datetime(2024, 4, 2),
def mapping_elt():

def get_s3_files(current_prefix):
s3_hook = S3Hook(aws_conn_id="s3")

current_files = s3_hook.list_keys(
prefix=current_prefix + "/",
start_after_key=current_prefix + "/",

return [[file] for file in current_files]

copy_to_snowflake = CopyFromExternalStageToSnowflakeOperator.partial(
file_format="(type = 'CSV',field_delimiter = ',', skip_header=1)",
).expand(files=get_s3_files(current_prefix="{{ ds_nodash }}"))

move_s3 = S3CopyObjectOperator(
source_bucket_key="{{ ds_nodash }}" + "/",
dest_bucket_key="processed/" + "{{ ds_nodash }}" + "/",

delete_landing_files = S3DeleteObjectsOperator(
prefix="{{ ds_nodash }}" + "/",

transform_in_snowflake = SnowflakeOperator(

copy_to_snowflake >> [move_s3, transform_in_snowflake]
move_s3 >> delete_landing_files

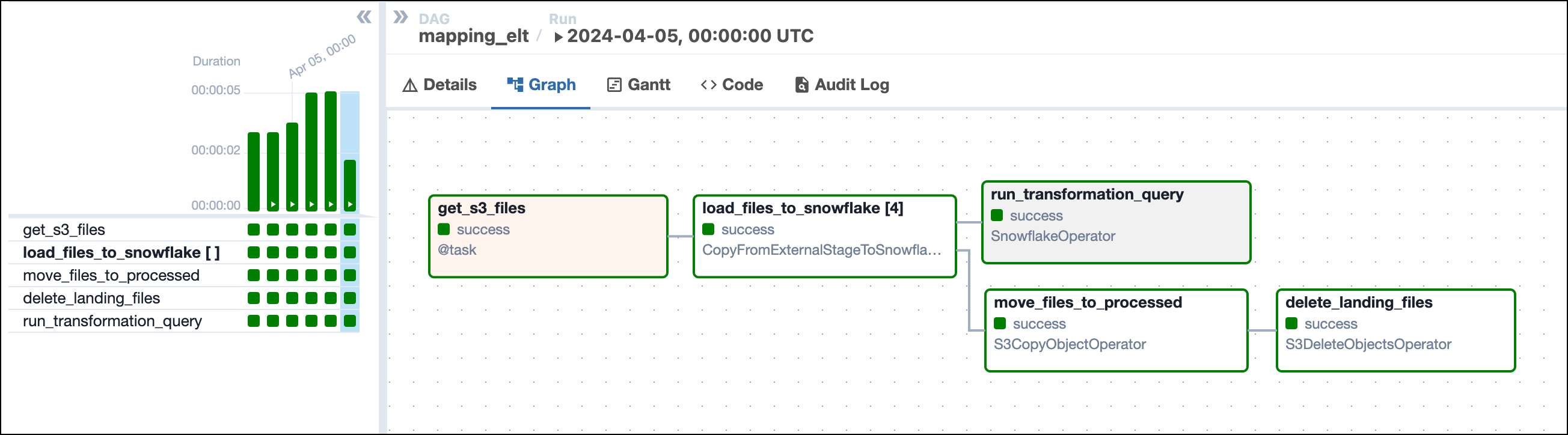

The graph of this DAG looks similar to this image:

ELT Graph

When dynamically mapping tasks, make note of the format needed for the parameter you are mapping. In the previous example, you wrote your own Python function to get the Amazon S3 keys because the S3toSnowflakeOperator requires each s3_key parameter to be in a list format, and the s3_hook.list_keys function returns a single list with all keys. By writing your own simple function, you can turn the hook results into a list of lists that can be used by the downstream operator.

Was this page helpful?

Sign up for Developer Updates

Get a summary of new Astro features once a month.

You can unsubscribe at any time.
By proceeding you agree to our Privacy Policy, our Website Terms and to receive emails from Astronomer.
