Orchestrate OpenAI operations with Apache Airflow

Info

This page has not yet been updated for Airflow 3. The concepts shown are relevant, but some code may need to be updated. If you run any examples, take care to update import statements and watch for any other breaking changes.

OpenAI is an AI research and deployment company that provides an API for accessing state of the art models like GPT-4 and DALL·E 3. The OpenAI Airflow provider offers modules to easily integrate OpenAI with Airflow.

In this tutorial you’ll use Airflow and the OpenAI Airflow provider to ask a question to Star Trek captains, create embeddings of the answers from each captain, and plot them in two dimensions.

Why use Airflow with OpenAI?

OpenAI offers a variety of powerful model endpoints for different tasks like text generation, vector embedding, and translation tasks. These models are used in both user-facing applications, such as chatbots, and internal applications, such as a smart search for internal knowledge base content.

Integrating OpenAI with Airflow into an end-to-end machine learning pipeline allows you to:

• Use Airflow’s data-driven scheduling to run operations using OpenAI model endpoints based on upstream events in your data ecosystem, such as when new user input is ingested or a new dataset is available.
• Send several requests to a model endpoint in parallel based on upstream events in your data ecosystem or user input via Airflow params.
• Monitor the OpenAI service using Airflow alerts and protect against API rate limits and outages with Airflow retries.
• Use Airflow to orchestrate the creation of vector embeddings using OpenAI models, which is especially useful for large datasets that can’t be processed automatically by vector databases.

Time to complete

This tutorial takes approximately 15 minutes to complete.

Assumed knowledge

To get the most out of this tutorial, make sure you have an understanding of:

• The basics of the OpenAI API. See OpenAI Introduction.
• The basics of vector embeddings. See the OpenAI Embeddings guide.
• Airflow fundamentals, such as writing DAGs and defining tasks. See Get started with Apache Airflow.
• Airflow operators. See Operators 101.
• Airflow hooks. See Hooks 101.

Prerequisites

• The Astro CLI.
• An OpenAI API key with at least tier 1 usage limits.

Step 1: Configure your Astro project

1. Create a new Astro project:

   1
   $ mkdir astro-openai-tutorial && cd astro-openai-tutorial
   2
   $ astro dev init

2. Add the following lines to your requirements.txt file to install the OpenAI Airflow provider and other supporting packages:

   apache-airflow-providers-openai==1.0.0
   openai==0.28.1
   matplotlib==3.8.1
   seaborn==0.13.0
   scikit-learn==1.3.2
   pandas==1.5.3
   numpy==1.26.2
   adjustText==0.8

3. To create an Airflow connection to OpenAI, add the following environment variables to your .env file. Make sure to replace <your-openai-api-key> with your own OpenAI API key.

   AIRFLOW_CONN_OPENAI_DEFAULT='{
       "conn_type": "openai",
       "password": "<your-openai-api-key>"
   }'

Step 2: Create your DAG

1. In your dags folder, create a file called captains_dag.py.

2. Copy the following code into the file.

   1
   """
   2
   ## Ask questions to Star Trek captains using OpenAI's LLMs, embed and visualize the results
   3
   4
   This DAG shows how to use the OpenAI Airflow provider to interact with the OpenAI API.
   5
   The DAG asks a question to a list of Star Trek captains based on values you provide via
   6
   Airflow params, embeds the responses using the OpenAI text-embedding-ada-002 model,
   7
   and visualizes the embeddings in 2 dimensions using PCA, matplotlib and seaborn.
   8
   """
   9
   10
   from airflow.decorators import dag, task
   11
   from airflow.models.param import Param
   12
   from airflow.models.baseoperator import chain
   13
   from airflow.providers.openai.hooks.openai import OpenAIHook
   14
   from airflow.providers.openai.operators.openai import OpenAIEmbeddingOperator
   15
   from sklearn.metrics.pairwise import euclidean_distances
   16
   from sklearn.decomposition import PCA
   17
   from adjustText import adjust_text
   18
   from pendulum import datetime
   19
   import matplotlib.pyplot as plt
   20
   import seaborn as sns
   21
   import pandas as pd
   22
   import numpy as np
   23
   import openai
   24
   25
   26
   OPENAI_CONN_ID = "openai_default"
   27
   IMAGE_PATH = "include/captains_plot.png"
   28
   29
   star_trek_captains_list = [
   30
       "James T. Kirk",
   31
       "Jean-Luc Picard",
   32
       "Benjamin Sisko",
   33
       "Kathryn Janeway",
   34
       "Jonathan Archer",
   35
       "Christopher Pike",
   36
       "Michael Burnham",
   37
       "Saru",
   38
   ]
   39
   40
   41
   @dag(
   42
       start_date=datetime(2023, 11, 1),
   43
       schedule=None,
   44
       catchup=False,
   45
       params={
   46
           "question": Param(
   47
               "Which is your favorite ship?",
   48
               type="string",
   49
               title="Question to ask the captains",
   50
               description="Enter what you would like to ask the captains.",
   51
               min_length=1,
   52
               max_length=500,
   53
           ),
   54
           "captains_to_ask": Param(
   55
               star_trek_captains_list,
   56
               type="array",
   57
               description="List the captains whose answers you would like to compare. "
   58
               + "Suggestions: "
   59
               + ", ".join(star_trek_captains_list),
   60
           ),
   61
           "max_tokens_answer": Param(
   62
               100,
   63
               type="integer",
   64
               description="Maximum number of tokens to generate for the answer.",
   65
           ),
   66
           "randomness_of_answer": Param(
   67
               10,
   68
               type="integer",
   69
               description=(
   70
                   "Enter the desired randomness of the answer on a scale"
   71
                   + "from 0 (no randomness) to 20 (full randomness). "
   72
                   + "This setting corresponds to 10x the temperature setting in the OpenAI API."
   73
               ),
   74
               min=0,
   75
               max=20,
   76
           ),
   77
       },
   78
   )
   79
   def captains_dag():
   80
       @task
   81
       def get_captains_list(**context):
   82
           "Pull the list of captains to ask from the context."
   83
           captains_list = context["params"]["captains_to_ask"]
   84
           return captains_list
   85
   86
       @task
   87
       def ask_a_captain(open_ai_conn_id: str, captain_to_ask, **context):
   88
           "Ask a captain a question using gpt-3.5-turbo."
   89
           question = context["params"]["question"]
   90
           max_tokens_answer = context["params"]["max_tokens_answer"]
   91
           randomness_of_answer = context["params"]["randomness_of_answer"]
   92
           hook = OpenAIHook(conn_id=open_ai_conn_id)
   93
           openai.api_key = hook._get_api_key()
   94
   95
           response = openai.ChatCompletion.create(
   96
               model="gpt-3.5-turbo",
   97
               messages=[
   98
                   {"role": "system", "content": f"You are captain {captain_to_ask}."},
   99
                   {"role": "user", "content": question},
   100
               ],
   101
               temperature=randomness_of_answer / 10,
   102
               max_tokens=max_tokens_answer,
   103
           )
   104
   105
           response = response.choices[0]["message"]["content"]
   106
   107
           print(f"Your Question: {question}")
   108
           print(f"Captain {captain_to_ask} said: {response}")
   109
   110
           return response
   111
   112
       captains_list = get_captains_list()
   113
       captain_responses = ask_a_captain.partial(open_ai_conn_id=OPENAI_CONN_ID).expand(
   114
           captain_to_ask=captains_list
   115
       )
   116
   117
       get_embeddings = OpenAIEmbeddingOperator.partial(
   118
           task_id="get_embeddings",
   119
           conn_id=OPENAI_CONN_ID,
   120
           model="text-embedding-ada-002",
   121
       ).expand(input_text=captain_responses)
   122
   123
       @task
   124
       def plot_embeddings(embeddings, text_labels, file_name="embeddings_plot.png"):
   125
           "Plot the embeddings of the captain responses."
   126
           pca = PCA(n_components=2)
   127
           reduced_embeddings = pca.fit_transform(embeddings)
   128
   129
           plt.figure(figsize=(10, 8))
   130
           df_embeddings = pd.DataFrame(reduced_embeddings, columns=["PC1", "PC2"])
   131
           sns.scatterplot(
   132
               df_embeddings, x="PC1", y="PC2", s=100, color="gold", edgecolor="black"
   133
           )
   134
   135
           font_style = {"color": "black"}
   136
           texts = []
   137
           for i, label in enumerate(text_labels):
   138
               texts.append(
   139
                   plt.text(
   140
                       reduced_embeddings[i, 0],
   141
                       reduced_embeddings[i, 1],
   142
                       label,
   143
                       fontdict=font_style,
   144
                       fontsize=15,
   145
                   )
   146
               )
   147
   148
           # prevent overlapping labels
   149
           adjust_text(texts, arrowprops=dict(arrowstyle="->", color="red"))
   150
   151
           distances = euclidean_distances(reduced_embeddings)
   152
           np.fill_diagonal(distances, np.inf)  # exclude cases where the distance is 0
   153
   154
           n = distances.shape[0]
   155
           distances_list = [
   156
               (distances[i, j], (i, j)) for i in range(n) for j in range(i + 1, n)
   157
           ]
   158
   159
           distances_list.sort(reverse=True)
   160
   161
           legend_handles = []
   162
           for dist, (i, j) in distances_list:
   163
               (line,) = plt.plot(
   164
                   [reduced_embeddings[i, 0], reduced_embeddings[j, 0]],
   165
                   [reduced_embeddings[i, 1], reduced_embeddings[j, 1]],
   166
                   "gray",
   167
                   linestyle="--",
   168
                   alpha=0.3,
   169
               )
   170
               legend_handles.append(line)
   171
   172
           legend_labels = [
   173
               f"{text_labels[i]} - {text_labels[j]}: {dist:.2f}"
   174
               for dist, (i, j) in distances_list
   175
           ]
   176
   177
           for i in range(len(reduced_embeddings)):
   178
               for j in range(i + 1, len(reduced_embeddings)):
   179
                   plt.plot(
   180
                       [reduced_embeddings[i, 0], reduced_embeddings[j, 0]],
   181
                       [reduced_embeddings[i, 1], reduced_embeddings[j, 1]],
   182
                       "gray",
   183
                       linestyle="--",
   184
                       alpha=0.5,
   185
                   )
   186
   187
           plt.legend(
   188
               legend_handles,
   189
               legend_labels,
   190
               title="Distances",
   191
               loc="center left",
   192
               bbox_to_anchor=(1, 0.5),
   193
           )
   194
   195
           plt.tight_layout()
   196
           plt.title(
   197
               "2D Visualization of captain responses", fontsize=16, fontweight="bold"
   198
           )
   199
           plt.xlabel("PCA Component 1", fontdict=font_style)
   200
           plt.ylabel("PCA Component 2", fontdict=font_style)
   201
   202
           plt.savefig(file_name, bbox_inches="tight")
   203
           plt.close()
   204
   205
       chain(
   206
           get_embeddings,
   207
           plot_embeddings(
   208
               get_embeddings.output,
   209
               text_labels=captains_list,
   210
               file_name=IMAGE_PATH,
   211
           ),
   212
       )
   213
   214
   215
   captains_dag()

   This DAG consists of four tasks to make a simple MLOps pipeline.

   • The get_captains_list task fetches the list of Star Trek captains you want to ask your question to. You’ll provide the list of captains when you run the DAG with Airflow params.
   • The ask_a_captain task uses the OpenAIHook to connect to the OpenAI API. It then uses the chat completion endpoint to generate answers to the question you provide. This task is dynamically mapped over the list of captains to generate one dynamically mapped task instance per captain.
   • The get_embeddings task is defined using the OpenAIEmbeddingOperator to generate vector embeddings of the answers generated by the upstream ask_a_captain task. This task is dynamically mapped over the list of answers to retrieve one set of embeddings per answer. This pattern allows for efficient parallelization of the vector embedding generation.
   • The plot_embeddings task takes the embeddings created by the upstream task and performs dimensionality reduction using PCA to plot the embeddings in two dimensions.



Step 3: Run your DAG

1. Run astro dev start in your Astro project to start Airflow, then open the Airflow UI at localhost:8080.

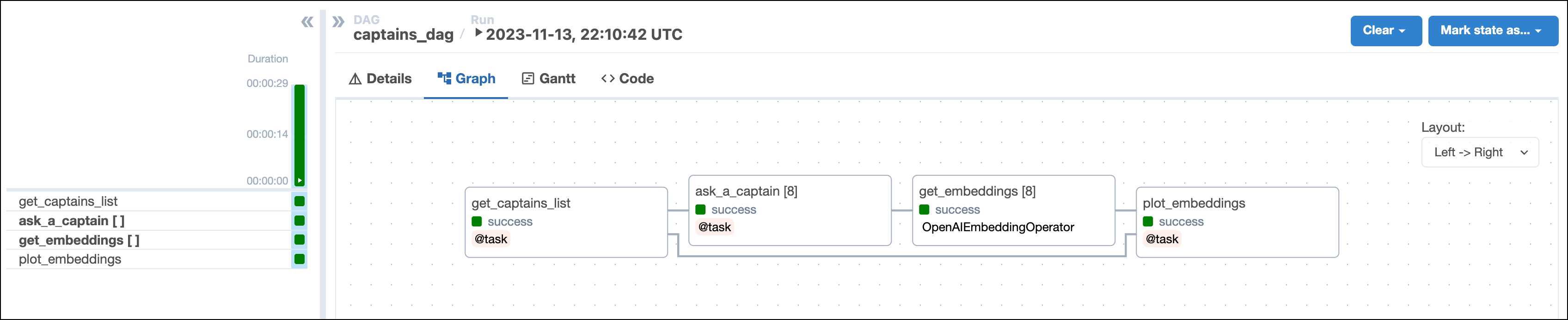

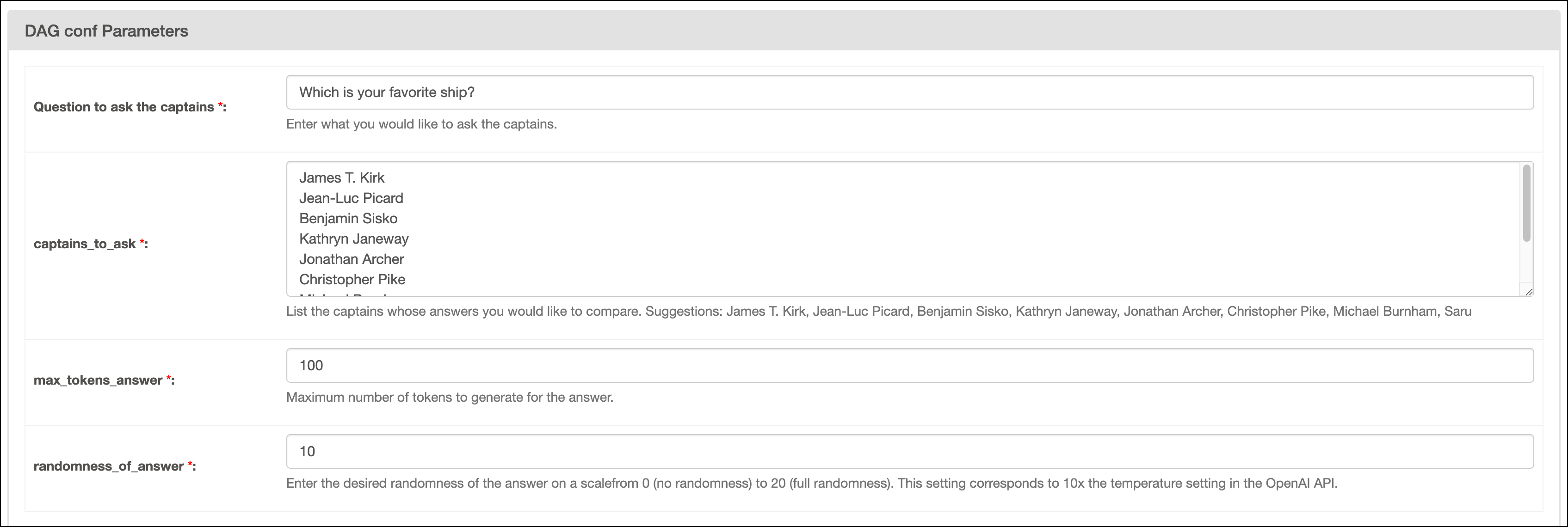

2. In the Airflow UI, run the captains_dag DAG by clicking the play button. Then, provide Airflow params for:

   • Question to ask the captain: The question you want to ask the captains.
   • captains_to_ask: A list of Star Trek captains you want to ask the question to. Make sure to create one line per captain and to provide at least two names.
   • max_tokens_answer: The maximum number of tokens available for the answer.
   • randomness_of_answer: The randomness of the answer. The value provided is divided by 10 and given to the temperature parameter of the chat completion endpoint. The scale for the param ranges from 0 to 20, with 0 being the most deterministic and 20 being the most random.

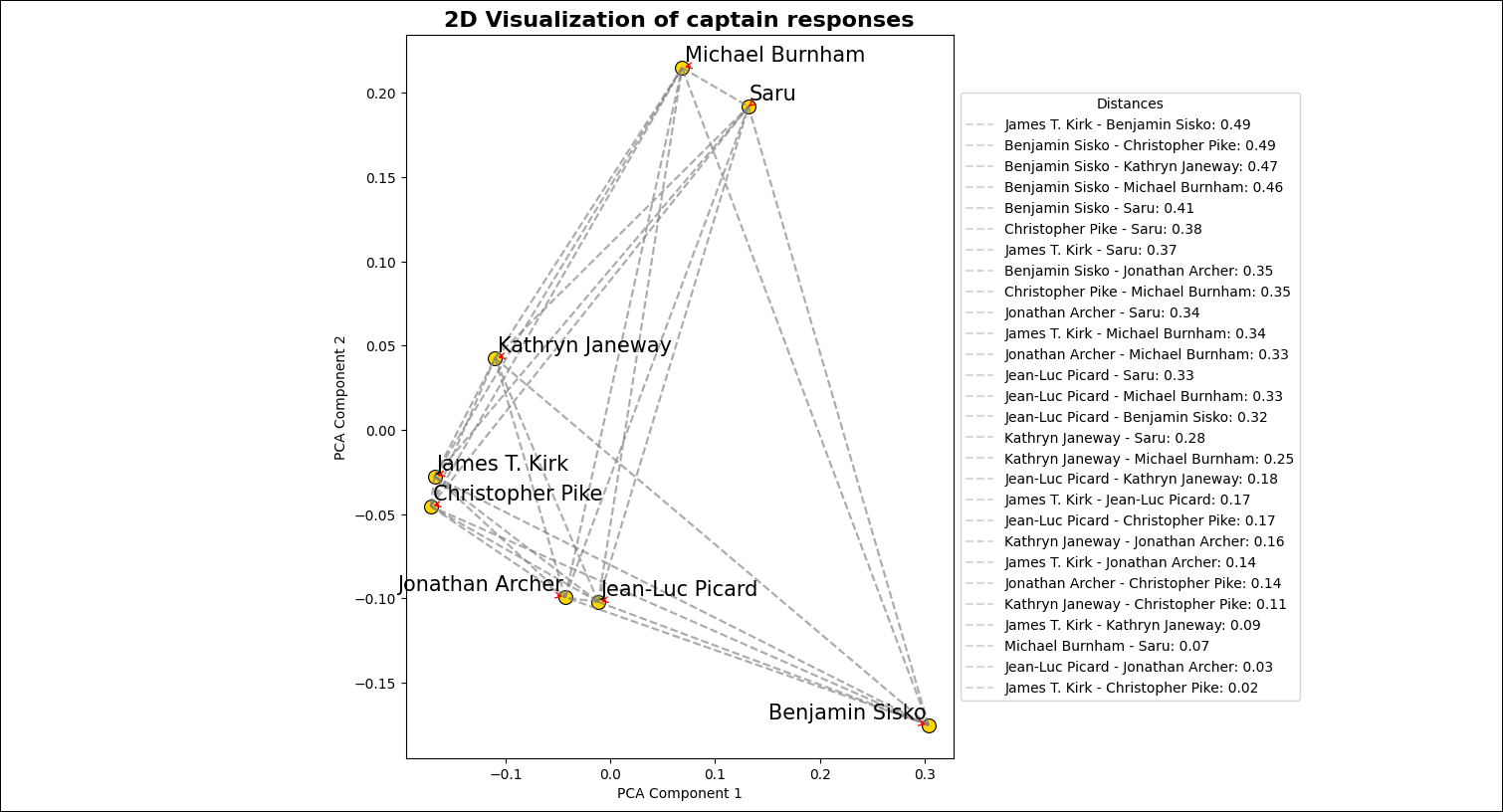

3. After the DAG run completed, go to the include folder to view the image file created by the plot_embeddings task. The image should look similar to the one below.



Conclusion

Congratulations! You used Airflow and OpenAI to get answers from your favorite Star Trek captains and compare them visually. You can now use Airflow to orchestrate OpenAI operations in your own machine learning pipelines. 🖖
