Orchestrate Pinecone operations with Apache Airflow

Pinecone is a proprietary vector database platform designed for handling large-scale vector based AI applications. The Pinecone Airflow provider offers modules to easily integrate Pinecone with Airflow.

In this tutorial you'll use Airflow to create vector embeddings of series descriptions, create an index in your Pinecone project, ingest the vector embeddings into that index, and query Pinecone to get a suggestion for your next binge-watchable series based on your current mood.

Why use Airflow with Pinecone?​

Integrating Pinecone with Airflow provides a robust solution for managing large-scale vector search workflows in your AI applications. Pinecone specializes in efficient vector storage and similarity search, which is essential for leveraging advanced models like language transformers or deep neural networks.

By combining Pinecone with Airflow, you can:

• Use Airflow's data-driven scheduling to run operations in Pinecone based on upstream events in your data ecosystem, such as when a new model is trained or a new dataset is available.
• Run dynamic queries with dynamic task mapping, for example to parallelize vector ingestion or search operations to improve performance.
• Add Airflow features like retries and alerts to your Pinecone operations. Retries protect your MLOps pipelines from transient failures, and alerts notify you of events like task failures or missed service level agreements (SLAs).

Time to complete​

This tutorial takes approximately 30 minutes to complete.

Assumed knowledge​

To get the most out of this tutorial, make sure you have an understanding of:

• The basics of Pinecone. See Pinecone Introduction.
• The basics of vector embeddings. See Vector Embeddings for Developers: The Basics.
• Airflow fundamentals, such as writing DAGs and defining tasks. See Get started with Apache Airflow.
• Airflow decorators. See Introduction to the TaskFlow API and Airflow decorators.
• Airflow operators. See Operators 101.
• Airflow hooks. See Hooks 101.

Prerequisites​

• The Astro CLI.
• A Pinecone account with an API key. You can use a free tier account for this tutorial.
• An OpenAI API key of at least tier 1 if you want to use OpenAI for vectorization. If you do not want to use OpenAI you can adapt the create_embeddings function at the start of the DAG to use a different vectorizer. Note that you will likely need to adjust the EMBEDDING_MODEL_DIMENSIONS parameter in the DAG if you use a different vectorizer.

Step 1: Configure your Astro project​

1. Create a new Astro project:

   $ mkdir astro-pinecone-tutorial && cd astro-pinecone-tutorial
   $ astro dev init


2. Add the following two lines to your requirements.txt file to install the Pinecone Airflow Provider and OpenAI Python client in your Astro project:

   apache-airflow-providers-pinecone==1.0.0
   openai==1.3.2


3. Add the following environment variables to your Astro project .env file. These variables store the configuration for an Airflow connection to your Pinecone account and allow you to use the OpenAI API. Provide your own values for <your-pinecone-environment> (for example gcp-starter), <your-pinecone-api-key> and <your-openai-api-key>:

   AIRFLOW_CONN_PINECONE_DEFAULT='{
       "conn_type": "pinecone",
       "login": "<your-pinecone-environment>",
       "password": "<your-pinecone-api-key>"
   }'
   OPENAI_API_KEY="<your-openai-api-key>"


Step 2: Add your data​

The DAG in this tutorial runs a query on vectorized series descriptions, which were mostly retrieved from IMDB with added domain expert inputs.

1. In your Astro project include directory, create a file called series_data.txt.

2. Copy and paste the following text into the file:

   1 ::: Star Trek: Discovery (2017) ::: sci-fi ::: Ten years before Kirk, Spock, and the Enterprise, the USS Discovery discovers new worlds and lifeforms using a new innovative mushroom based propulsion system.
   2 ::: Feel Good (2020) ::: romance ::: The series follows recovering addict and comedian Mae, who is trying to control the addictive behaviors and intense romanticism that permeate every facet of their life.
   3 ::: For All Mankind (2019) ::: sci-fi ::: The series dramatizes an alternate history depicting "what would have happened if the global space race had never ended" after the Soviet Union succeeds in the first crewed Moon landing ahead of the United States.
   4 ::: The Legend of Korra (2012) ::: anime ::: Avatar Korra fights to keep Republic City safe from the evil forces of both the physical and spiritual worlds.
   5 ::: Mindhunter (2017) ::: crime ::: In the late 1970s, two FBI agents broaden the realm of criminal science by investigating the psychology behind murder and end up getting too close to real-life monsters.
   6 ::: The Umbrella Academy (2019) ::: adventure ::: A family of former child heroes, now grown apart, must reunite to continue to protect the world.
   7 ::: Star Trek: Picard (2020) ::: sci-fi ::: Follow-up series to Star Trek: The Next Generation (1987) and Star Trek: Nemesis (2002) that centers on Jean-Luc Picard in the next chapter of his life.
   8 ::: Invasion (2021) ::: sci-fi ::: Earth is visited by an alien species that threatens humanity's existence. Events unfold in real time through the eyes of five ordinary people across the globe as they struggle to make sense of the chaos unraveling around them.


Step 3: Create your DAG​

1. In your Astro project dags folder, create a file called query_series_vectors.py.

2. Copy the following code into the file:

   """
   ## Use the Pinecone Airflow Provider to generate and query vectors for series descriptions

   This DAG runs a simple MLOps pipeline that uses the Pinecone Airflow Provider to import
   series descriptions, generate vectors for them, and query the vectors for series based on
   a user-provided mood.
   """

   from airflow.decorators import dag, task
   from airflow.models.param import Param
   from airflow.models.baseoperator import chain
   from airflow.providers.pinecone.operators.pinecone import PineconeIngestOperator
   from airflow.providers.pinecone.hooks.pinecone import PineconeHook
   from pendulum import datetime
   from openai import OpenAI
   import uuid
   import re
   import os

   PINECONE_INDEX_NAME = "series-to-watch"
   DATA_FILE_PATH = "include/series_data.txt"
   PINECONE_CONN_ID = "pinecone_default"
   EMBEDDING_MODEL = "text-embedding-ada-002"
   EMBEDDING_MODEL_DIMENSIONS = 1536


   def generate_uuid5(identifier: list) -> str:
       "Create a UUID5 from a list of strings and return the uuid as a string."
       name = "/".join([str(i) for i in identifier])
       namespace = uuid.NAMESPACE_DNS
       uuid_obj = uuid.uuid5(namespace=namespace, name=name)
       return str(uuid_obj)


   def create_embeddings(text: str, model: str) -> list:
       """Create embeddings for a text with the OpenAI API."""
       client = OpenAI(api_key=os.environ["OPENAI_API_KEY"])
       response = client.embeddings.create(input=text, model=model)
       embeddings = response.data[0].embedding

       return embeddings


   @dag(
       start_date=datetime(2023, 10, 18),
       schedule=None,
       catchup=False,
       tags=["Pinecone"],
       params={"series_mood": Param("A series about astronauts.", type="string")},
   )
   def query_series_vectors():
       @task
       def import_data_func(text_file_path: str) -> list:
           "Import data from a text file and return it as a list of dicts."
           with open(text_file_path, "r") as f:
               lines = f.readlines()
               num_skipped_lines = 0
               descriptions = []
               data = []
               for line in lines:
                   parts = line.split(":::")
                   title_year = parts[1].strip()
                   match = re.match(r"(.+) \((\d{4})\)", title_year)
                   try:
                       title, year = match.groups()
                       year = int(year)
                   except:
                       num_skipped_lines += 1
                       continue

                   genre = parts[2].strip()
                   description = parts[3].strip()
                   descriptions.append(description)
                   data.append(
                       {
                           "id": generate_uuid5(
                               identifier=[title, year, genre, description]
                           ),  # an `id` property is required for Pinecone
                           "metadata": {
                               "title": title,
                               "year": year,
                               "genre": genre,
                               "description": description,  # this is the text we'll embed
                           },
                       }
                   )

           return data

       series_data = import_data_func(text_file_path=DATA_FILE_PATH)

       @task
       def vectorize_series_data(series_data: dict, model: str) -> dict:
           "Create embeddings for the series descriptions."
           response = create_embeddings(
               text=series_data["metadata"]["description"], model=model
           )

           series_data["values"] = response

           return series_data

       vectorized_data = vectorize_series_data.partial(model=EMBEDDING_MODEL).expand(
           series_data=series_data
       )

       @task
       def vectorize_user_mood(model: str, **context) -> list:
           "Create embeddings for the user mood."
           user_mood = context["params"]["series_mood"]
           response = create_embeddings(text=user_mood, model=model)

           return response

       @task
       def create_index_if_not_exists(
           index_name: str, vector_size: int, pinecone_conn_id: str
       ) -> None:
           "Create a Pinecone index of the provided name if it doesn't already exist."
           hook = PineconeHook(conn_id=pinecone_conn_id)
           existing_indexes = hook.list_indexes()
           if index_name not in existing_indexes:
               newindex = hook.create_index(index_name=index_name, dimension=vector_size)
               return newindex
           else:
               print(f"Index {index_name} already exists")

       create_index_if_not_exists_obj = create_index_if_not_exists(
           vector_size=EMBEDDING_MODEL_DIMENSIONS,
           index_name=PINECONE_INDEX_NAME,
           pinecone_conn_id=PINECONE_CONN_ID,
       )

       pinecone_vector_ingest = PineconeIngestOperator(
           task_id="pinecone_vector_ingest",
           conn_id=PINECONE_CONN_ID,
           index_name=PINECONE_INDEX_NAME,
           input_vectors=vectorized_data,
       )

       @task
       def query_pinecone(
           index_name: str,
           pinecone_conn_id: str,
           vectorized_user_mood: list,
       ) -> None:
           "Query the Pinecone index with the user mood and print the top result."
           hook = PineconeHook(conn_id=pinecone_conn_id)

           query_response = hook.query_vector(
               index_name=index_name,
               top_k=1,
               include_values=True,
               include_metadata=True,
               vector=vectorized_user_mood,
           )

           print("You should watch: " + query_response["matches"][0]["metadata"]["title"])
           print("Description: " + query_response["matches"][0]["metadata"]["description"])

       query_pinecone_obj = query_pinecone(
           index_name=PINECONE_INDEX_NAME,
           pinecone_conn_id=PINECONE_CONN_ID,
           vectorized_user_mood=vectorize_user_mood(model=EMBEDDING_MODEL),
       )

       chain(
           create_index_if_not_exists_obj,
           pinecone_vector_ingest,
           query_pinecone_obj,
       )


   query_series_vectors()

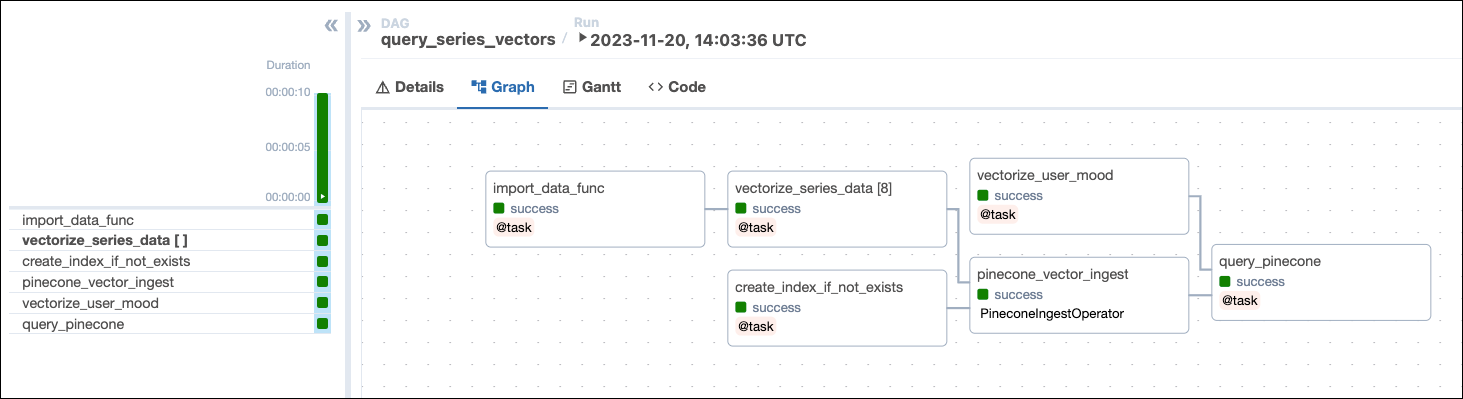

   This DAG consists of six tasks to make a simple ML orchestration pipeline.

   • The import_data_func task defined with the @task decorator reads the data from the series_data.txt file and returns a list of dictionaries containing the series title, year, genre, and description. Note that the task will create a UUID for each series using the create_uuid function and add it to the id key. Having a unique ID for each series is required for the Pinecone ingestion task.
   • The vectorize_series_data task is a dynamic task that creates one mapped task instance for each series in the list returned by the import_data_func task. The task uses the create_embeddings function to generate vector embeddings for each series' description. Note that if you want to use a different vectorizer than OpenAI's text-embedding-ada-002 you can adjust this function to return your preferred vectors and set the EMBEDDING_MODEL_DIMENSIONS parameter in the DAG to the vector size of your model.
   • The vectorize_user_mood task calls the create_embeddings function to generate vector embeddings for the mood the user can provide as an Airflow param.
   • The create_index_if_not_exists task uses the PineconeHook to connect to your Pinecone instance and retrieve the current list of indexes in your Pinecone environment. If no index of the name PINECONE_INDEX_NAME exists yet, the task will create it. Note that with a free tier Pinecone account you can only have one index.
   • The pinecone_vector_ingest task uses the PineconeIngestOperator to ingest the vectorized series data into the index created by the create_index_if_not_exists task.
   • The query_pinecone task performs a vector search in Pinecone to get the series most closely matching the user-provided mood and prints the result to the task logs.



Step 4: Run your DAG​

1. Open your Astro project, then run astro dev start to run Airflow locally.

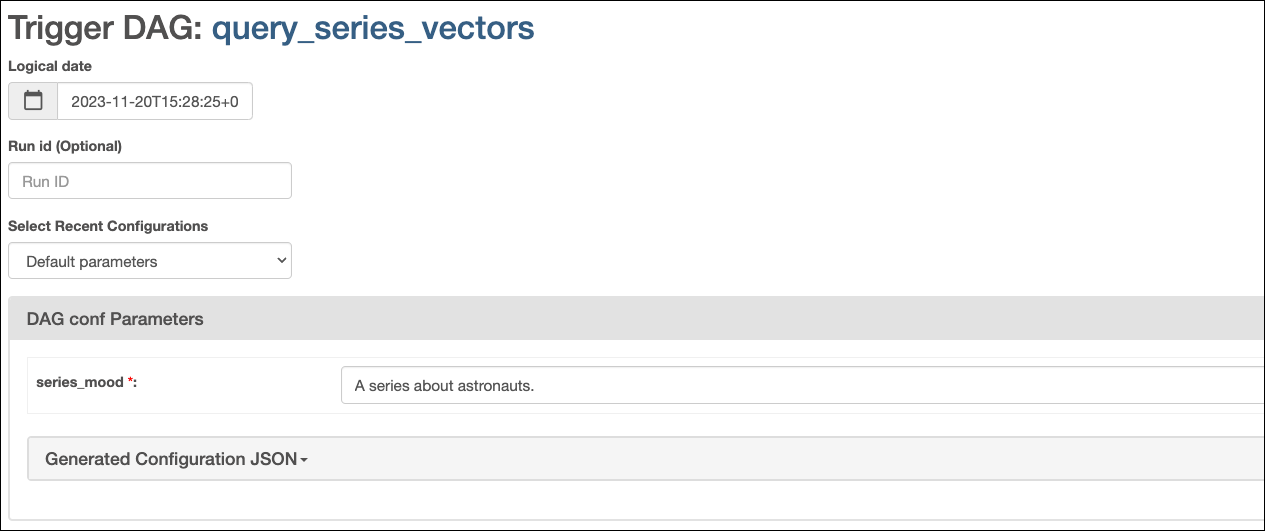

2. Open the Airflow UI at localhost:8080, then run the query_series_vectors DAG by clicking the play button. Provide your input to the Airflow param for series_mood.



3. View your series suggestion in the task logs of the query_pinecone task:

   [2023-11-20, 14:03:48 UTC] {logging_mixin.py:154} INFO - You should watch: For All Mankind
   [2023-11-20, 14:03:48 UTC] {logging_mixin.py:154} INFO - Description: The series dramatizes an alternate history depicting "what would have happened if the global space race had never ended" after the Soviet Union succeeds in the first crewed Moon landing ahead of the United States.


Conclusion​

Congrats! You've successfully integrated Airflow and Pinecone! You can now use this tutorial as a starting point to build you own AI applications with Airflow and Pinecone.
