Manage connections in Apache Airflow

Connections in Airflow are sets of configurations used to connect with other tools in the data ecosystem. Because most hooks and operators rely on connections to send and retrieve data from external systems, understanding how to create and configure them is essential for running Airflow in a production environment.

In this guide you’ll:

• Learn about Airflow connections.
• Learn how to define connections using the Airflow UI.
• Learn how to define connections using environment variables.
• Add sample Snowflake and Slack Webhook connections to a DAG.

Assumed knowledge

To get the most out of this guide, you should have an understanding of:

• Basic Airflow concepts. See Introduction to Apache Airflow.
• Airflow operators. See Operators 101.
• Airflow hooks. See Hooks 101.

Airflow connection basics

An Airflow connection is a set of configurations that send requests to the API of an external tool. In most cases, a connection requires login credentials or a private key to authenticate Airflow to the external tool.

Airflow connections can be created by using one of the following methods:

• The Astro Environment Manager, which is the recommended way for Astro customers to manage connections.
• The Airflow UI.
• Environment variables.
• The Airflow REST API.
• A secrets backend (a system for managing secrets external to Airflow).
• The Airflow CLI.
• The airflow_settings.yaml file for Astro CLI users.

This guide focuses on adding connections using the Airflow UI and environment variables. For more in-depth information on configuring connections using other methods, see the REST API reference, Managing Connections and Secrets Backend.

Each connection has a unique conn_id which can be provided to operators and hooks that require a connection.

To standardize connections, Airflow includes many different connection types. There are general connection types for connecting to large clouds, such as aws_default and gcp_default, as well as connection types for specific services like azure_service_bus_default.

Each connection type requires different configurations and values based on the service it’s connecting to. There are a couple of ways to find the information you need to provide for a particular connection type:

• Open the relevant provider page in the Astronomer Registry and go to the first link under Helpful Links to access the Apache Airflow documentation for the provider. Most commonly used providers will have documentation on each of their associated connection types. For example, you can find information on how to set up different connections to Azure in the Azure provider docs.
• Check the documentation of the external tool you are connecting to and see if it offers guidance on how to authenticate.
• Refer to the source code of the hook that is being used by your operator.

Defining connections in the Airflow UI

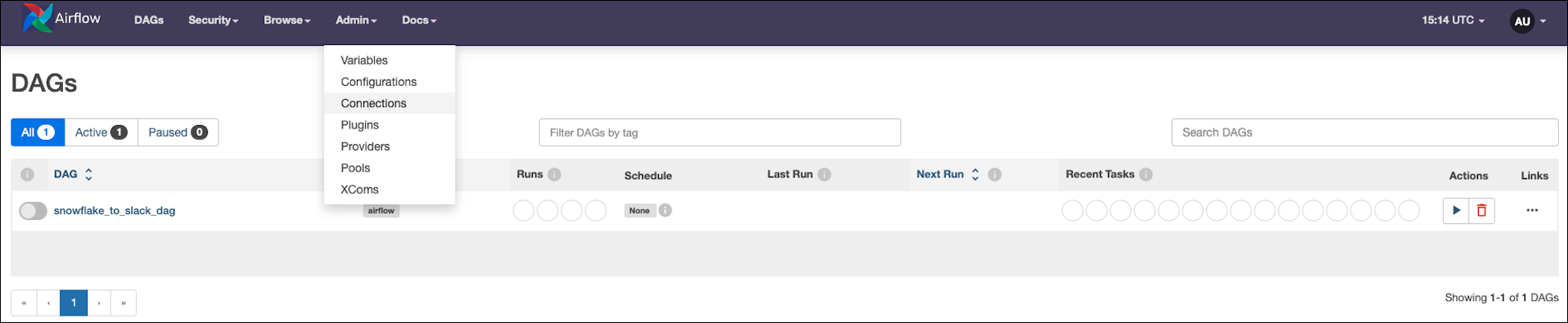

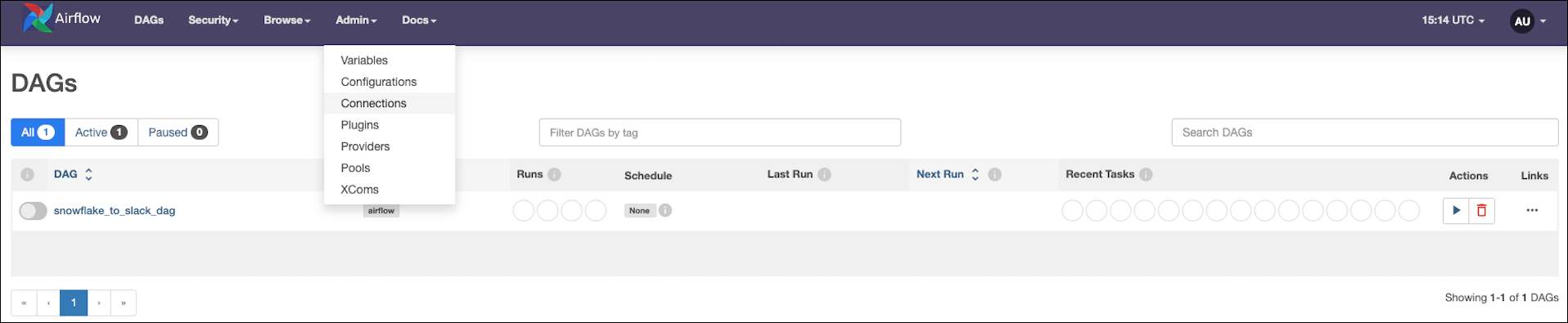

The most common way of defining a connection is using the Airflow UI. Go to Admin > Connections.

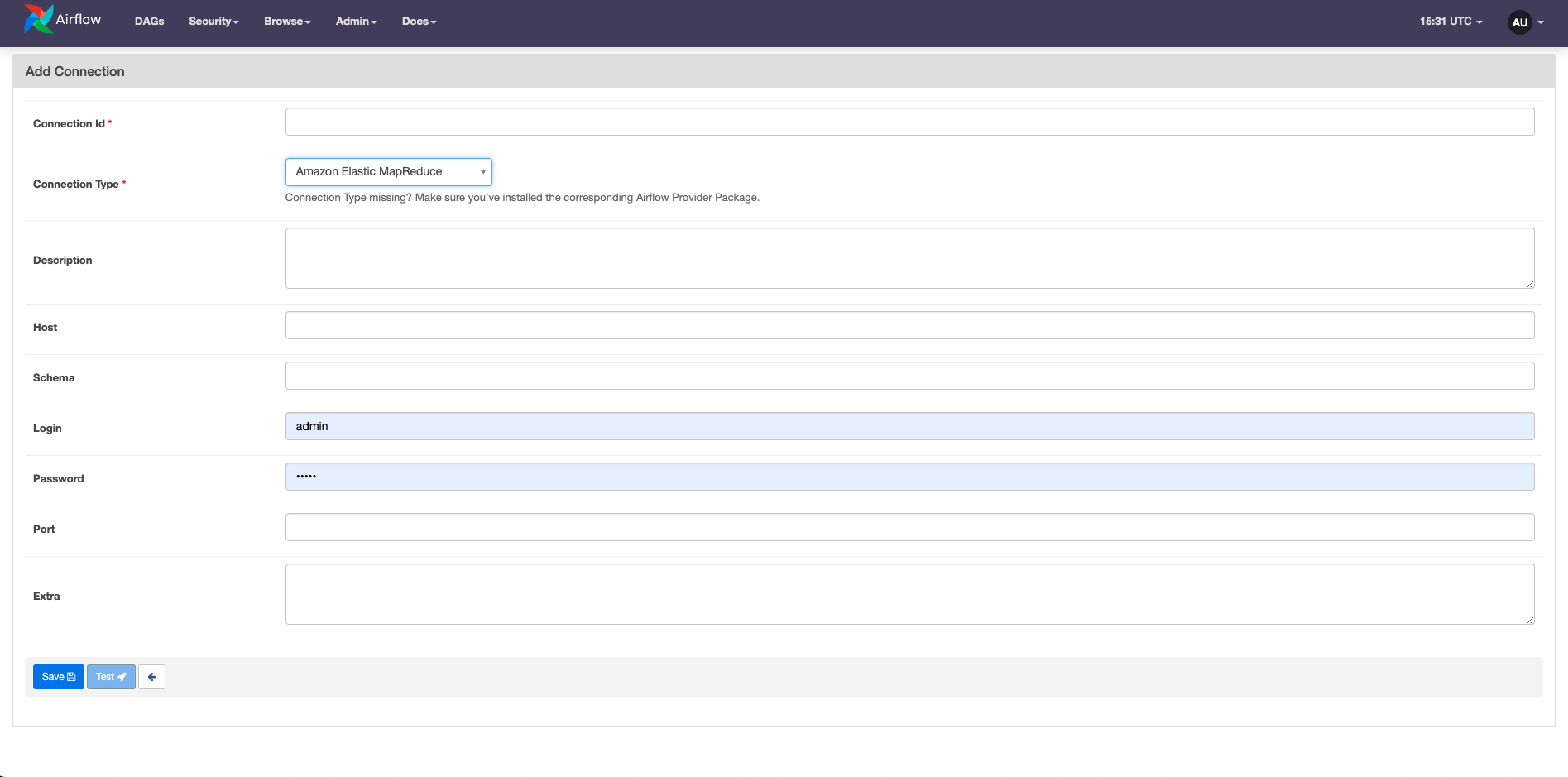

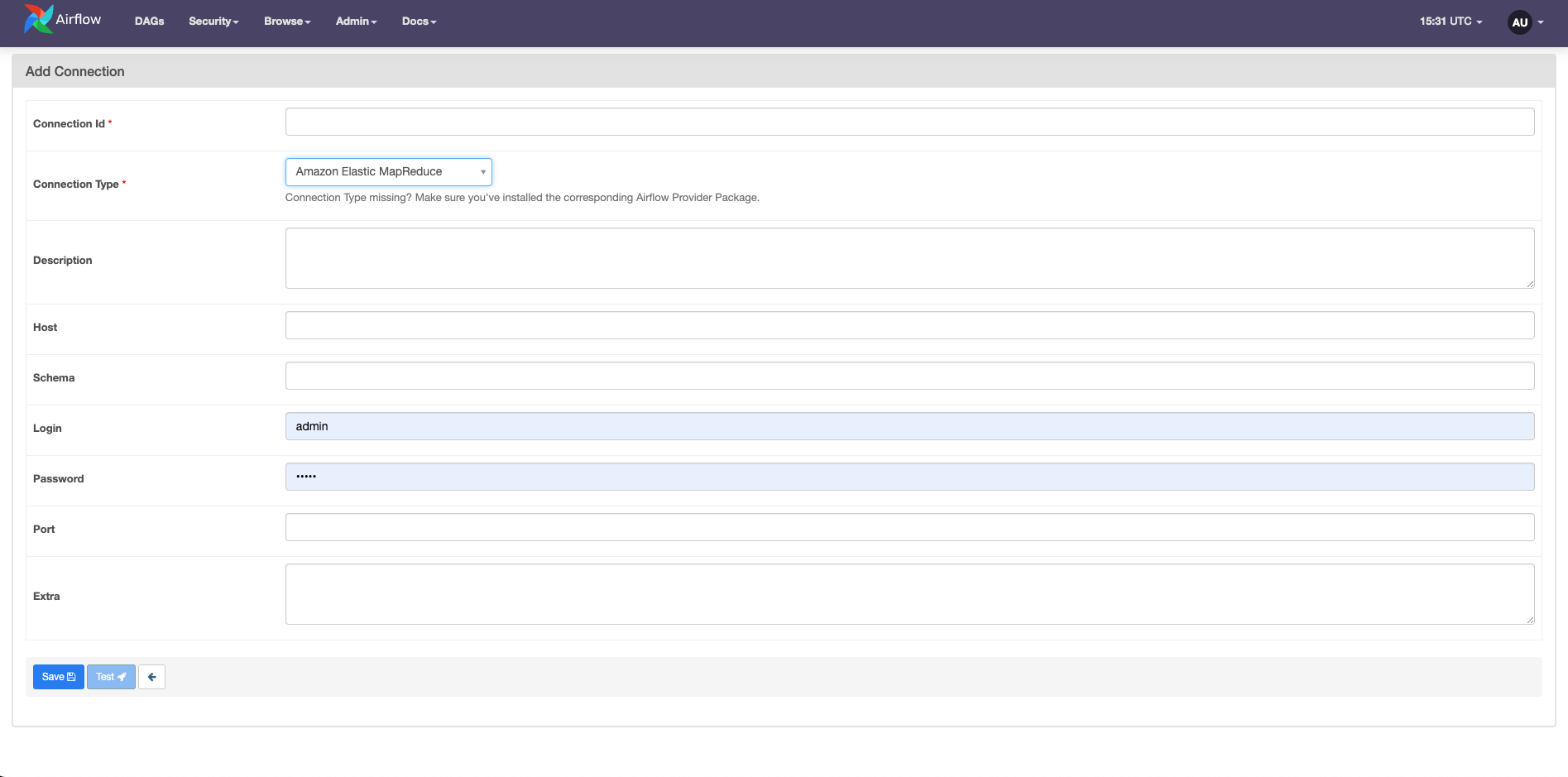

Airflow doesn’t provide any preconfigured connections. To create a new connection, click the blue + button.

As you update the Connection Type field, notice how the other available fields change. Each connection type requires different kinds of information. Specific connection types are only available in the dropdown list when the relevant provider is installed in your Airflow environment.

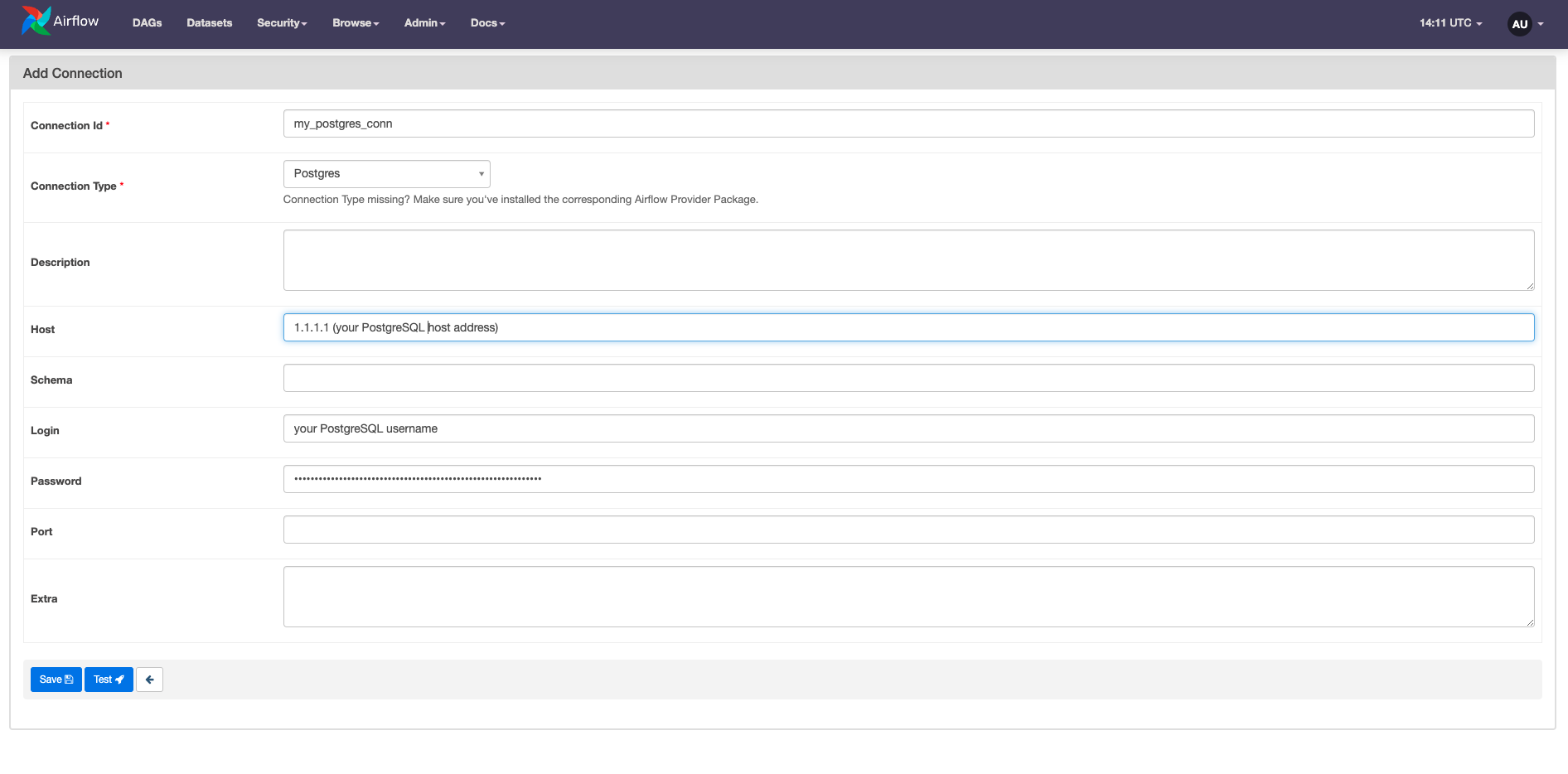

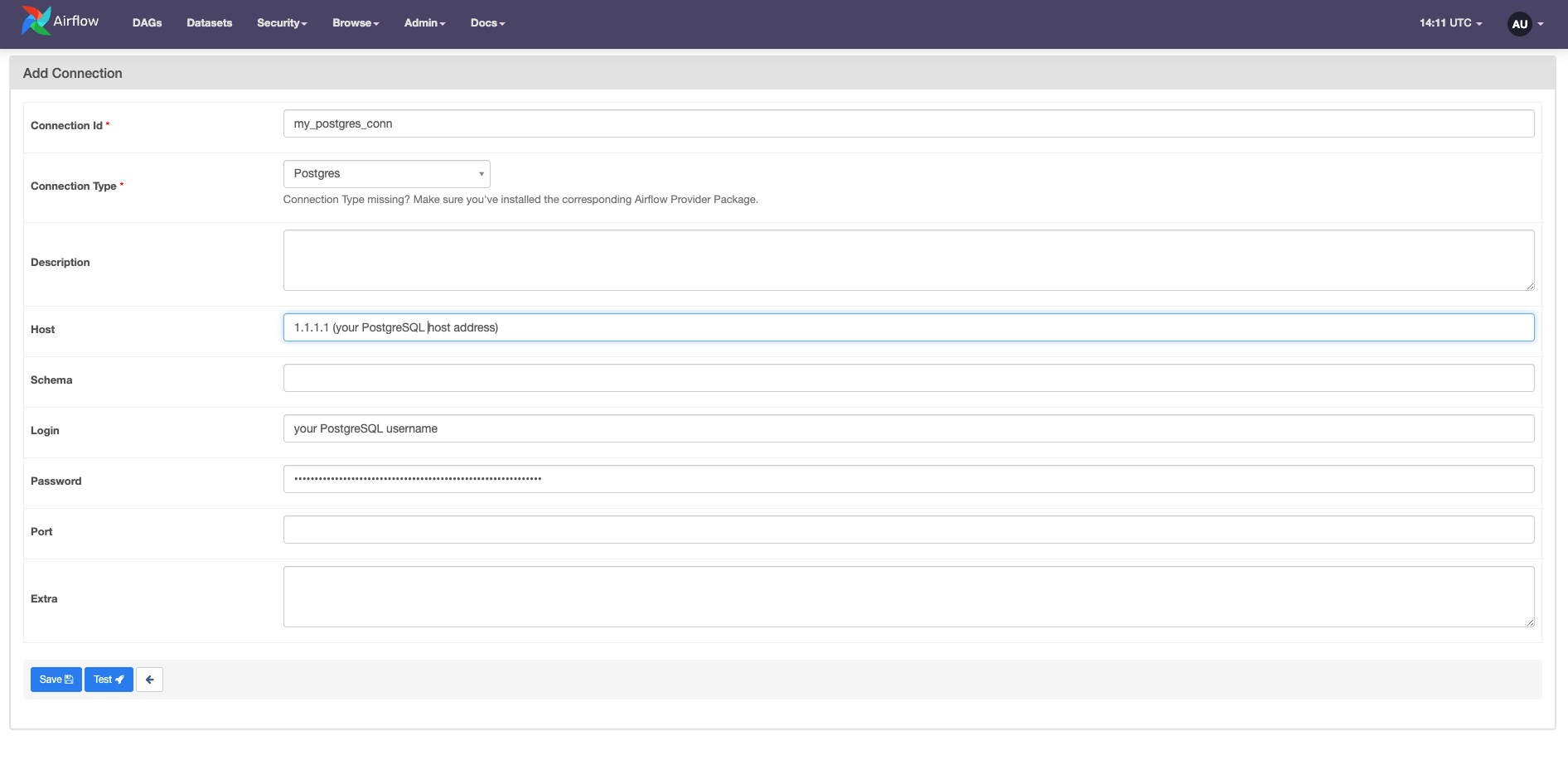

You don’t have to specify every field for most connections. However, the values marked as required in the Airflow UI can be misleading. For example, to set up a connection to a PostgreSQL database, you need to reference the PostgreSQL provider documentation to learn that the connection requires a Host, a user name as login, and a password in the password field.

Any parameters that don’t have specific fields in the connection form can be defined in the Extra field as a JSON dictionary. For example, you can add the sslmode or a client sslkey in the Extra field of your PostgreSQL connection.

You can test some connection types from the Airflow UI with the Test button if you enable test_connection in the Airflow config. After running a connection test, a message shows either a success confirmation or an error message. When using the Test button, the connection to your external tool is made from the webserver component of Airflow. See also Testing connections in the Airflow documentation.

Define connections with environment variables

Connections can also be defined using environment variables. If you use the Astro CLI, you can use the .env file for local development or specify environment variables in your project’s Dockerfile.

Note: If you are synchronizing your project to a remote repository, don’t save sensitive information in your Dockerfile. In this case, using either a secrets backend, Airflow connections defined in the UI, or .env locally are preferred to avoid exposing secrets in plain text.

The environment variable used for the connection must be formatted as AIRFLOW_CONN_YOURCONNID and can be provided as a Uniform Resource Identifier (URI) or in JSON.

URI is a format designed to contain all necessary connection information in one string, starting with the connection type, followed by login, password, and host. In many cases a specific port, schema, and additional parameters must be added.

1
# the general format of a URI connection that is defined in your Dockerfile
2
ENV AIRFLOW_CONN_MYCONNID='my-conn-type://login:password@host:port/schema?param1=val1&param2=val2'
3
4
# an example of a connection to snowflake defined as a URI
5
ENV AIRFLOW_CONN_SNOWFLAKE_CONN='snowflake://LOGIN:PASSWORD@/?account=xy12345&region=eu-central-1'

Connections can also be provided to an environment variable as a JSON dictionary:

1
# example of a connection defined as a JSON file in your `.env` file
2
AIRFLOW_CONN_MYCONNID='{
3
    "conn_type": "my-conn-type",
4
    "login": "my-login",
5
    "password": "my-password",
6
    "host": "my-host",
7
    "port": 1234,
8
    "schema": "my-schema",
9
    "extra": {
10
        "param1": "val1",
11
        "param2": "val2"
12
    }
13
}'

Connections that are defined using environment variables do not appear in the list of available connections in the Airflow UI.

Masking sensitive information

Connections often contain sensitive credentials. By default, Airflow hides the password field in the UI and in the Airflow logs. If AIRFLOW__CORE__HIDE_SENSITIVE_VAR_CONN_FIELDS is set to True, values from the connection’s Extra field are also hidden if their keys contain any of the words listed in AIRFLOW__CORE__SENSITIVE_VAR_CONN_NAMES. You can find more information on masking, including a list of the default values in this environment variable, in the Airflow documentation on Masking sensitive data.

Test a connection

Airflow offers several ways to test your connections by calling the test_connection method of the Airflow hook associated with your connection. Provider hooks that do not have this method defined cannot be tested using these methods.

• Airflow UI: You can test many types of Airflow connections directly from the UI using the Test button on the Connections page. See Defining connections in the Airflow UI.
• Airflow REST API: The Airflow REST API offers the connections/test endpoint to test connections. This is the same endpoint that the Airflow UI uses to test connections.
• Airflow CLI: You can test a connection from the Airflow CLI using airflow connections test <conn_id>, if you have test_connection enabled in the Airflow config. If you use the Astro CLI, you can access this command by running astro dev run connections test <conn_id>.

Example: Configuring the SnowflakeToSlackOperator

In this example, you’ll configure the SnowflakeToSlackOperator, which requires connections to Snowflake and Slack. You’ll define the connections using the Airflow UI.

Before starting Airflow, you need to install the Snowflake and the Slack providers. If you use the Astro CLI, you can install the packages by adding the following lines to your Astro project’s requirements.txt file:

apache-airflow-providers-snowflake
apache-airflow-providers-slack

Open the Airflow UI and create a new connection. Set the Connection Type to Snowflake. This connection type requires the following parameters:

• Connection Id: snowflake_conn or any other string that is not already in use by an existing connection
• Connection Type: Snowflake
• Account: Your Snowflake account in the format xy12345.region
• Login: Your Snowflake login name.
• Password: Your Snowflake login password.

You can leave the other fields empty. Click Test to test the connection.

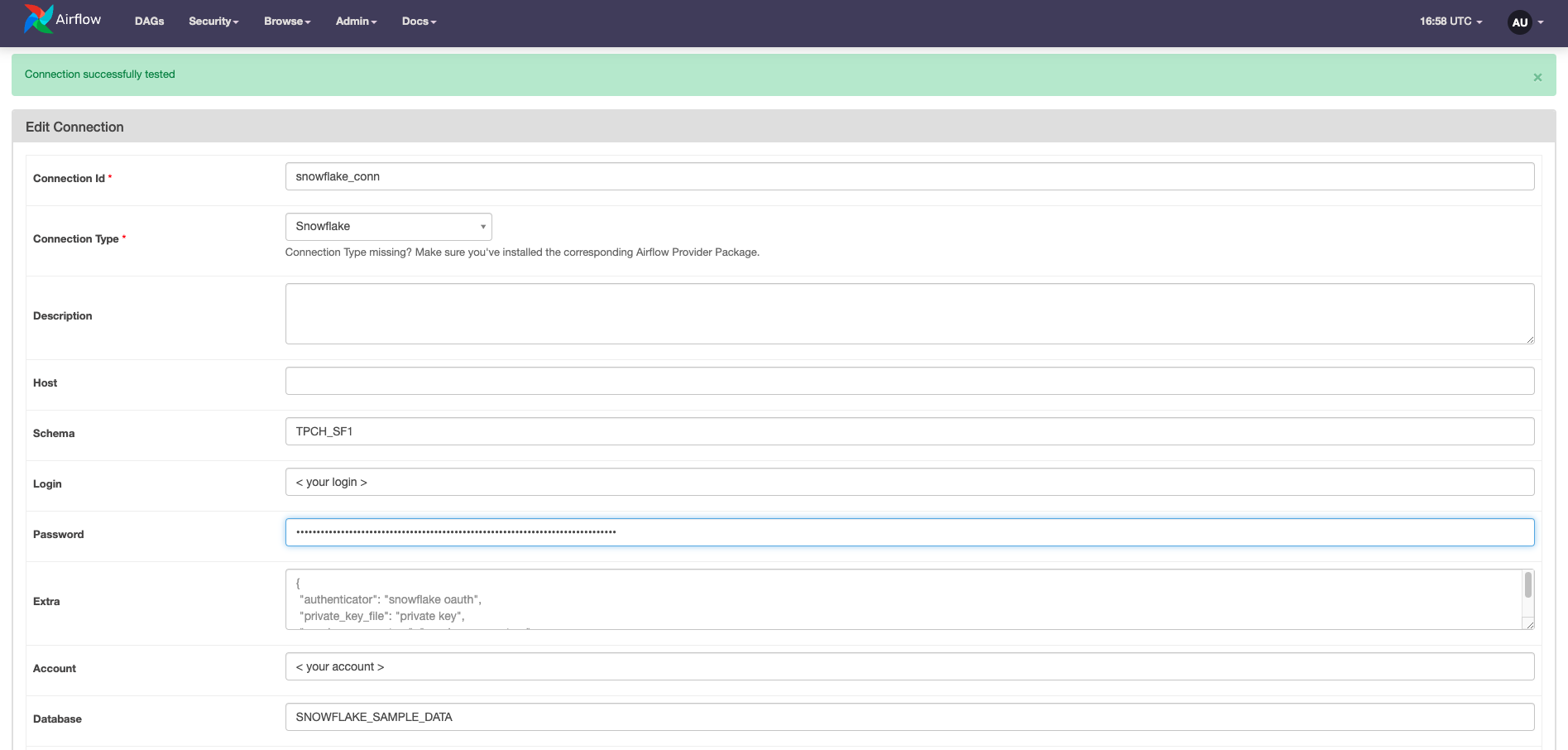

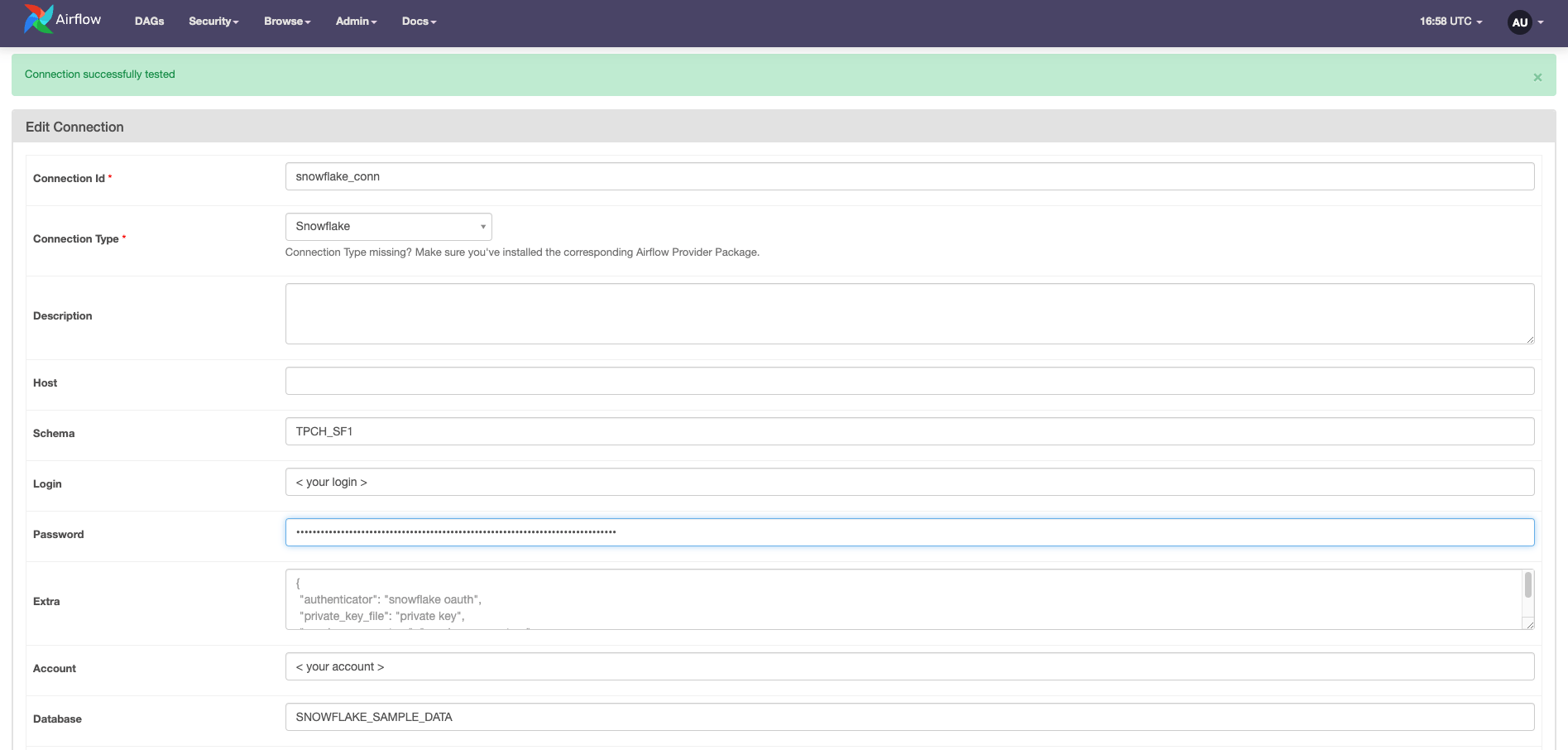

The following image shows the connection to Snowflake was successful.

Next you’ll set up a connection to Slack. To post a message to a Slack channel, you need to create a Slack app for your server and configure incoming webhooks. See the Slack Documentation for setup steps.

To connect to Slack from Airflow, you need to provide the following parameters:

• Connection Id: slack_conn (or another string that has not been used for a different connection already)
• Connection Type: Slack Webhook
• Host: https://hooks.slack.com.services, which is the first part of your Webhook URL
• Password: The second part of your Webhook URL in the format T00000000/B00000000/XXXXXXXXXXXXXXXXXXXXXXXX

Click Test to test the connection.

The last step is writing the DAG using the SnowflakeToSlackOperator to run a SQL query on a Snowflake table and post the result as a message to a Slack channel. The SnowflakeToSlackOperator requires both the connection id for the Snowflake connection (snowflake_conn_id) and the connection id for the Slack connection (slack_conn_id).

1
from airflow.decorators import dag
2
from pendulum import datetime
3
from airflow.providers.snowflake.transfers.snowflake_to_slack import (
4
    SnowflakeToSlackOperator,
5
)
6
7
8
@dag(start_date=datetime(2022, 7, 1), schedule=None, catchup=False)
9
def snowflake_to_slack_dag():
10
    transfer_task = SnowflakeToSlackOperator(
11
        task_id="transfer_task",
12
        # the two connections are passed to the operator here:
13
        snowflake_conn_id="snowflake_conn",
14
        slack_conn_id="slack_conn",
15
        params={"table_name": "ORDERS", "col_to_sum": "O_TOTALPRICE"},
16
        sql="""
17
            SELECT
18
              COUNT(*) AS row_count,
19
              SUM({{ params.col_to_sum }}) AS sum_price
20
            FROM {{ params.table_name }}
21
        """,
22
        slack_message="""The table {{ params.table_name }} has
23
            => {{ results_df.ROW_COUNT[0] }} entries
24
            => with a total price of {{results_df.SUM_PRICE[0]}}""",
25
    )
26
27
    transfer_task
28
29
30
snowflake_to_slack_dag()
