Orchestrate OpenSearch operations with Apache Airflow

OpenSearch is an open source distributed search and analytics engine based on Apache Lucene. It offers advanced search capabilities on large bodies of text alongside powerful machine learning plugins. The OpenSearch Airflow provider offers modules to easily integrate OpenSearch with Airflow.

In this tutorial you’ll use Airflow to create an index in OpenSearch, ingest the lyrics of the musical Hamilton into the index, and run a search query on the index to see which character most often sings a specific word.

Why use Airflow with OpenSearch?

OpenSearch allows you to perform complex search queries on indexed text documents. Additionally, the tool comes with a variety of plugins for use cases such as security analytics, semantic search, and neural search.

Integrating OpenSearch with Airflow allows you to:

• Use Airflow’s data-driven scheduling to run operations involving documents stored in OpenSearch based on upstream events in your data ecosystem, such as when a new model is trained or a new dataset is available.
• Run dynamic queries based on upstream events in your data ecosystem or user input via Airflow params on documents and vectors stored in OpenSearch to retrieve relevant objects.
• Add Airflow features like retries and alerts to your OpenSearch operations.

Time to complete

This tutorial takes approximately 30 minutes to complete.

Assumed knowledge

To get the most out of this tutorial, make sure you have an understanding of:

• The basics of OpenSearch. See the OpenSearch documentation.
• Vector embeddings. See Using OpenSearch as a Vector Database.
• Airflow fundamentals, such as writing DAGs and defining tasks. See Get started with Apache Airflow.
• Airflow decorators. Introduction to the TaskFlow API and Airflow decorators.
• Airflow connections. See Managing your Connections in Apache Airflow.

Prerequisites

• The Astro CLI.

This tutorial uses a local OpenSearch instance created as a Docker container. You do not need to install OpenSearch on your machine.

Step 1: Configure your Astro project

1. Create a new Astro project:

   1
   $ mkdir astro-opensearch-tutorial && cd astro-opensearch-tutorial
   2
   $ astro dev init

2. Add the following two lines to your Astro project requirements.txt file to install the OpenSearch Airflow provider and the pandas package in your Astro project:

   apache-airflow-providers-opensearch==1.0.0
   pandas==1.5.3

3. This tutorial uses a local OpenSearch instance running in a Docker container. To run an OpenSearch container as part of your Airflow environment, create a new file in your Astro project root directory called docker-compose.override.yml and copy and paste the following into it:

   1
   version: '3.1'
   2
   services:
   3
     opensearch:
   4
       image: opensearchproject/opensearch:2
   5
       ports:
   6
         - "9200:9200"  # OpenSearch REST API
   7
         - "9300:9300"  # OpenSearch Node-to-Node communication
   8
       environment:
   9
         - discovery.type=single-node
   10
         - plugins.security.ssl.http.enabled=false
   11
       volumes:
   12
         - opensearch-data:/usr/share/opensearch/data
   13
       networks:
   14
         - airflow
   15
   # Airflow containers
   16
     scheduler:
   17
       networks:
   18
         - airflow
   19
     webserver:
   20
       networks:
   21
         - airflow
   22
     triggerer:
   23
       networks:
   24
         - airflow
   25
     postgres:
   26
       networks:
   27
         - airflow
   28
   29
   # volume for OpenSearch
   30
   volumes:
   31
     opensearch-data:

4. Add the following configuration to your .env file to create an Airflow connection between Airflow and your OpenSearch instance. If you already have a cloud-based OpenSearch instance, you can connect to that instead of the local instance by adjusting the values in the connection.

   AIRFLOW_CONN_OPENSEARCH_DEFAULT='{
       "conn_type": "opensearch",
       "host": "opensearch",
       "port": 9200,
       "login": "admin",
       "password": "admin"
   }'

Step 2: Add your data

The DAG in this tutorial uses a Kaggle dataset that contains the lyrics of the musical Hamilton.

1. Download the hamilton_lyrics.csv from Astronomer’s GitHub.

2. Save the file in your Astro project include folder.

Step 3: Create your DAG

1. In your dags folder, create a file called search_hamilton.py.

2. Copy the following code into the file.

   1
   """
   2
   ## Use the OpenSearch provider to ingest and search Hamilton lyrics
   3
   4
   This DAG uses the OpenSearch provider to create an index in OpenSearch,
   5
   ingest Hamilton lyrics into the index, and search for which character and which song
   6
   mention a keyword the most.
   7
   """
   8
   9
   from airflow.decorators import dag, task
   10
   from airflow.models.baseoperator import chain
   11
   from airflow.operators.empty import EmptyOperator
   12
   from airflow.providers.opensearch.operators.opensearch import (
   13
       OpenSearchAddDocumentOperator,
   14
       OpenSearchCreateIndexOperator,
   15
       OpenSearchQueryOperator,
   16
   )
   17
   from airflow.providers.opensearch.hooks.opensearch import OpenSearchHook
   18
   from pendulum import datetime
   19
   import csv
   20
   import uuid
   21
   import pandas as pd
   22
   23
   OPENSEARCH_INDEX_NAME = "hamilton_lyrics"
   24
   OPENSEARCH_CONN_ID = "opensearch_default"
   25
   LYRICS_CSV_PATH = "include/hamilton_lyrics.csv"
   26
   KEYWORD_TO_SEARCH = "write"
   27
   28
   29
   @dag(
   30
       start_date=datetime(2023, 10, 18),
   31
       schedule=None,
   32
       catchup=False,
   33
   )
   34
   def search_hamilton():
   35
       @task.branch
   36
       def check_if_index_exists(index_name: str, conn_id: str) -> str:
   37
           client = OpenSearchHook(open_search_conn_id=conn_id, log_query=True).client
   38
           is_index_exist = client.indices.exists(index_name)
   39
           if is_index_exist:
   40
               return "index_exists"
   41
           return "create_index"
   42
   43
       create_index = OpenSearchCreateIndexOperator(
   44
           task_id="create_index",
   45
           opensearch_conn_id=OPENSEARCH_CONN_ID,
   46
           index_name=OPENSEARCH_INDEX_NAME,
   47
           index_body={
   48
               "settings": {"index": {"number_of_shards": 1}},
   49
               "mappings": {
   50
                   "properties": {
   51
                       "title": {"type": "keyword"},
   52
                       "speaker": {
   53
                           "type": "keyword",
   54
                       },
   55
                       "lines": {"type": "text"},
   56
                   }
   57
               },
   58
           },
   59
       )
   60
   61
       index_exists = EmptyOperator(task_id="index_exists")
   62
   63
       @task
   64
       def csv_to_dict_list(csv_file_path: str) -> list:
   65
           with open(csv_file_path, mode="r", encoding="utf-8") as file:
   66
               reader = csv.DictReader(file)
   67
               list_of_hamilton_lines = list(reader)
   68
   69
           list_of_kwargs = []
   70
           for line in list_of_hamilton_lines:
   71
               unique_line_id = uuid.uuid5(
   72
                   name=" ".join([line["title"], line["speaker"], line["lines"]]),
   73
                   namespace=uuid.NAMESPACE_DNS,
   74
               )
   75
               kwargs = {"doc_id": str(unique_line_id), "document": line}
   76
   77
               list_of_kwargs.append(kwargs)
   78
   79
           return list_of_kwargs
   80
   81
       list_of_document_kwargs = csv_to_dict_list(csv_file_path=LYRICS_CSV_PATH)
   82
   83
       add_lines_as_documents = OpenSearchAddDocumentOperator.partial(
   84
           task_id="add_lines_as_documents",
   85
           opensearch_conn_id=OPENSEARCH_CONN_ID,
   86
           trigger_rule="none_failed",
   87
           index_name=OPENSEARCH_INDEX_NAME,
   88
       ).expand_kwargs(list_of_document_kwargs)
   89
   90
       search_for_keyword = OpenSearchQueryOperator(
   91
           task_id=f"search_for_{KEYWORD_TO_SEARCH}",
   92
           opensearch_conn_id=OPENSEARCH_CONN_ID,
   93
           index_name=OPENSEARCH_INDEX_NAME,
   94
           query={
   95
               "size": 0,
   96
               "query": {
   97
                   "match": {"lines": {"query": KEYWORD_TO_SEARCH, "fuzziness": "AUTO"}}
   98
               },
   99
               "aggs": {
   100
                   "most_mentions_person": {"terms": {"field": "speaker"}},
   101
                   "most_mentions_song": {"terms": {"field": "title"}},
   102
               },
   103
           },
   104
       )
   105
   106
       @task
   107
       def print_query_result(query_result: dict, keyword: str) -> None:
   108
           results_most_mentions_person = query_result["aggregations"][
   109
               "most_mentions_person"
   110
           ]["buckets"]
   111
           results_most_mentions_song = query_result["aggregations"]["most_mentions_song"][
   112
               "buckets"
   113
           ]
   114
   115
           df_person = pd.DataFrame(results_most_mentions_person)
   116
           df_person.columns = ["Character", f"Number of lines that include '{keyword}'"]
   117
           df_song = pd.DataFrame(results_most_mentions_song)
   118
           df_song.columns = ["Song", f"Number of lines that include '{keyword}'"]
   119
   120
           print(
   121
               f"\n Top 3 Hamilton characters that mention '{keyword}' the most:\n ",
   122
               df_person.head(3).to_string(index=False),
   123
           )
   124
           print(
   125
               f"\n Top 3 Hamilton songs that mention '{keyword}' the most:\n ",
   126
               df_song.head(3).to_string(index=False),
   127
           )
   128
   129
       chain(
   130
           check_if_index_exists(
   131
               index_name=OPENSEARCH_INDEX_NAME, conn_id=OPENSEARCH_CONN_ID
   132
           ),
   133
           [create_index, index_exists],
   134
           add_lines_as_documents,
   135
       )
   136
       chain(
   137
           list_of_document_kwargs,
   138
           add_lines_as_documents,
   139
           search_for_keyword,
   140
           print_query_result(
   141
               query_result=search_for_keyword.output,
   142
               keyword=KEYWORD_TO_SEARCH,
   143
           ),
   144
       )
   145
   146
   147
   search_hamilton()

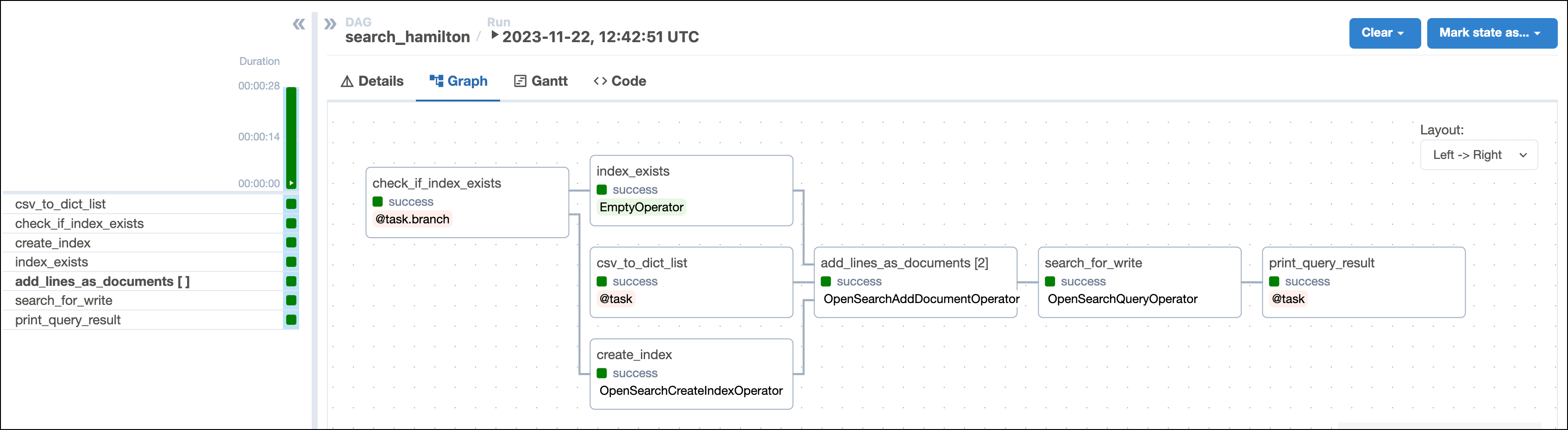

This DAG consists of seven tasks to make a simple ML orchestration pipeline.

• The check_if_index_exists task uses a @task.branch decorator to check if the index OPENSEARCH_INDEX_NAME exists in your OpenSearch instance. If it does not exist, the task returns the string create_index causing the downstream create_index task to run. If the index exists, the task causes the empty index_exists task to run instead.
• The create_index task defined with the OpenSearchCreateIndexOperator creates the index OPENSEARCH_INDEX_NAME in your OpenSearch instance with the three properties title, speaker and lines.
• The csv_to_dict_list task uses the @task decorator to ingest the lyrics of the musical Hamilton from the hamilton_lyrics.csv file into a list of Python dictionaries. Each dictionary represents a line of the musical and will be one document in the OpenSearch index.
• The add_lines_as_documents task is a dynamically mapped task using the OpenSearchAddDocumentOperator to create one mapped task instance for each document to ingest.
• The search_for_keyword task is defined with the OpenSearchQueryOperator and performs a fuzzy query on the OpenSearch index to find the character and song that mention the KEYWORD_TO_SEARCH the most.
• The print_query_result prints the query results to the task logs.

Step 4: Run your DAG

1. Run astro dev start in your Astro project to start Airflow and open the Airflow UI at localhost:8080.

2. In the Airflow UI, run the search_hamilton DAG by clicking the play button. By default the DAG will search the lyrics for the word write, but you can change the search term by updating the KEYWORD_TO_SEARCH variable in your DAG file.

3. View your song results in the task logs of the print_query_result task:

   [2023-11-22, 14:01:58 UTC] {logging_mixin.py:154} INFO -
    Top 3 Hamilton characters that mention 'write' the most:
     Character  Number of lines that include 'write'
     HAMILTON                                    15
        ELIZA                                     8
         BURR                                     4
   [2023-11-22, 14:01:58 UTC] {logging_mixin.py:154} INFO -
    Top 3 Hamilton songs that mention 'write' the most:
        Song  Number of lines that include 'write'
     Non-Stop                                    11
    Hurricane                                    10
         Burn                                     3

4. (Optional) Listen to the song that mentions your keyword the most.

Conclusion

Congratulations! You used Airflow and OpenSearch to analyze the lyrics of Hamilton! You can now use Airflow to orchestrate OpenSearch operations in your own machine learning pipelines. History has its eyes on you.
