Understanding Airflow Trigger Rules: A Comprehensive Visual Guide

Introduction to Airflow Trigger Rules

The core purpose of Airflow is to orchestrate tasks and every single task in Airflow has a trigger rule assigned. By default, Airflow runs a task when all directly upstream tasks are successful using the trigger rule on_success. This works for many simple pipelines but as soon as DAG structures become more complex you might want to run a task if only one of its upstream tasks succeeded, or even in the case of upstream task failure. This can be achieved by changing the trigger_rule parameter of a task, which determines when a task runs in relation to the previous tasks it depends on. In this blog post you will learn everything you need to know about all Airflow trigger rules as of Airflow version 2.9.2. For each trigger rule one or more screenshots of a typical scenario of using it is shown to help you pick and remember the right trigger rule for every DAG-situation.

What are Airflow trigger rules?

How to define a trigger rule in Airflow

You can explicitly set the trigger rule of a task by setting its trigger_rule parameter.

# from airflow.decorators import task
# from airflow.models.baseoperator import chain
@task
def upstream_task():
    return "Hello..."

@task(trigger_rule="all_success")
def downstream_task():
    return " World!"

chain(upstream_task(), downstream_task())

List of available Airflow trigger rules

The following trigger rules are available:

• all_success: (default) The task runs only when all upstream tasks have succeeded.
• all_failed: The task runs only when all upstream tasks are in a failed or upstream_failed state.
• all_done: The task runs once all upstream tasks are done with their execution.
• all_skipped: The task runs only when all upstream tasks have been skipped.
• one_failed: The task runs when at least one upstream task has failed.
• one_success: The task runs when at least one upstream task has succeeded.
• one_done: The task runs when at least one upstream task has either succeeded or failed.
• none_failed: The task runs only when all upstream tasks have succeeded or been skipped.
• none_failed_min_one_success: The task runs only when all upstream tasks have not failed or upstream_failed, and at least one upstream task has succeeded.
• none_skipped: The task runs only when no upstream task is in a skipped state.
• always: The task runs at any time.

Special cases related to Airflow trigger rules

There are several special cases where trigger rules play an important role:

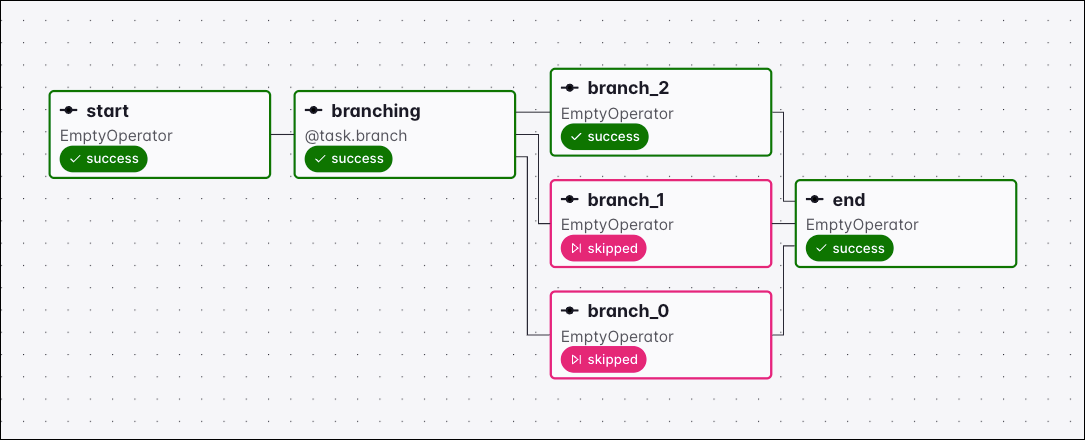

1. Branching: The @task.branch decorator or the BranchPythonOperator allow you to use custom logic to decide which of a set of downstream tasks should run next and which should be skipped. It is important to adjust downstream trigger rules to allowed for skipped upstream tasks. See Branching and trigger rules.
2. fail_stop: You can define a DAG in which any task failure stops the DAG execution by setting the DAG parameter fail_stop to True. This will set all tasks that are still running to failed and mark any tasks that have not run yet as skipped. In a DAG using fail_stop you cannot have any trigger rules other than all_success.
3. Setup and teardown tasks are a special type of task to create and delete resources that also influence trigger rules. See Use setup and teardown tasks in Airflow.

Visual examples of Airflow trigger rules

Trigger rule all_success

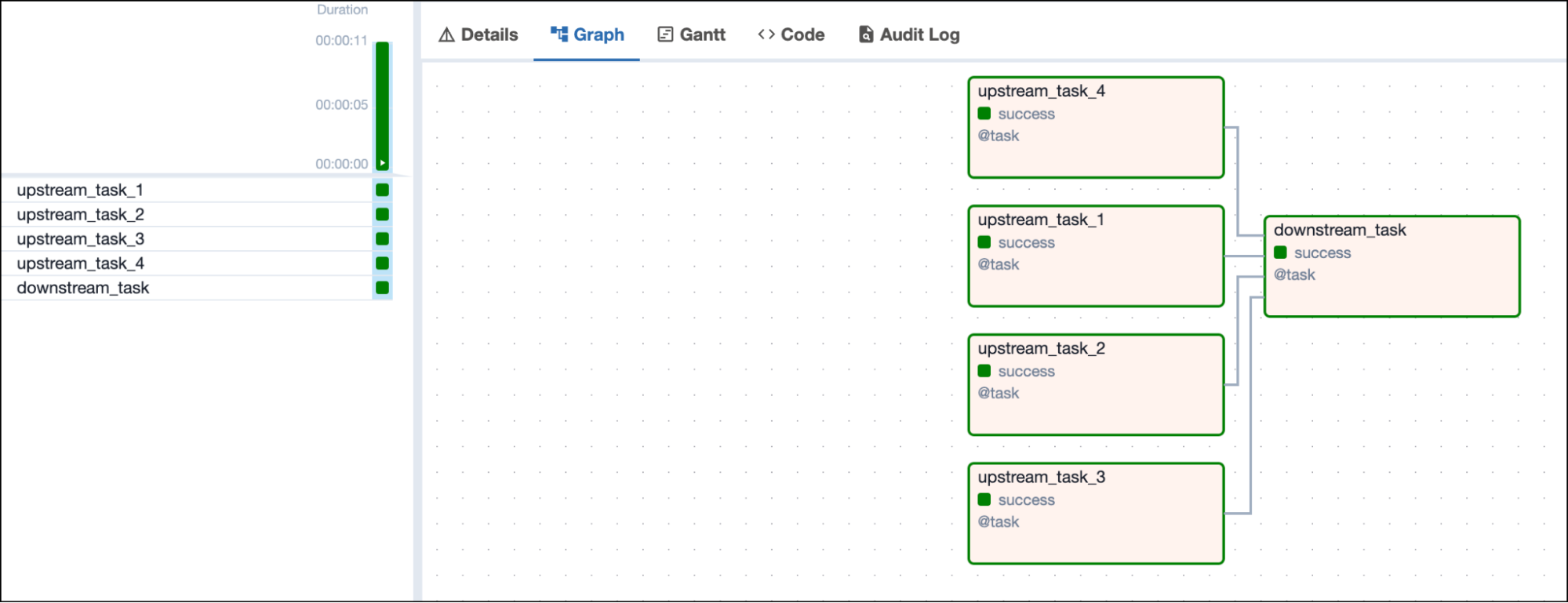

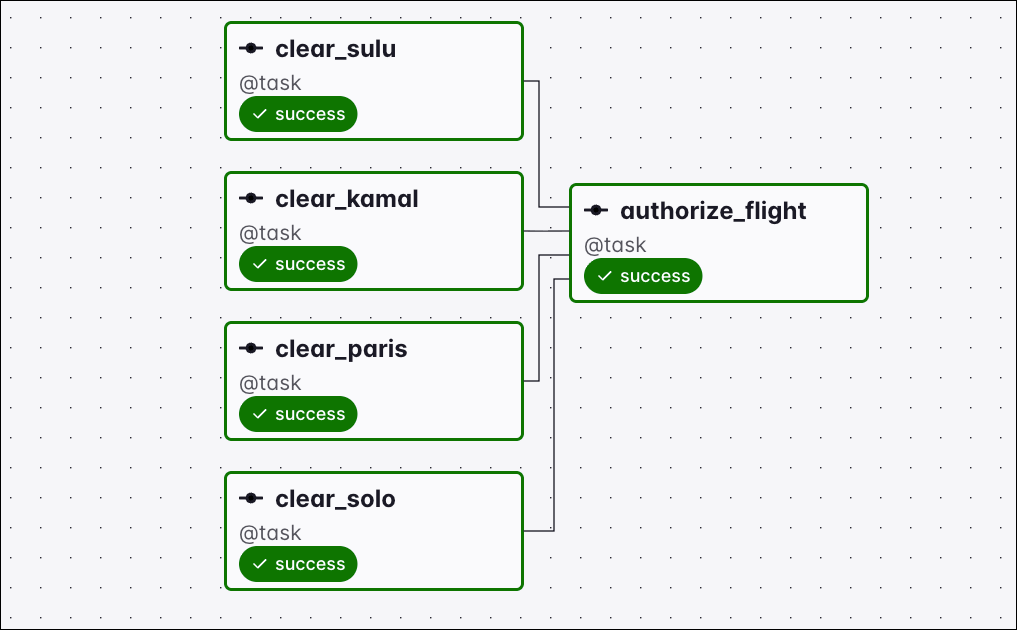

A task with the trigger rule all_success only runs when all upstream tasks have succeeded.

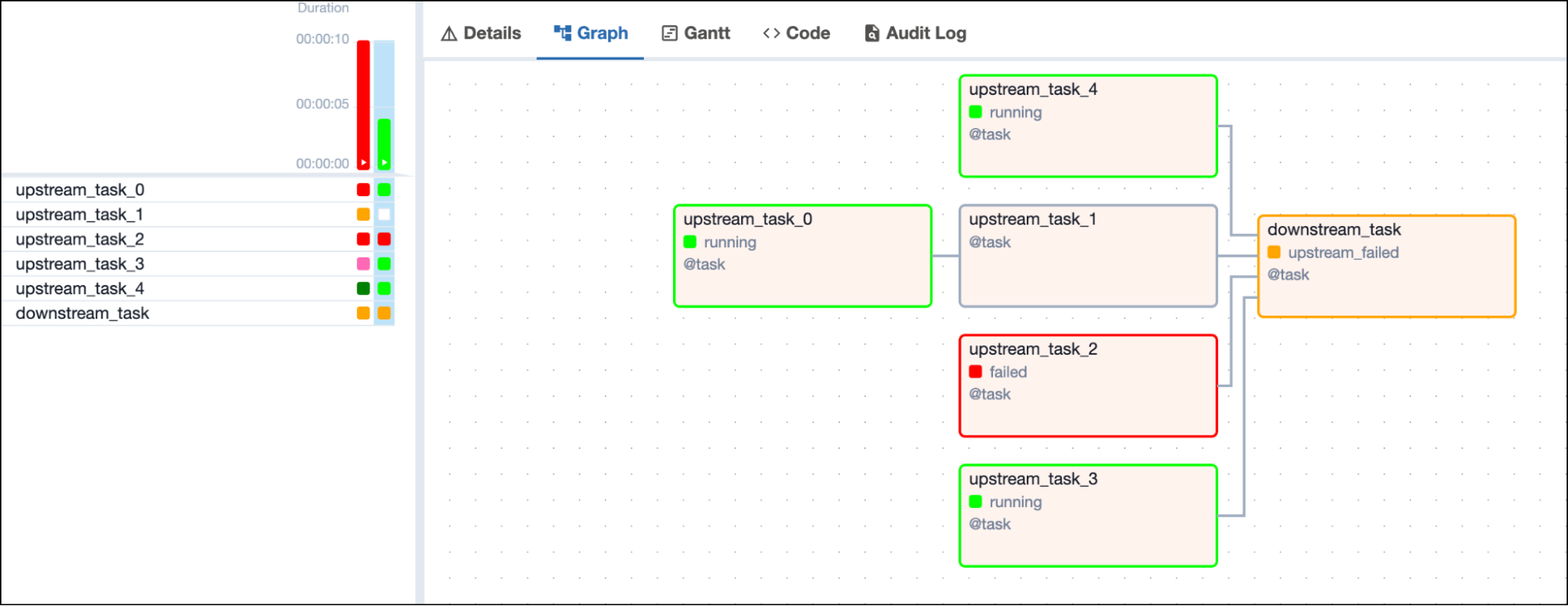

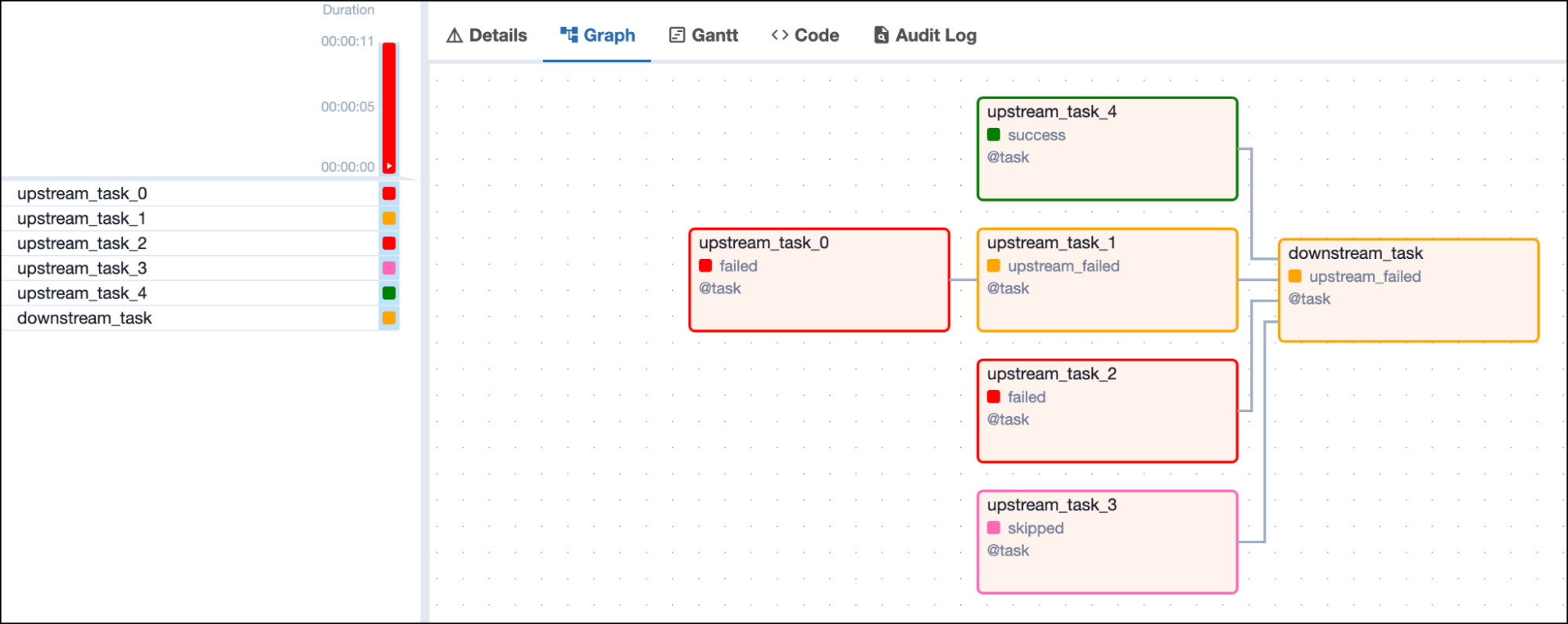

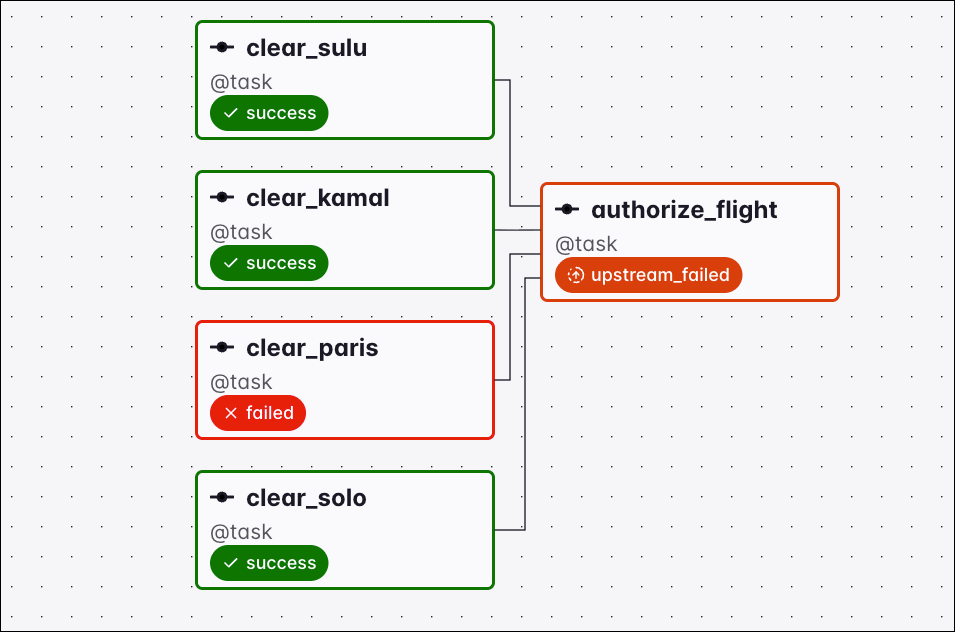

As soon as any upstream tasks are in the state of failed or upstream_failed, the downstream task is set to the state upstream_failed and does not run.

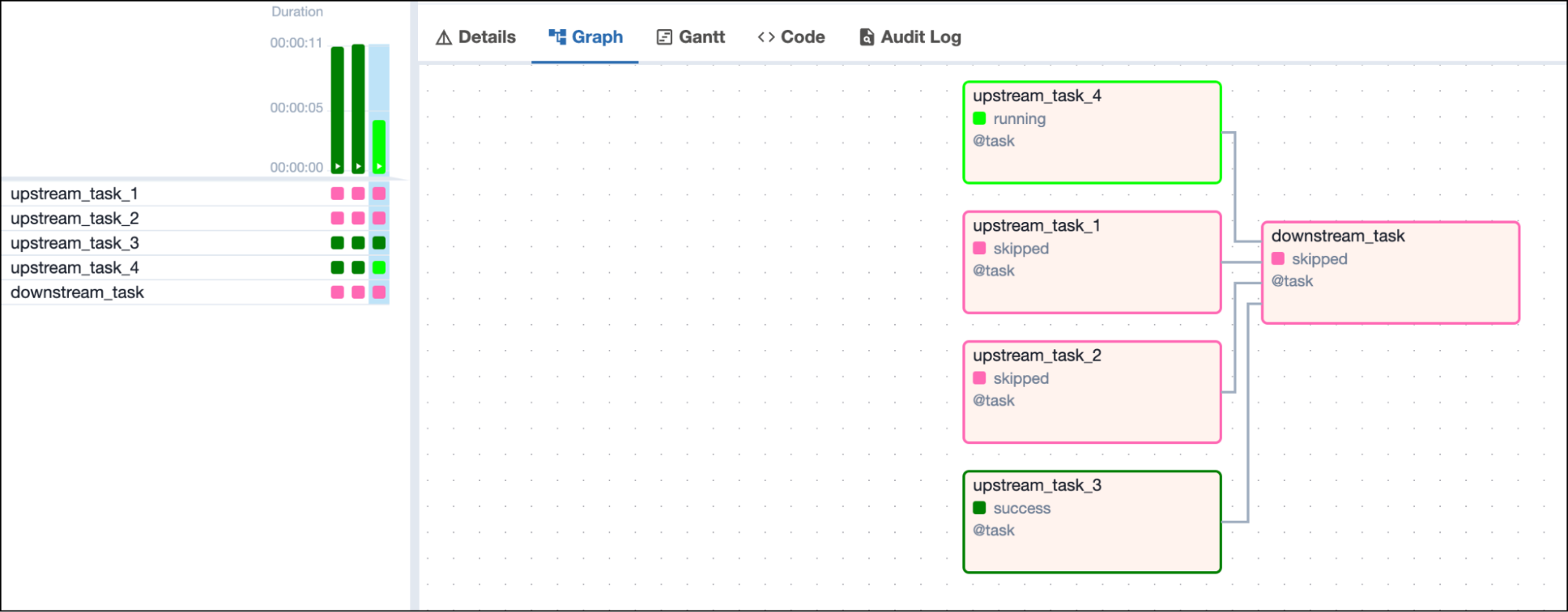

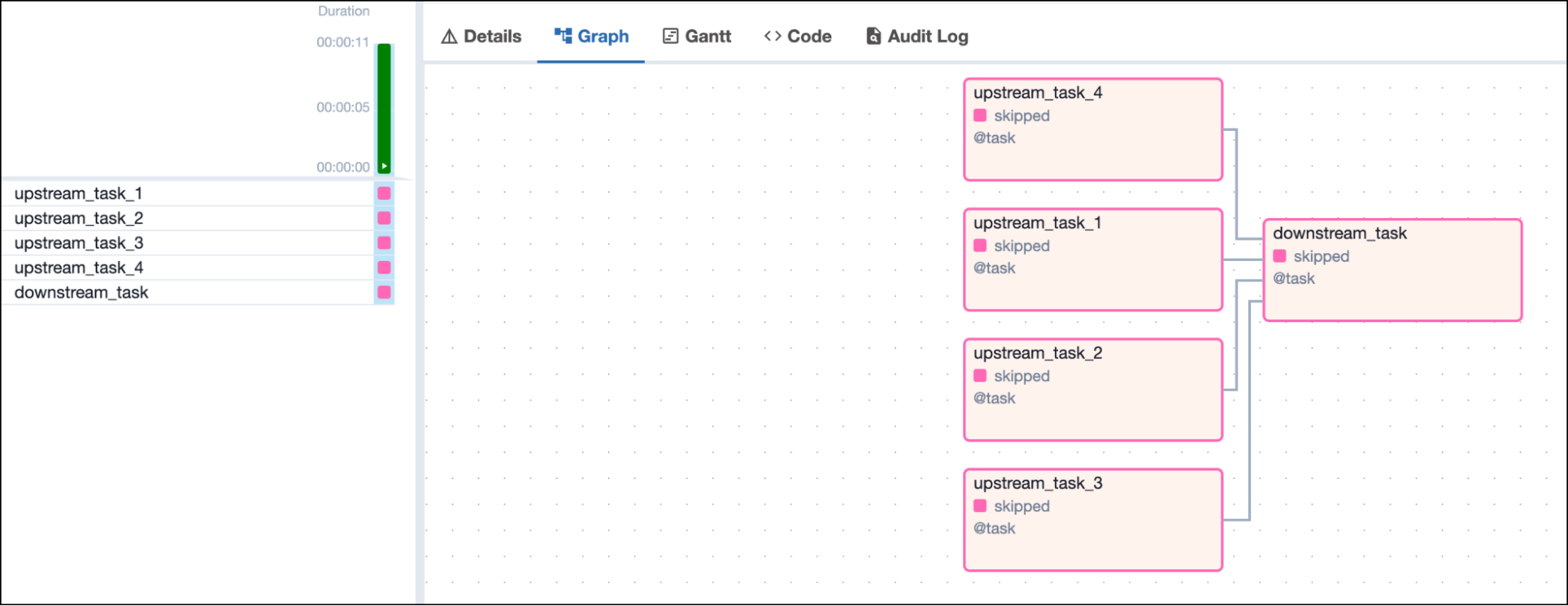

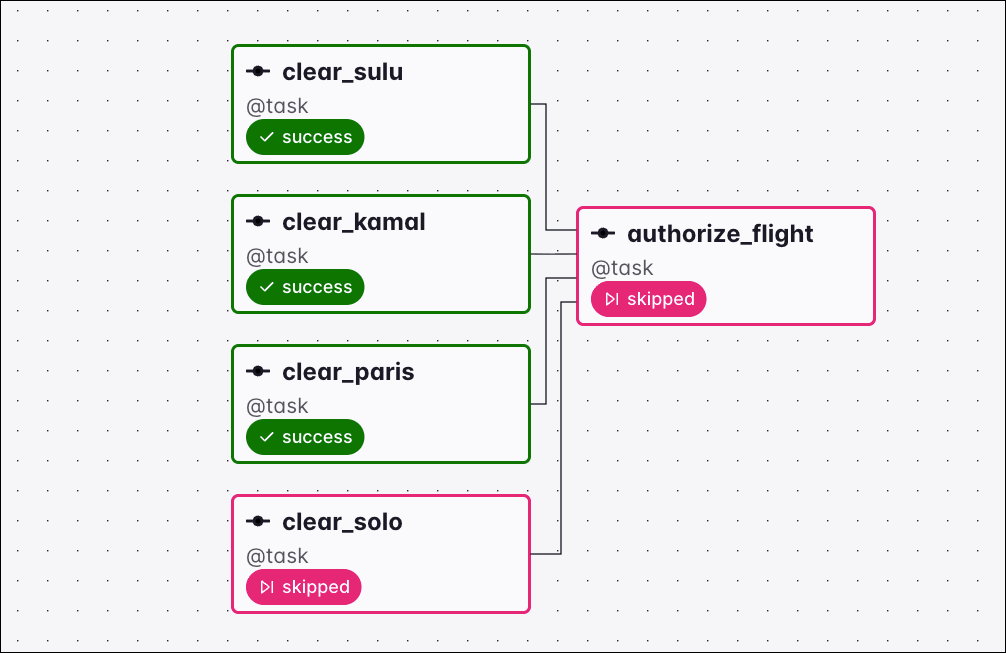

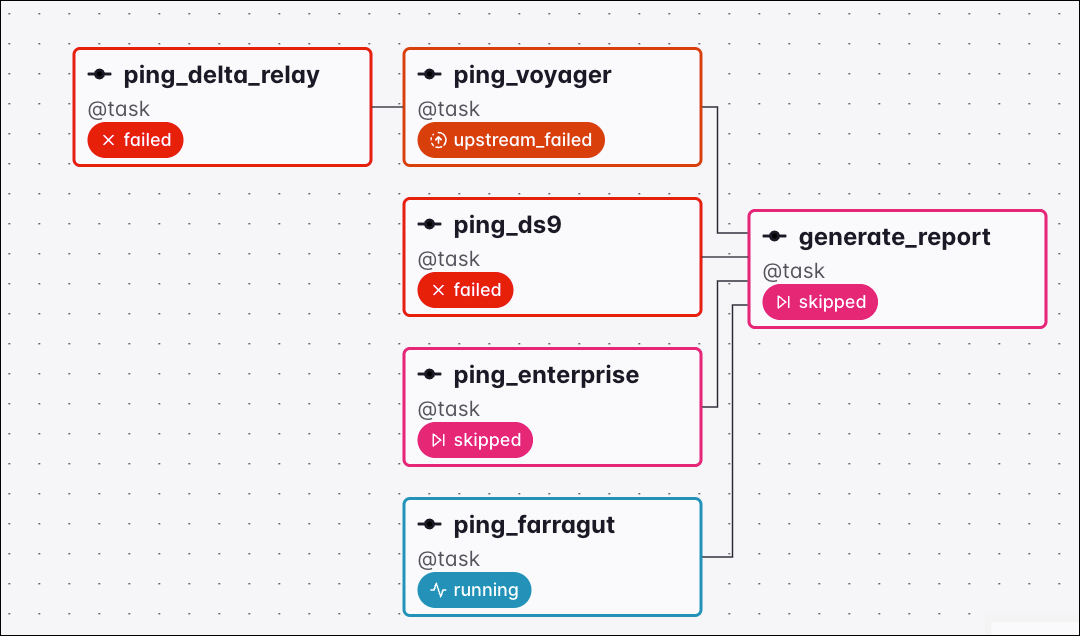

Similarly, as soon as any upstream task is in the state skipped, the downstream task is set to the state skipped and does not run.

If a task with the trigger rule all_success has one upstream task that is skipped and one that is failed, whether the downstream task is set to skipped or upstream_failed depends on which of the upstream tasks finishes first.

Trigger rule all_failed

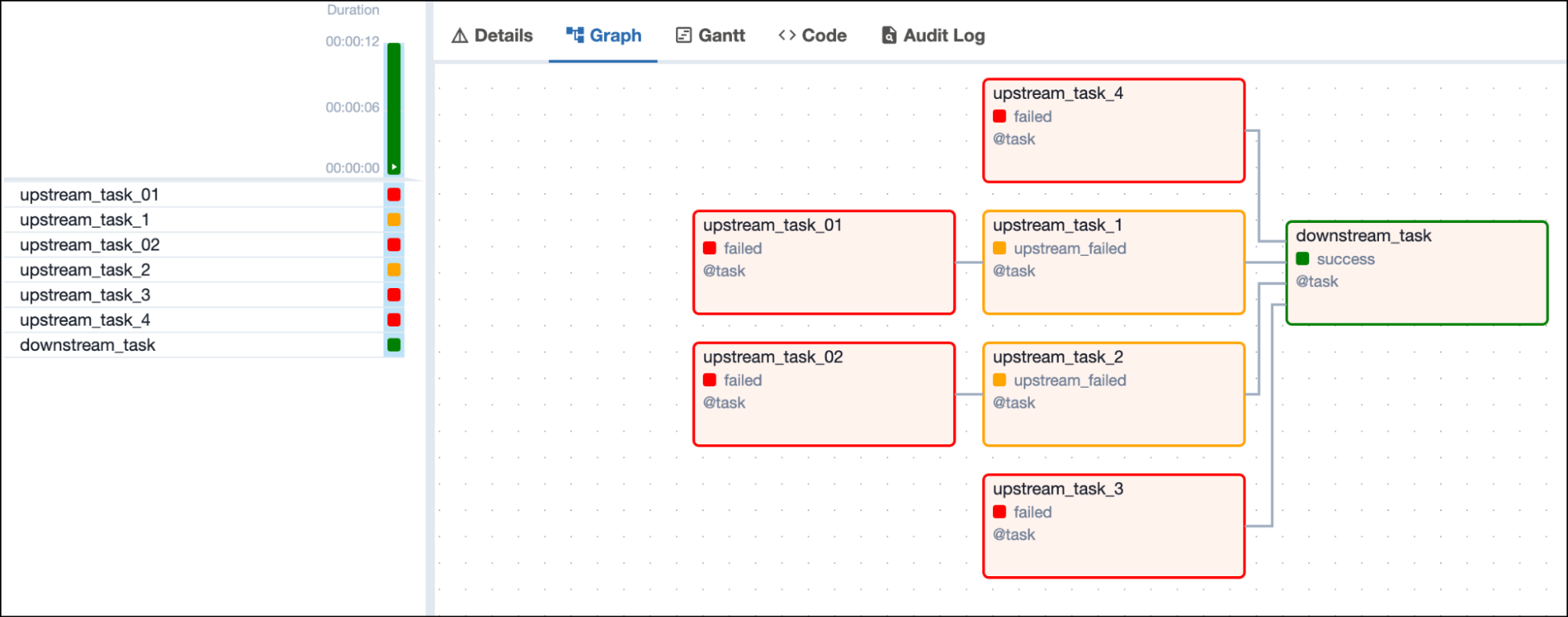

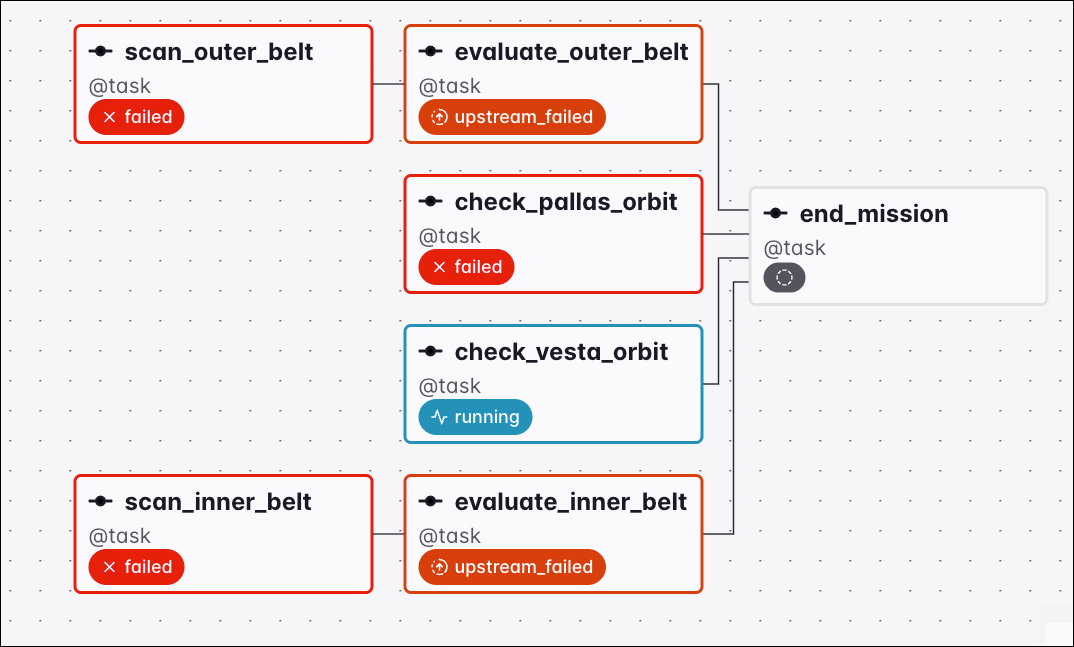

A task with the trigger rule all_failed only runs when all upstream tasks are in a failed or upstream_failed state.

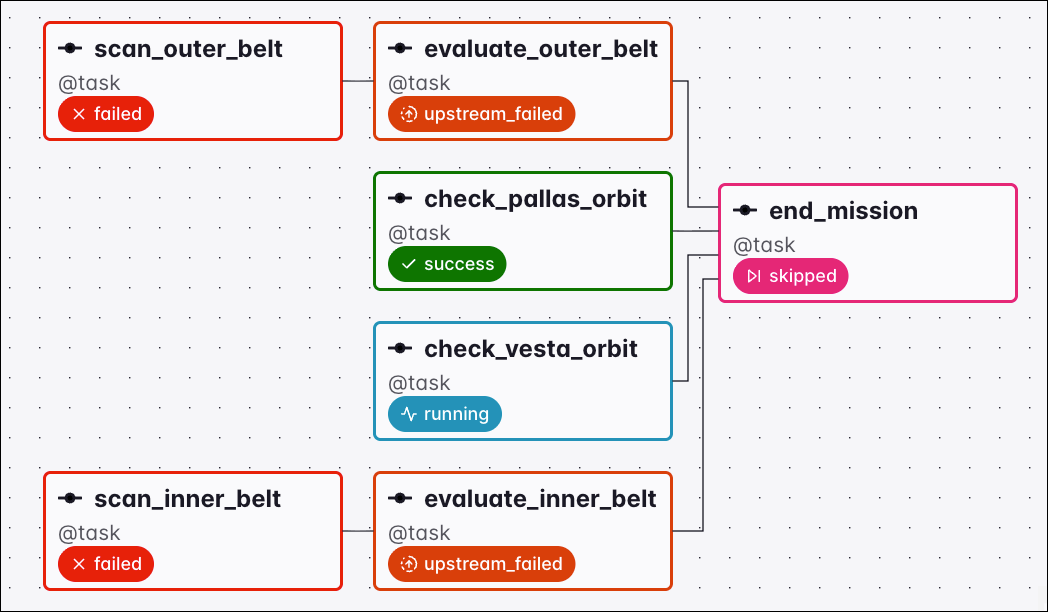

As soon as any upstream task is in the state success, the downstream task is set to the state skipped and does not run.

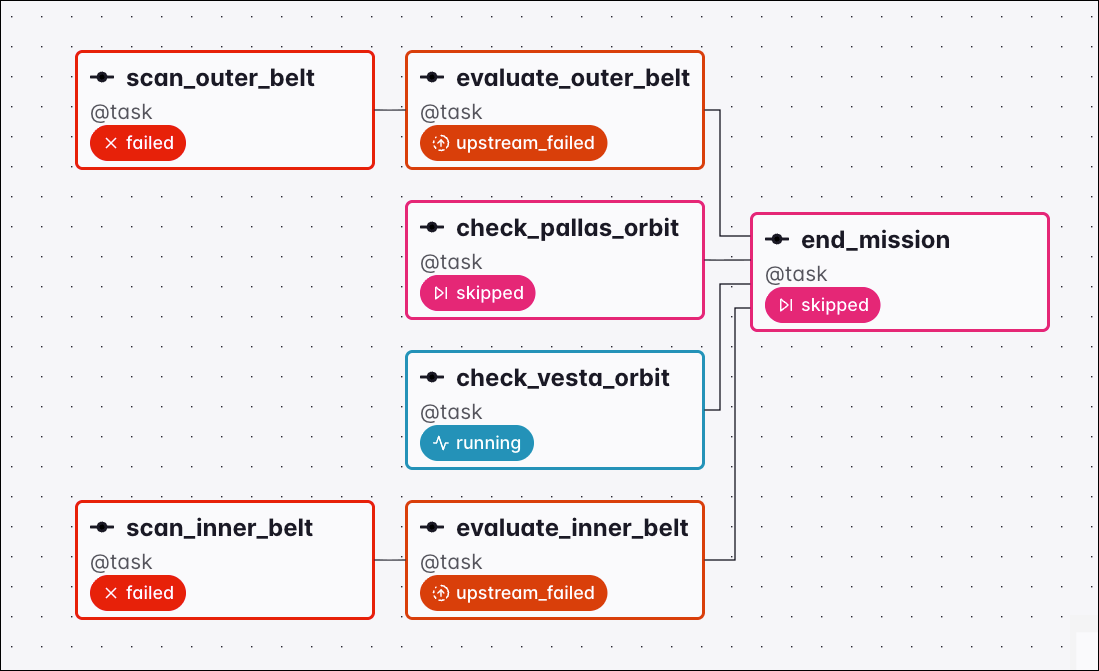

Analogously, as soon as any upstream task is in the state skipped, the downstream task is set to the state skipped and does not run.

Trigger rule all_done

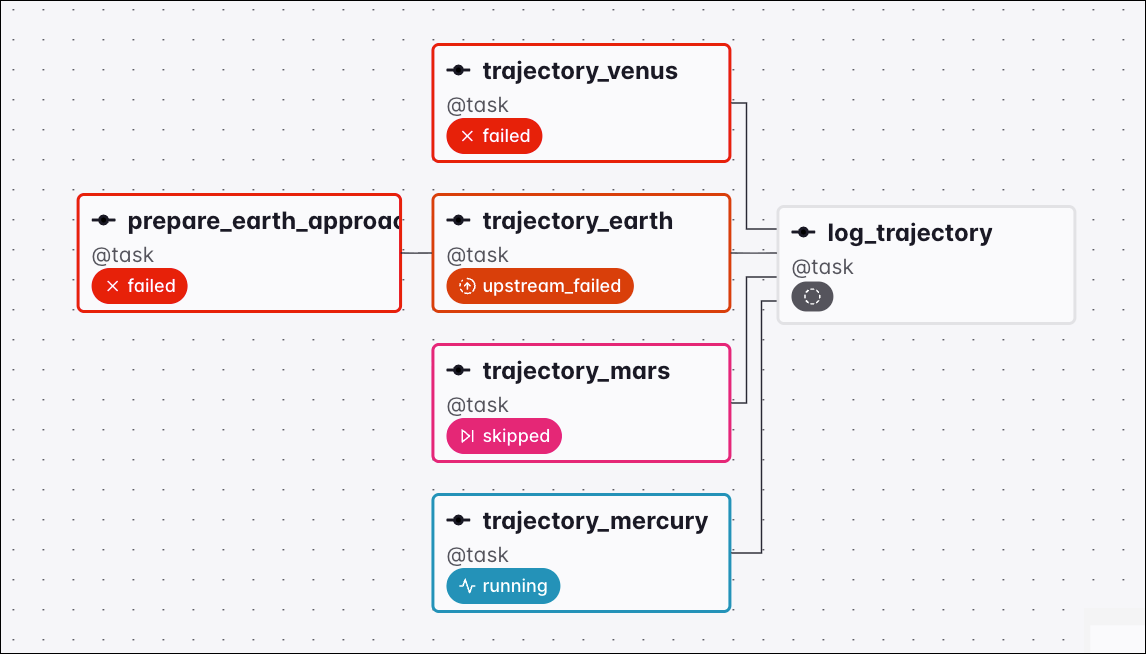

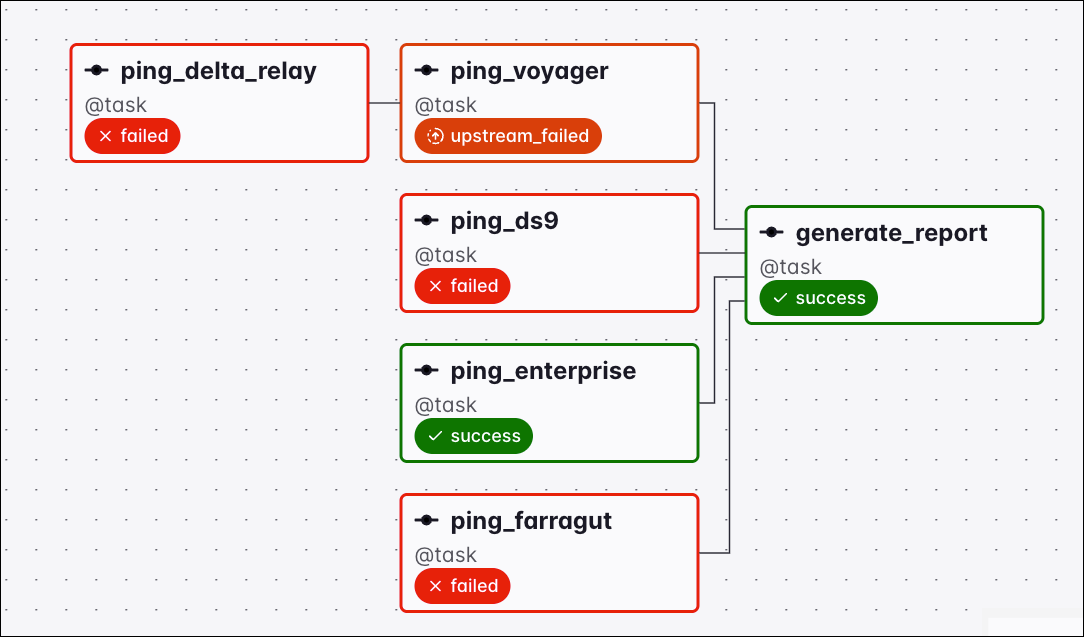

The all_done trigger rule will make a task wait until all upstream tasks are done with their execution.

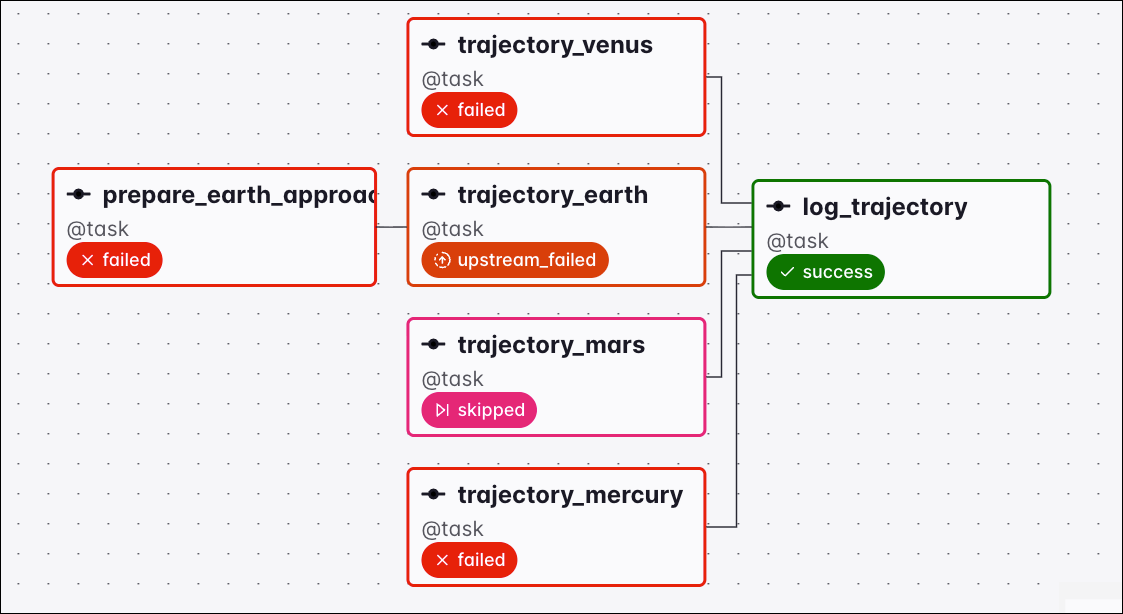

As soon as all tasks finish, no matter what their state is, the downstream task will run.

Trigger rule all_skipped

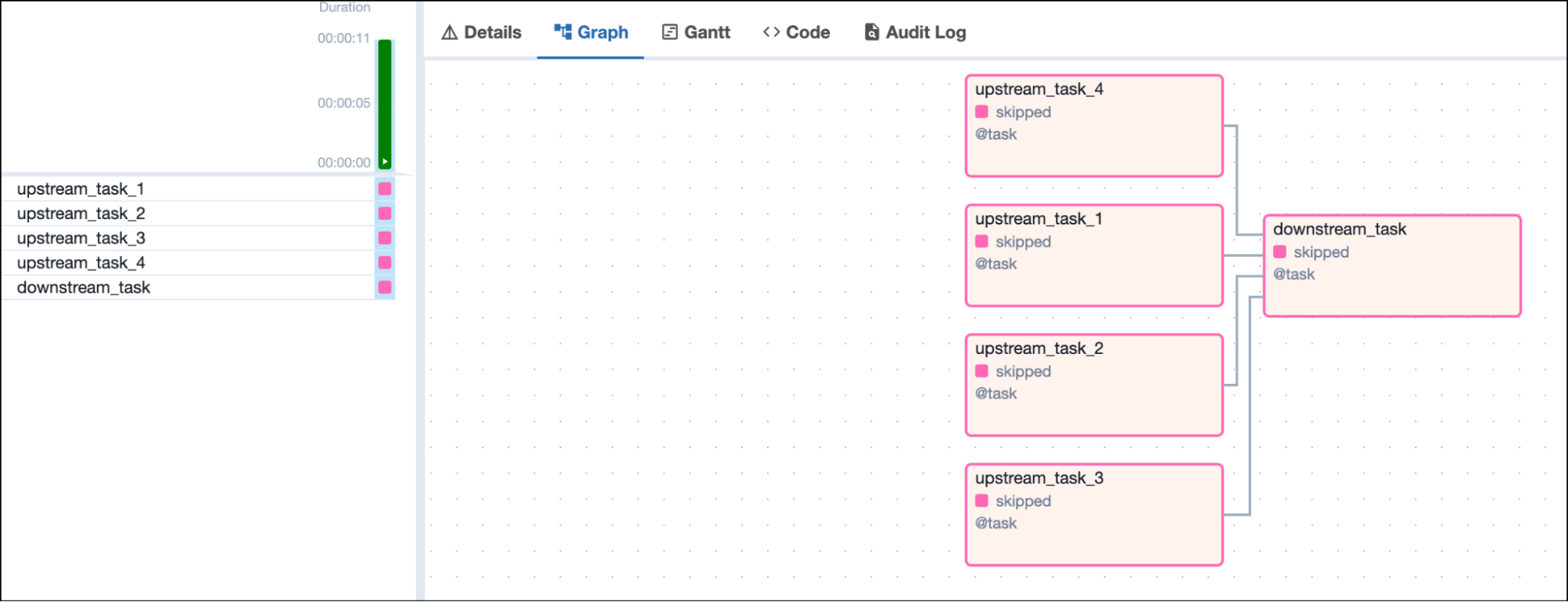

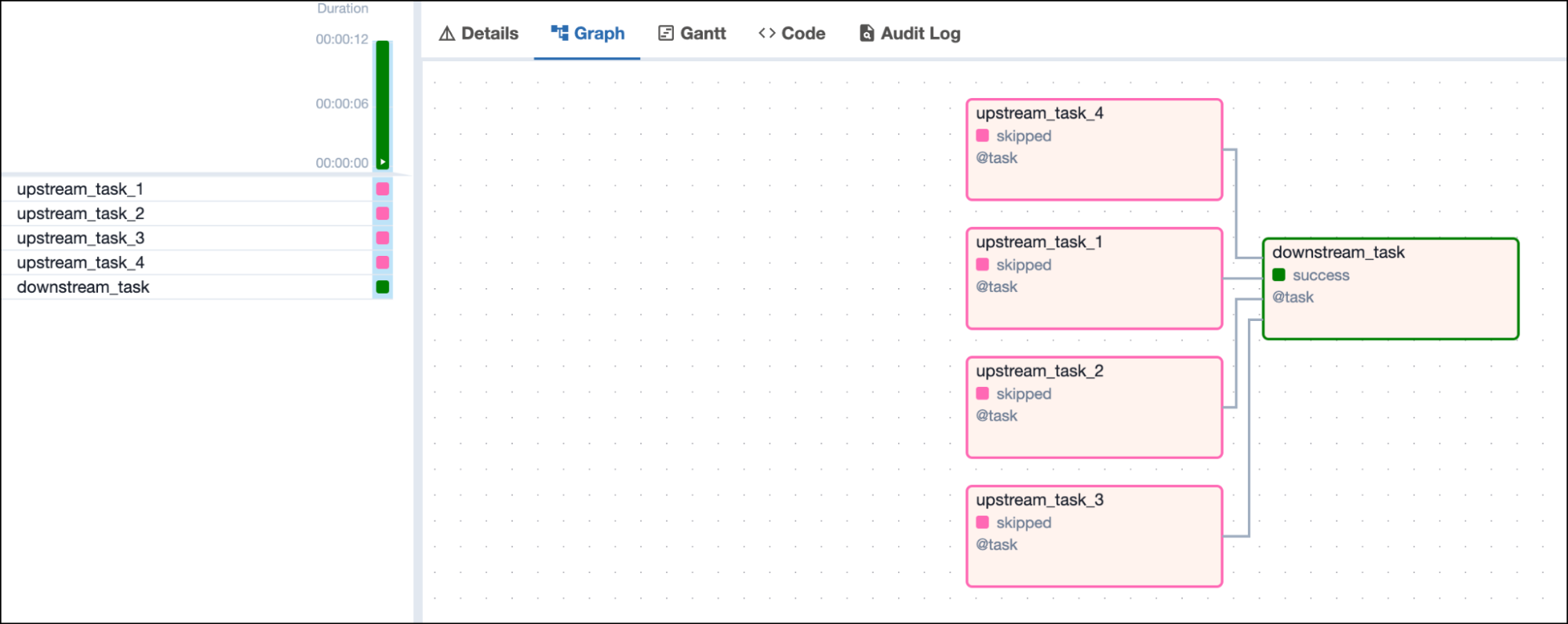

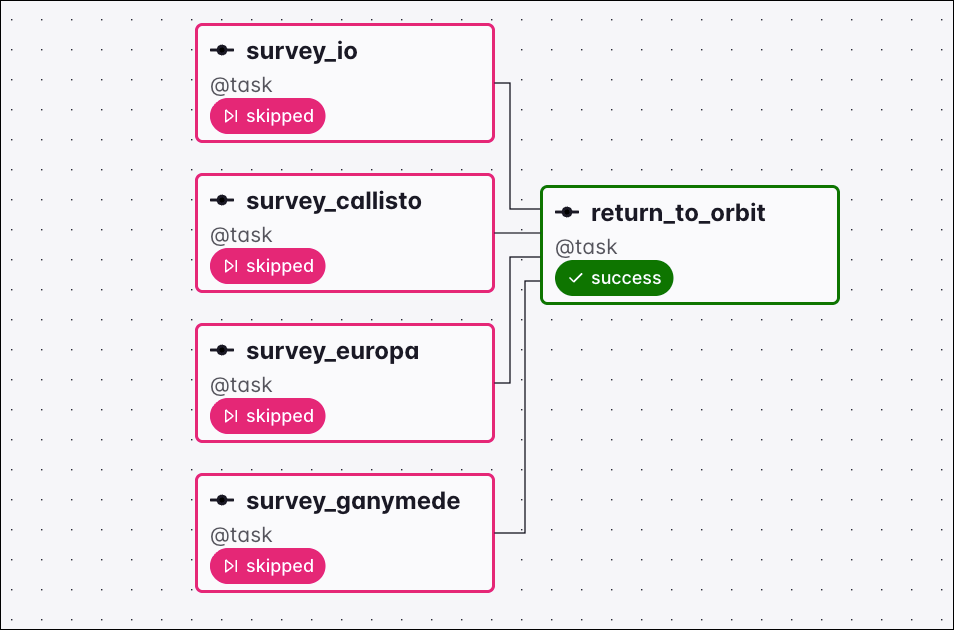

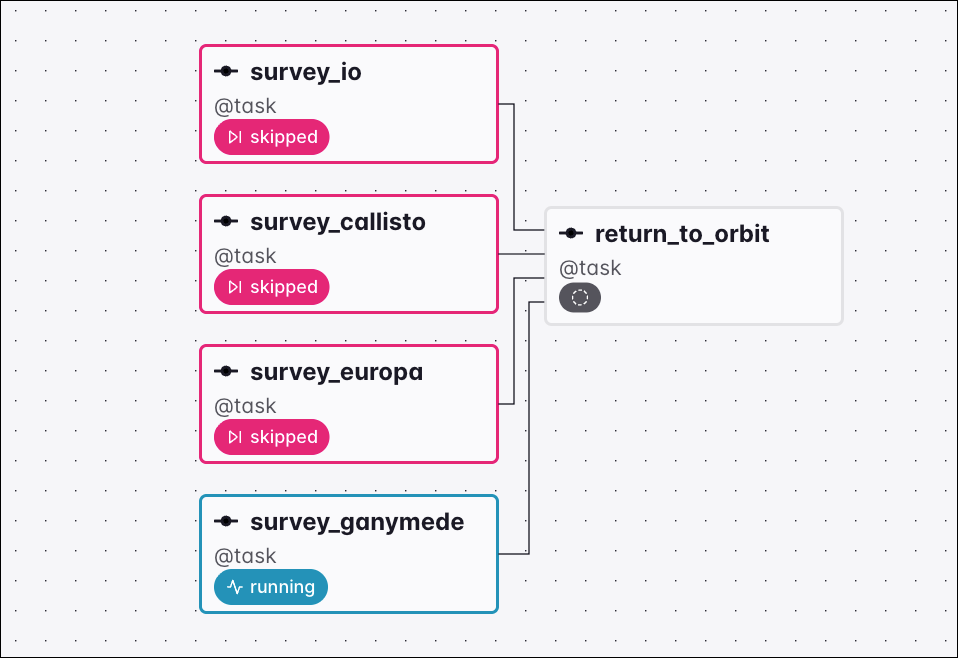

A task with the trigger rule all_skipped only runs when all upstream tasks have been skipped.

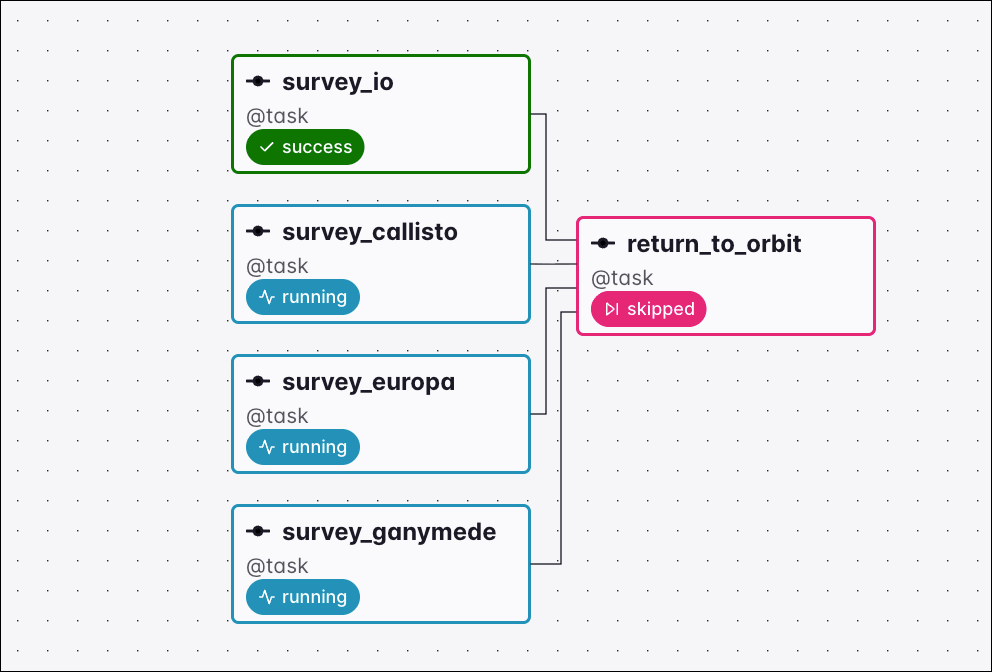

As soon as any upstream task is in the state success, failed, or upstream_failed, the downstream task with the trigger rule all_skipped is set to the state skipped and does not run.

Trigger rule one_failed

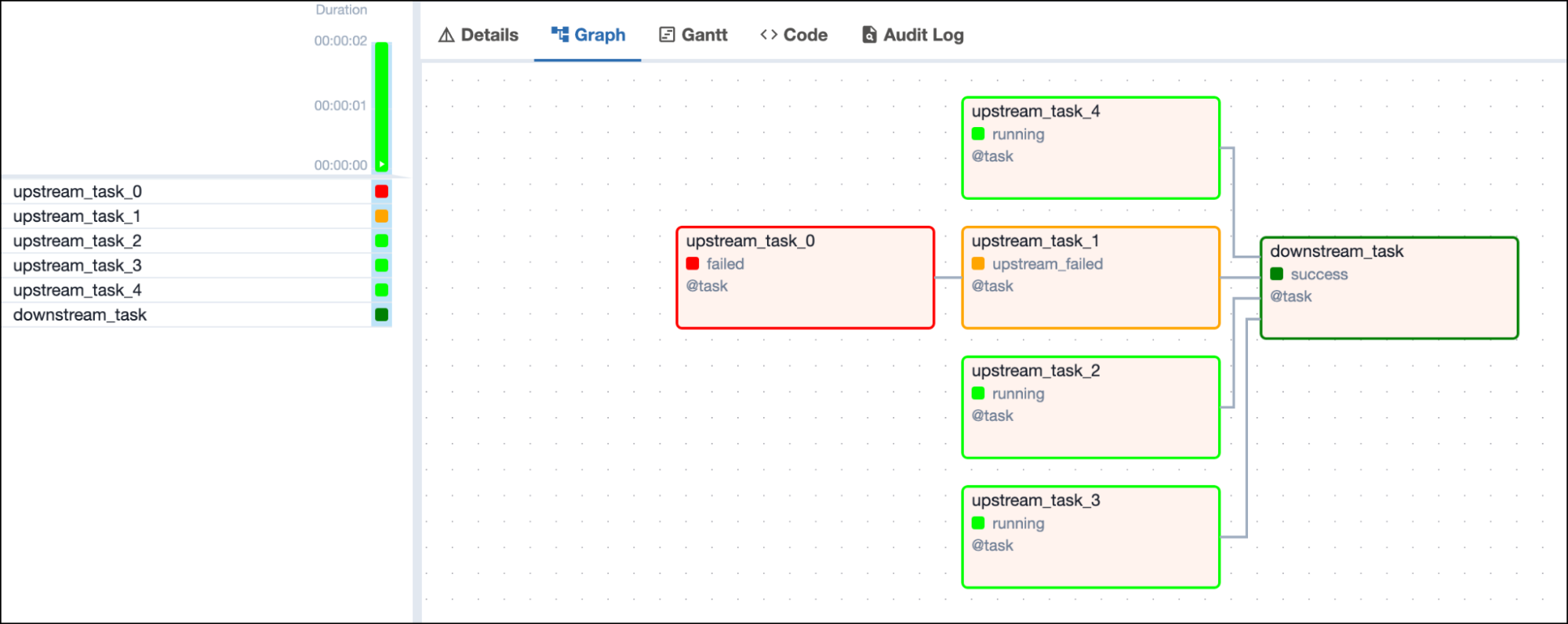

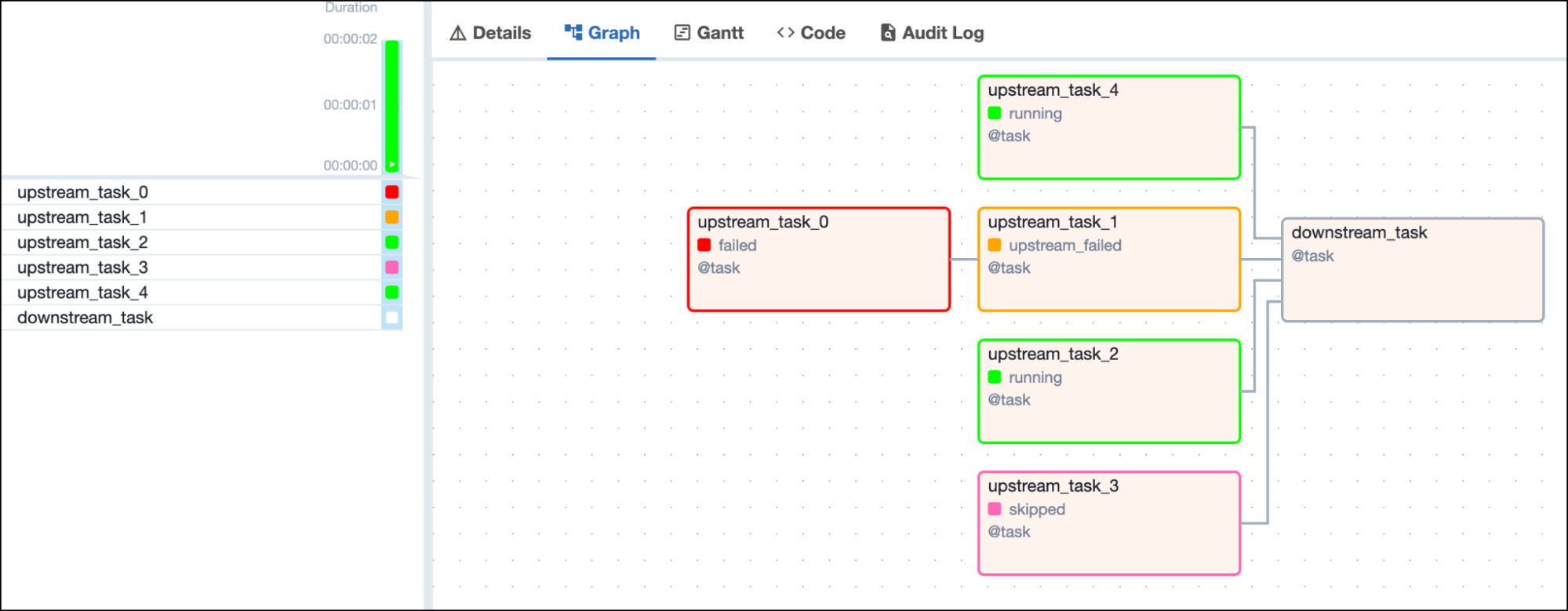

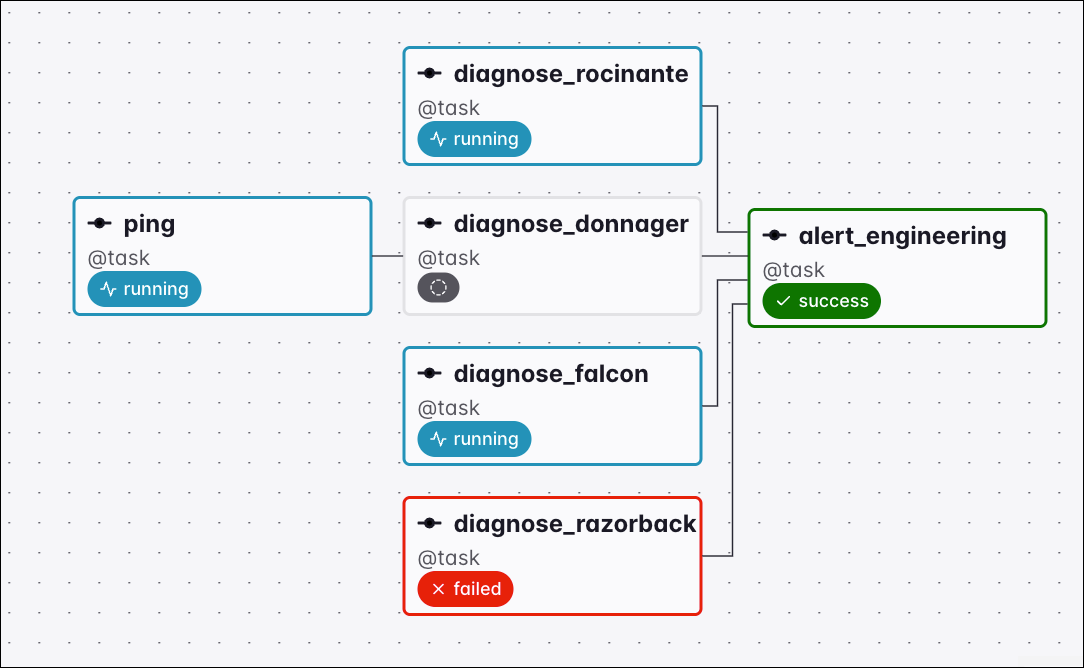

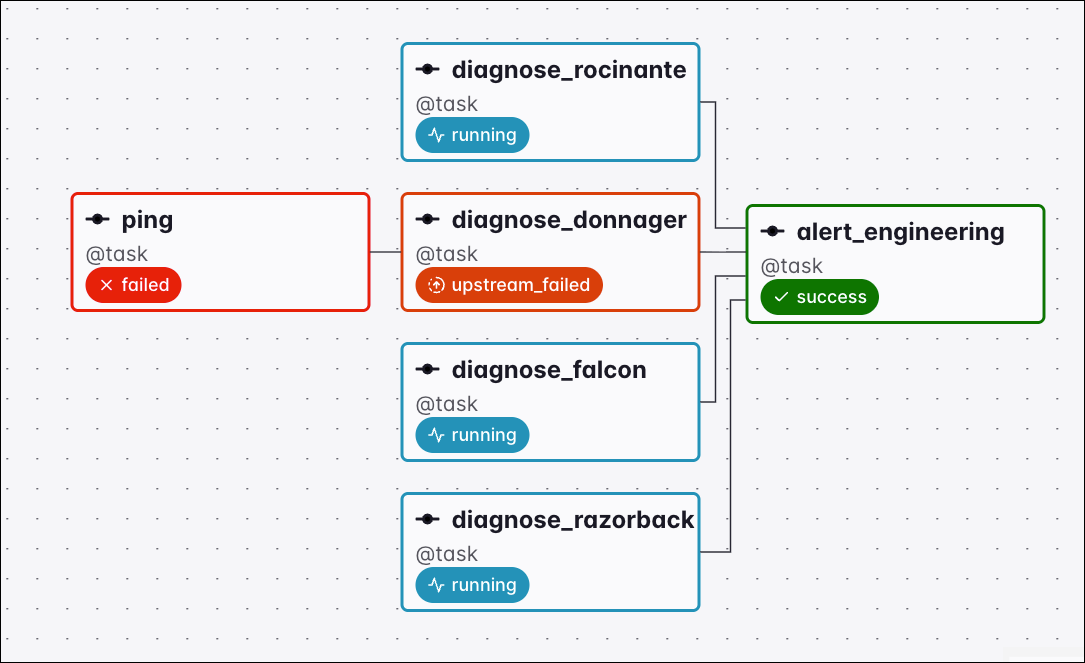

The one_failed trigger rule will make a task run as soon as at least one of its upstream tasks is in either the failed or upstream_failed state.

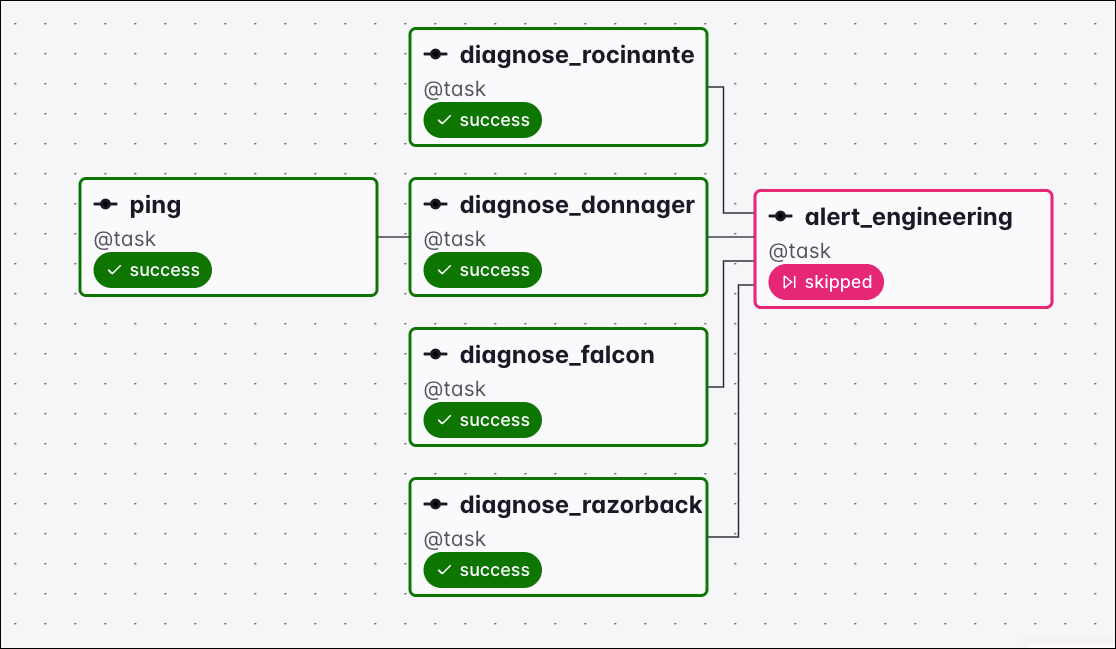

If all upstream tasks have completed and none of them are in the failed or upstream_failed state, the downstream task will be set to the state skipped.

Trigger rule one_success

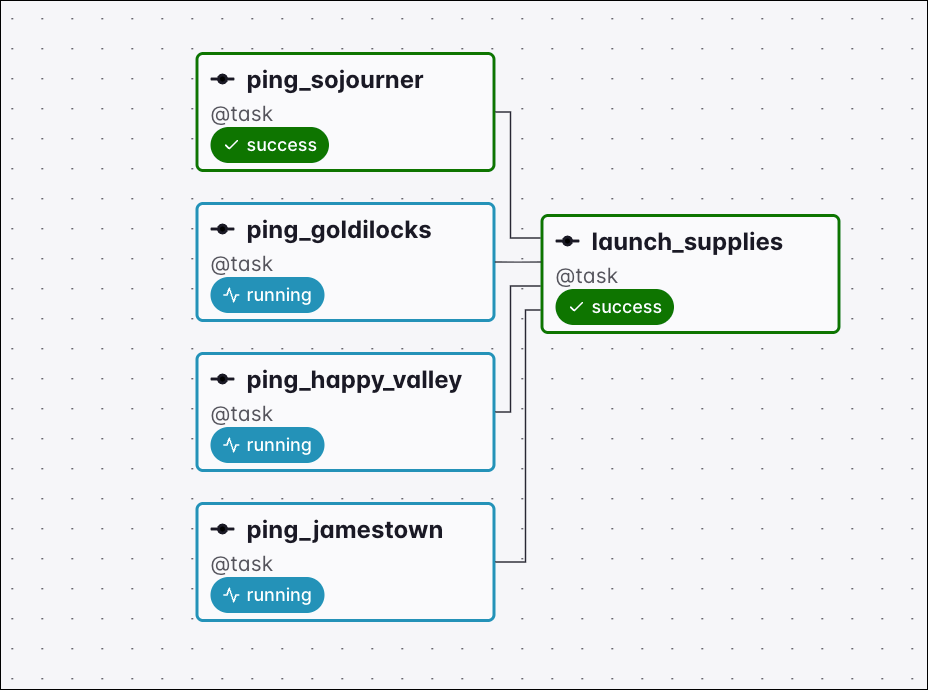

The one_success trigger rule will make a task run as soon as at least one of its upstream tasks is in the success state.

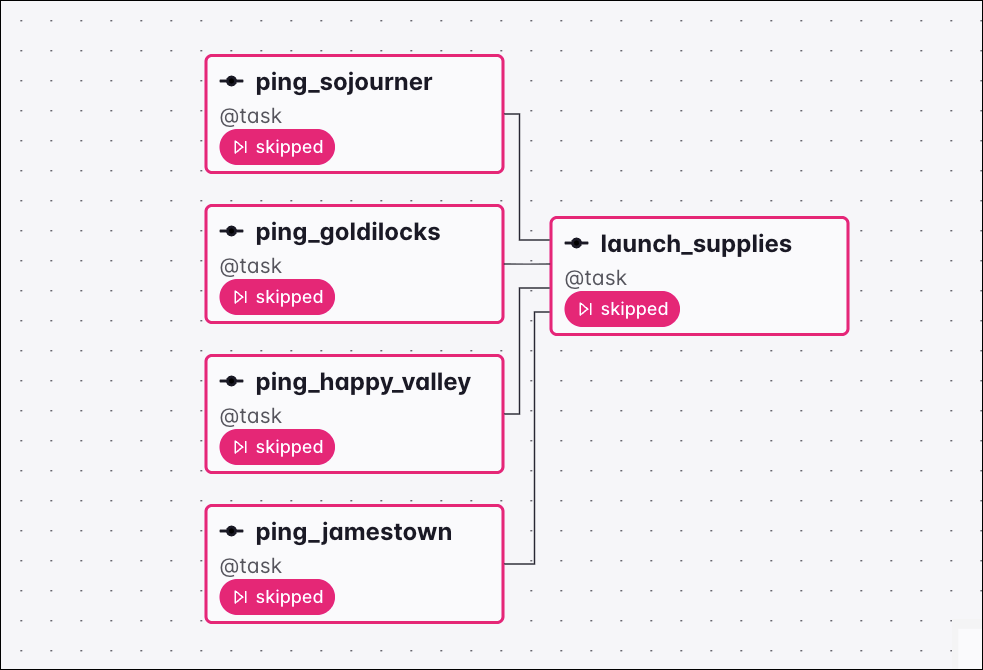

If all upstream tasks have been skipped, the downstream task with the one_success trigger rule is set to the state skipped as well.

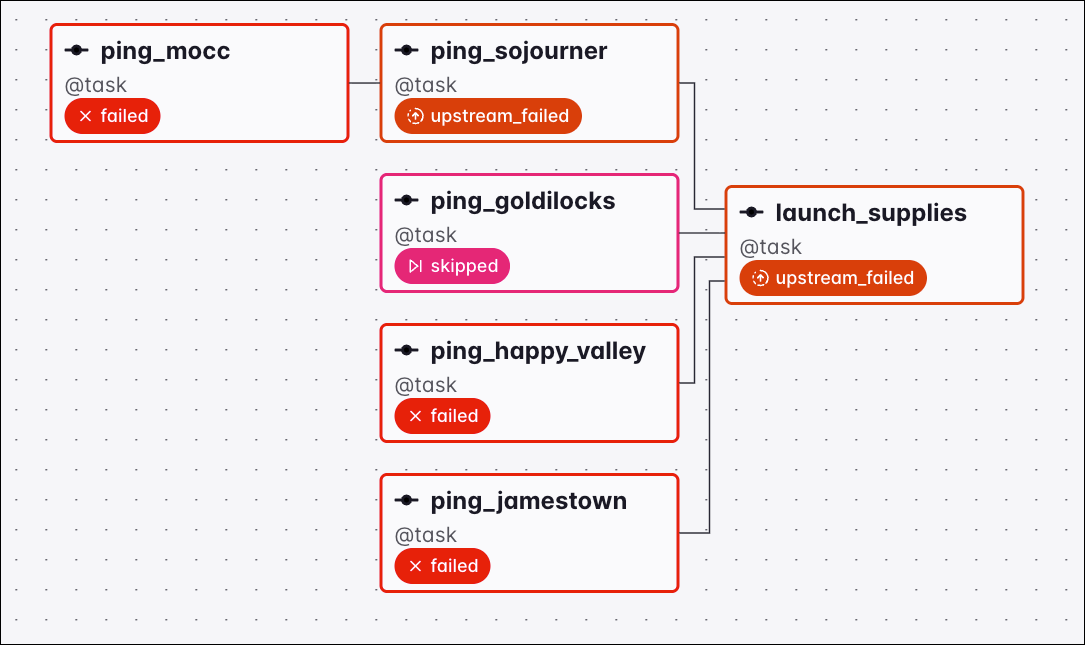

If all upstream tasks have completed and at least one of them is in the failed or upstream_failed state, the downstream task will be set to the state upstream_failed.

Trigger rule one_done

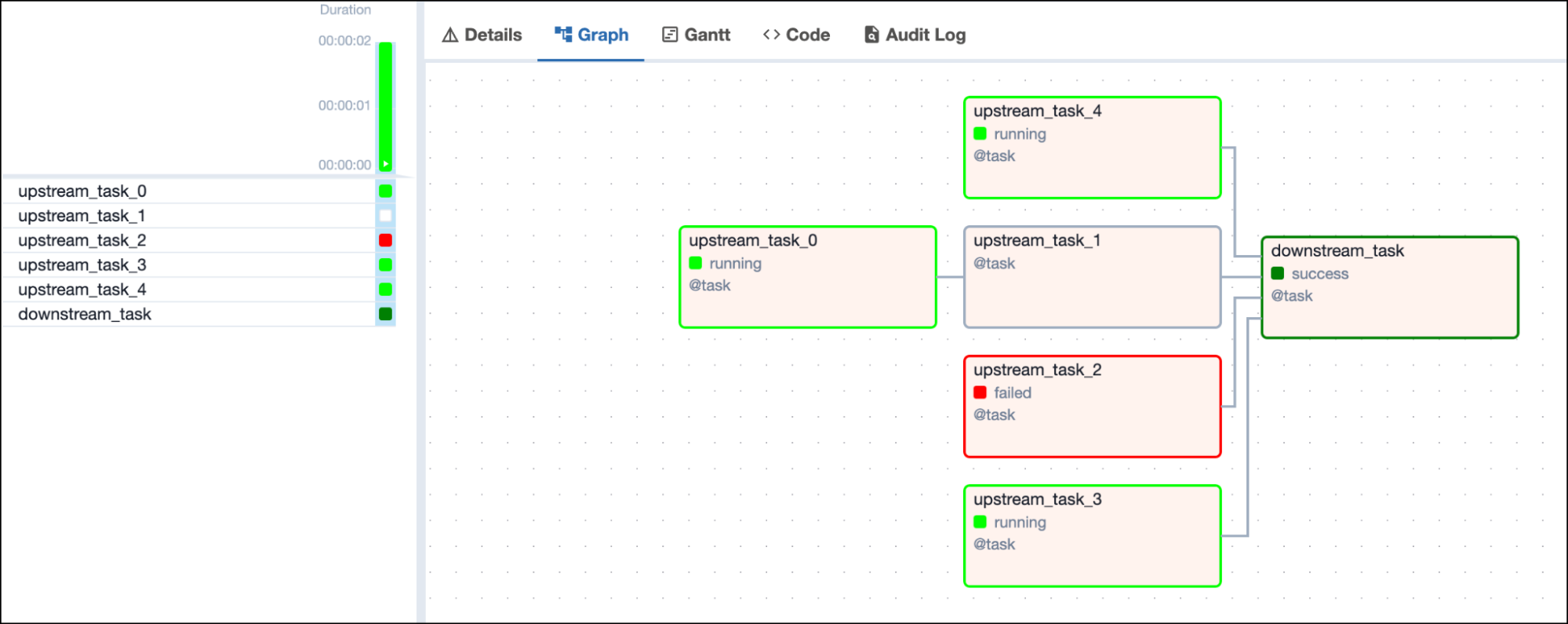

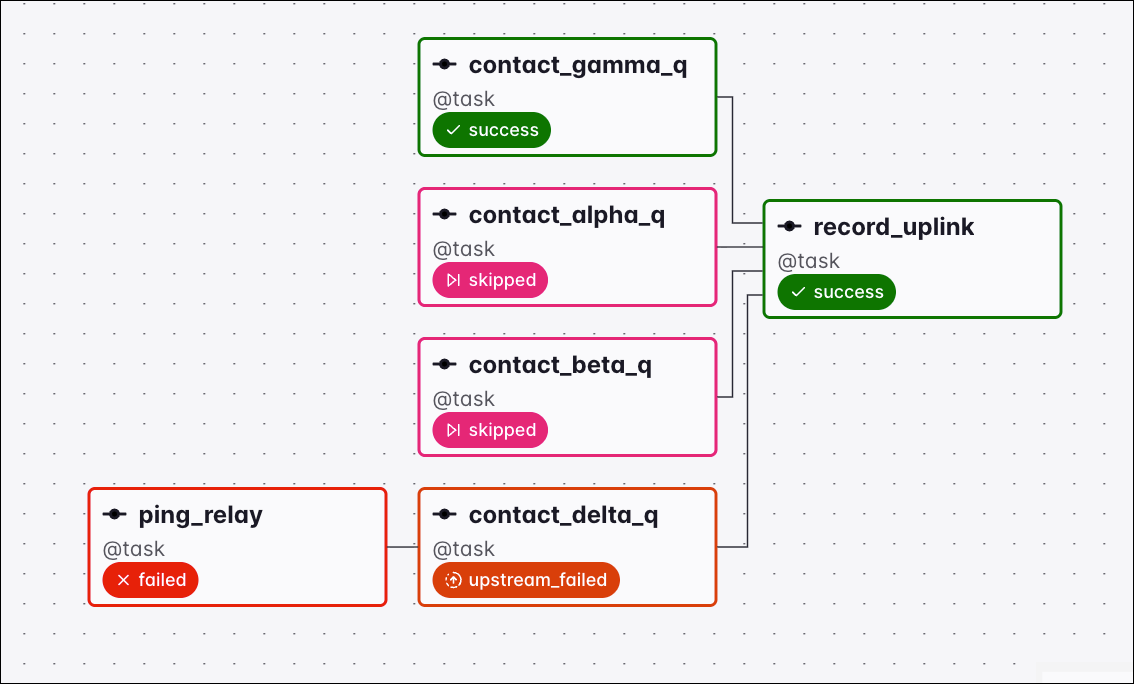

The one_done trigger rule makes a task run as soon as at least one of its upstream tasks is in either the success or failed state. Upstream tasks with skipped or upstream_failed states are not considered.

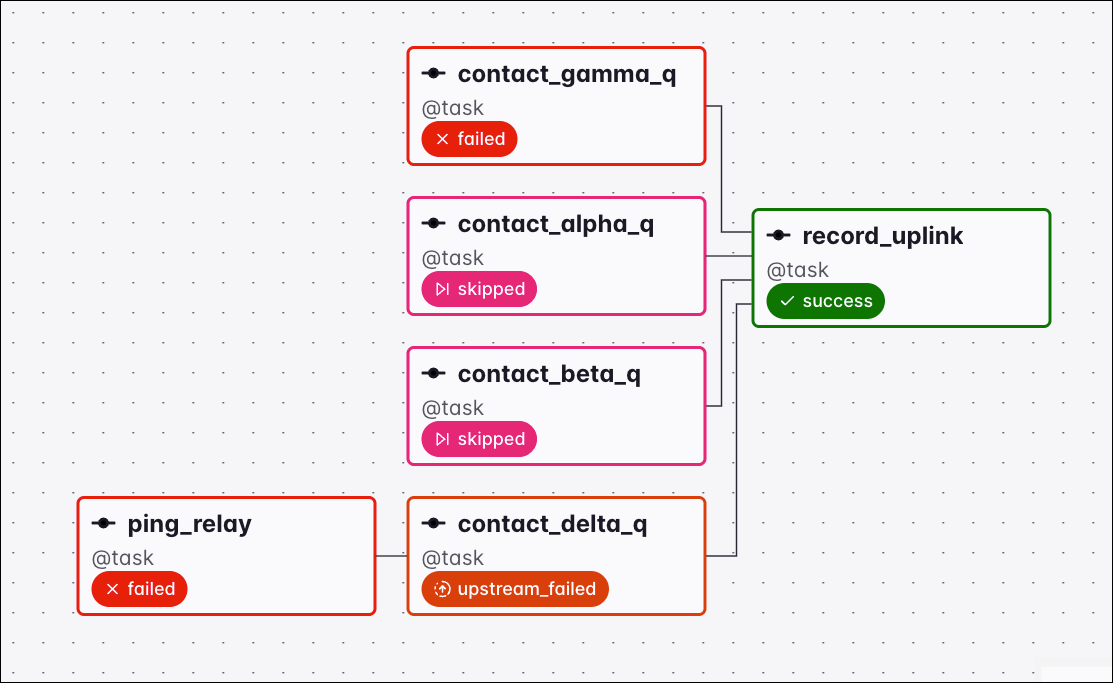

Once one upstream task finishes (either in the success or failed state), the downstream task runs.

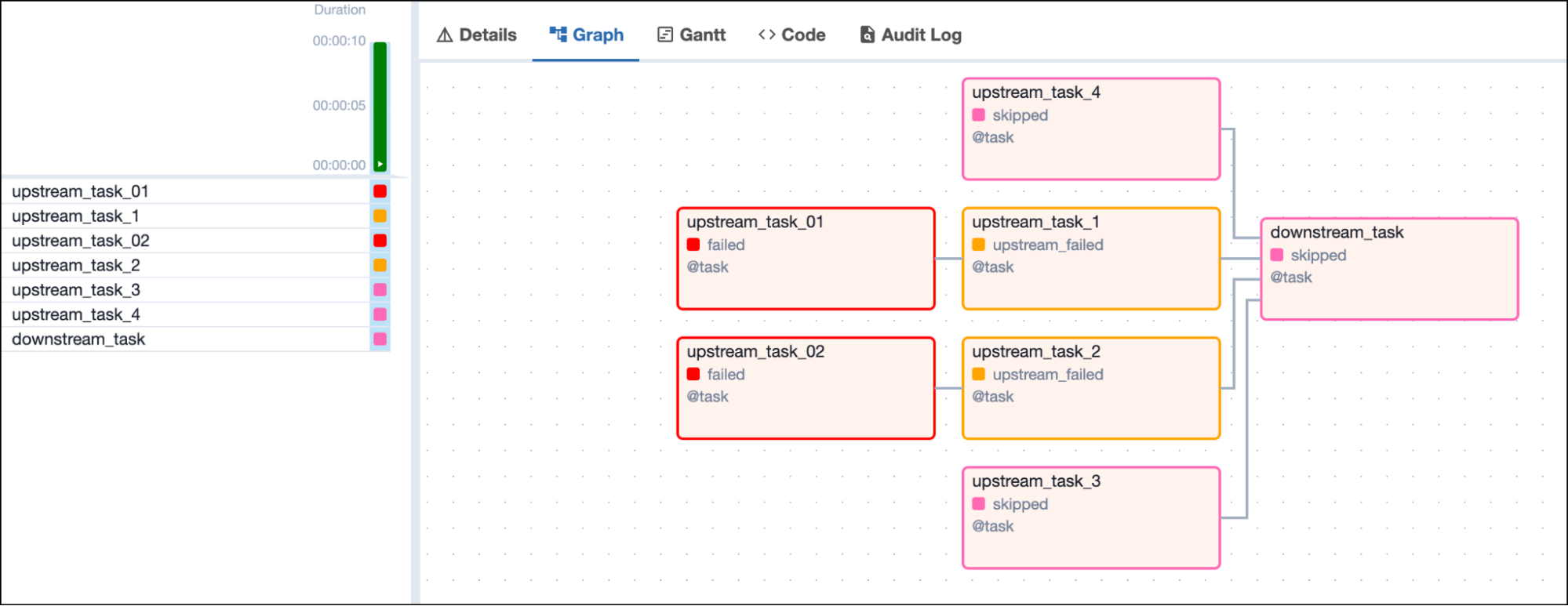

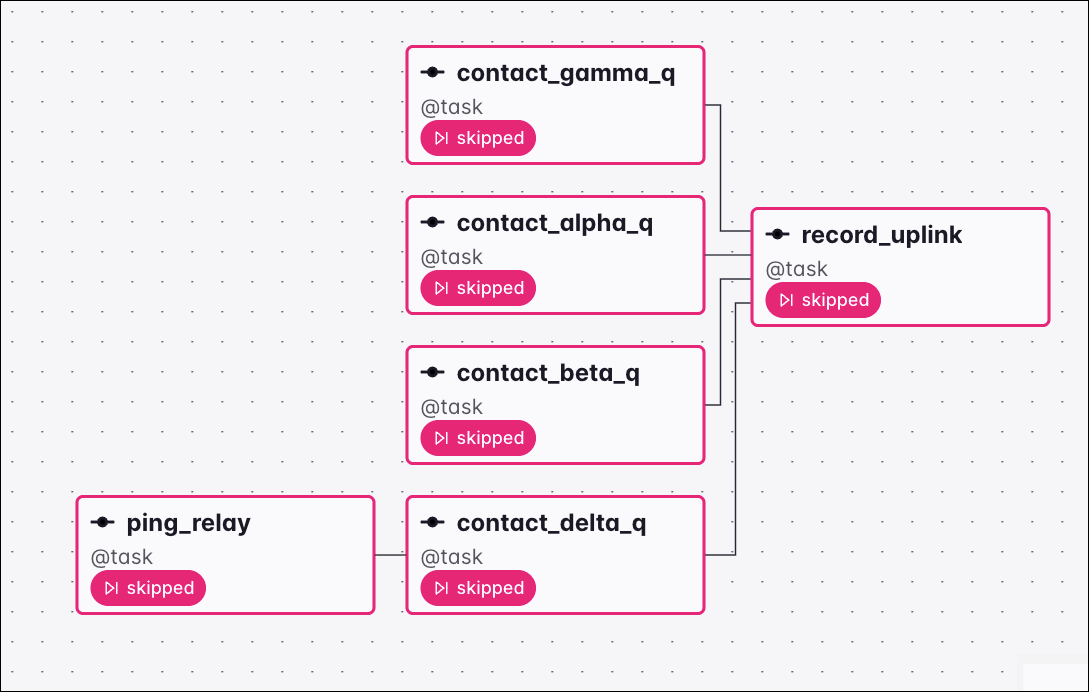

If all upstream tasks are either in skipped or upstream_failed states, the downstream task with the one_done trigger rule is set to the state skipped.

Trigger rule none_failed

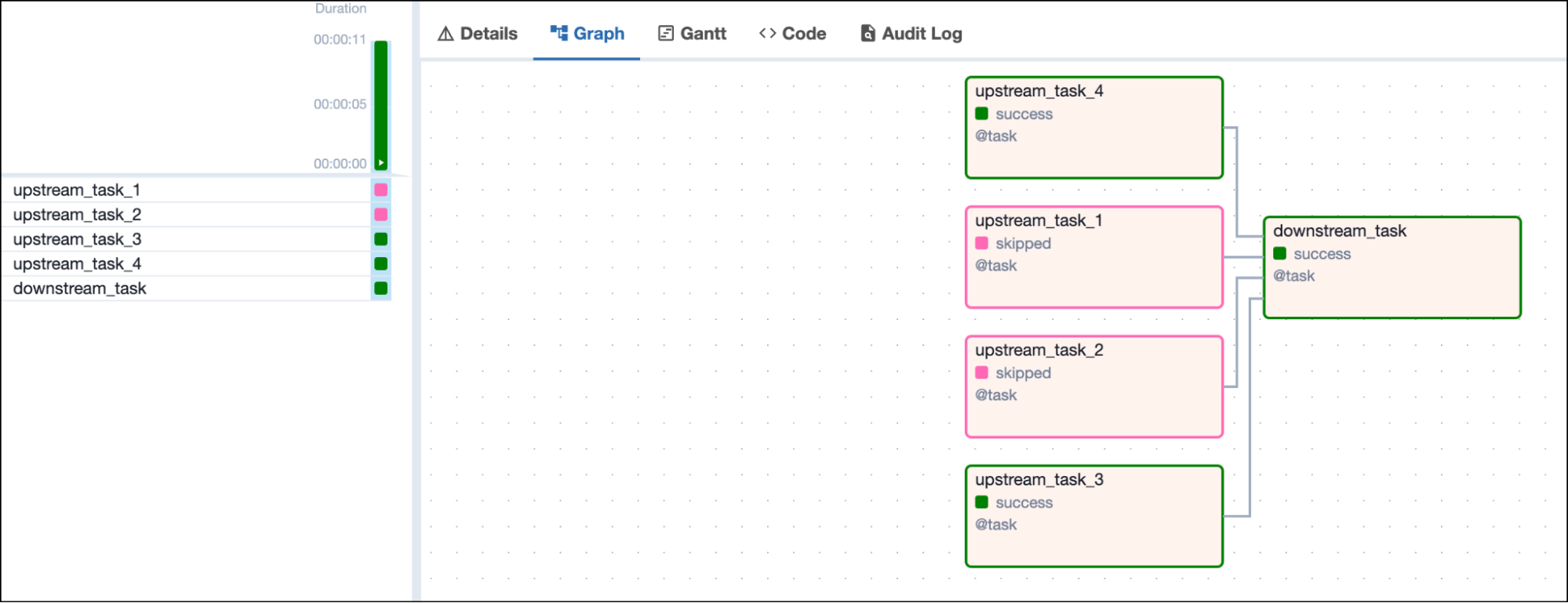

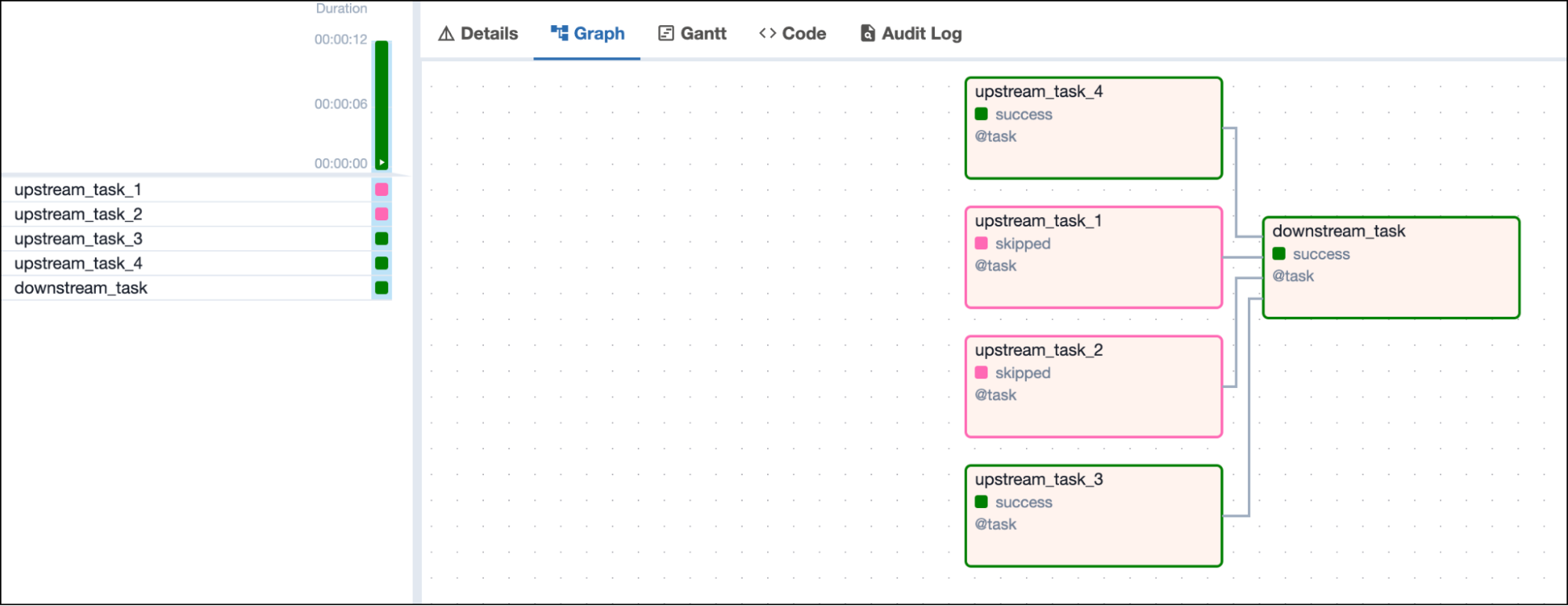

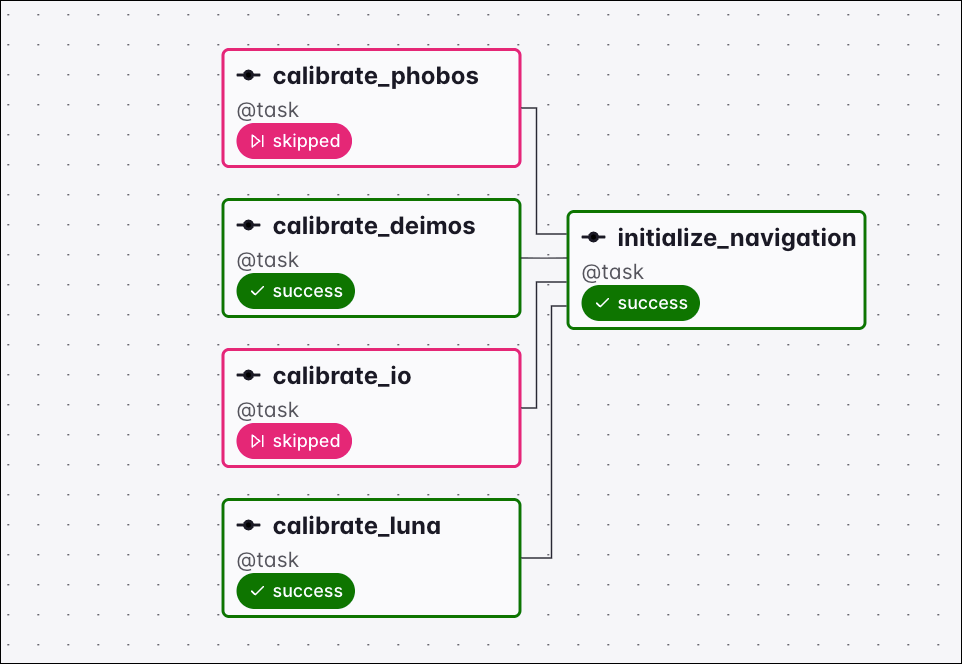

The none_failed trigger rule makes a task run only when all upstream tasks have either succeeded or been skipped.

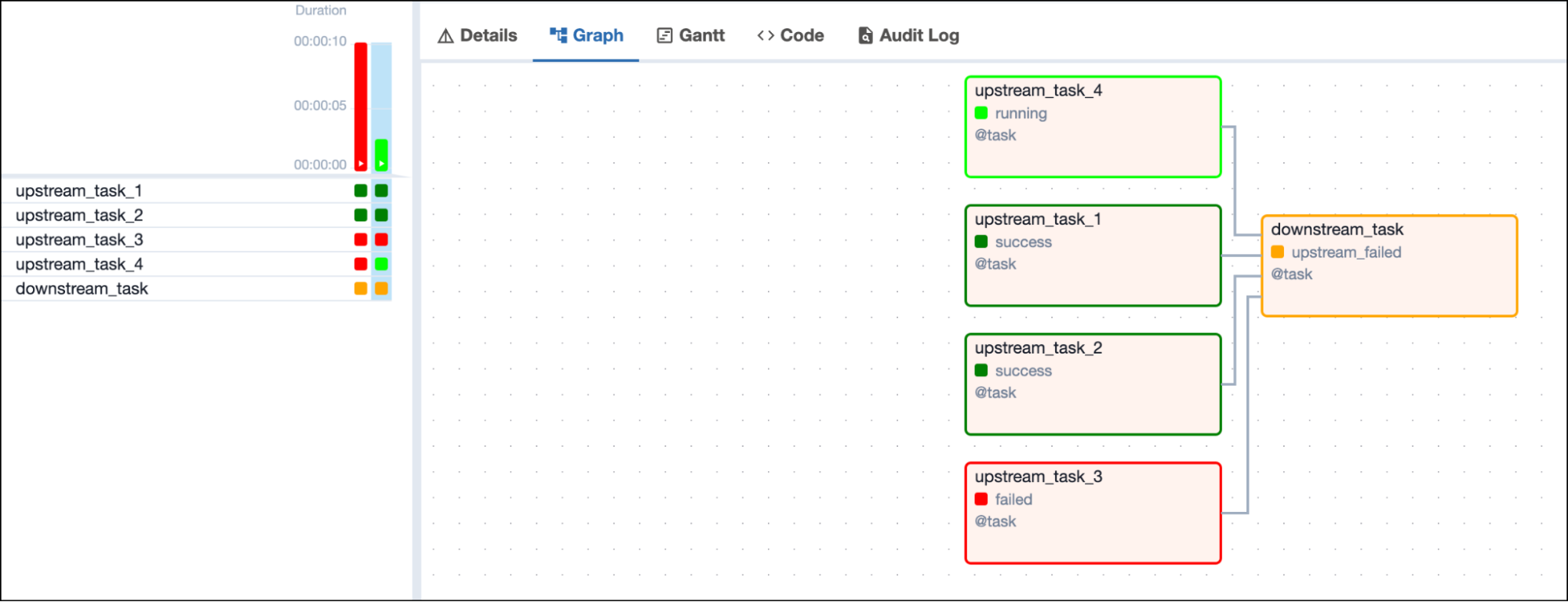

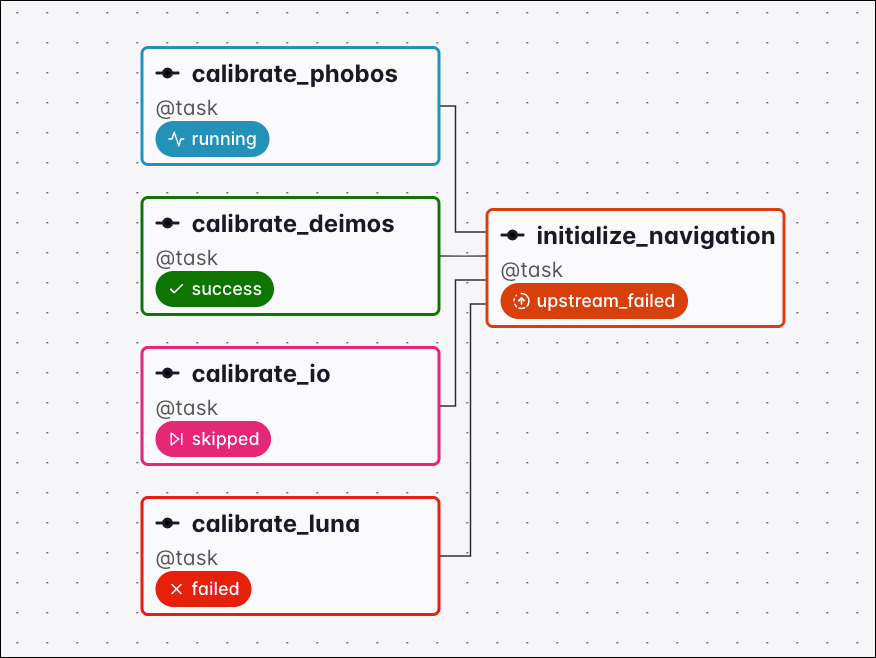

As soon as any upstream task is in the state failed or upstream_failed, the downstream task is set to the state upstream_failed and does not run.

Trigger rule none_failed_min_one_success

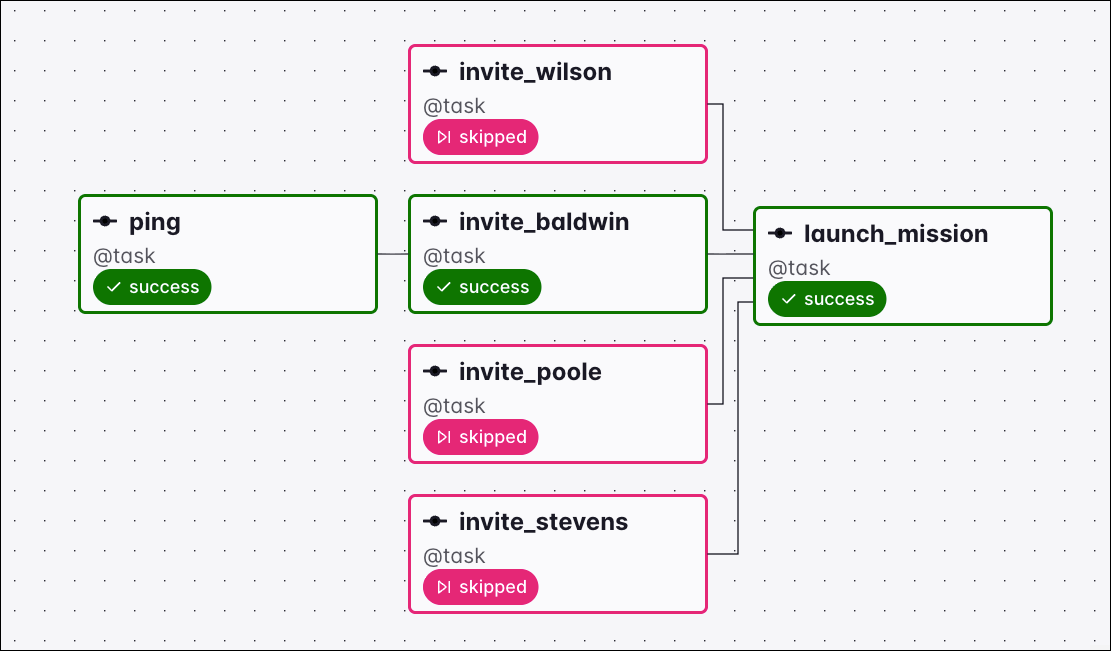

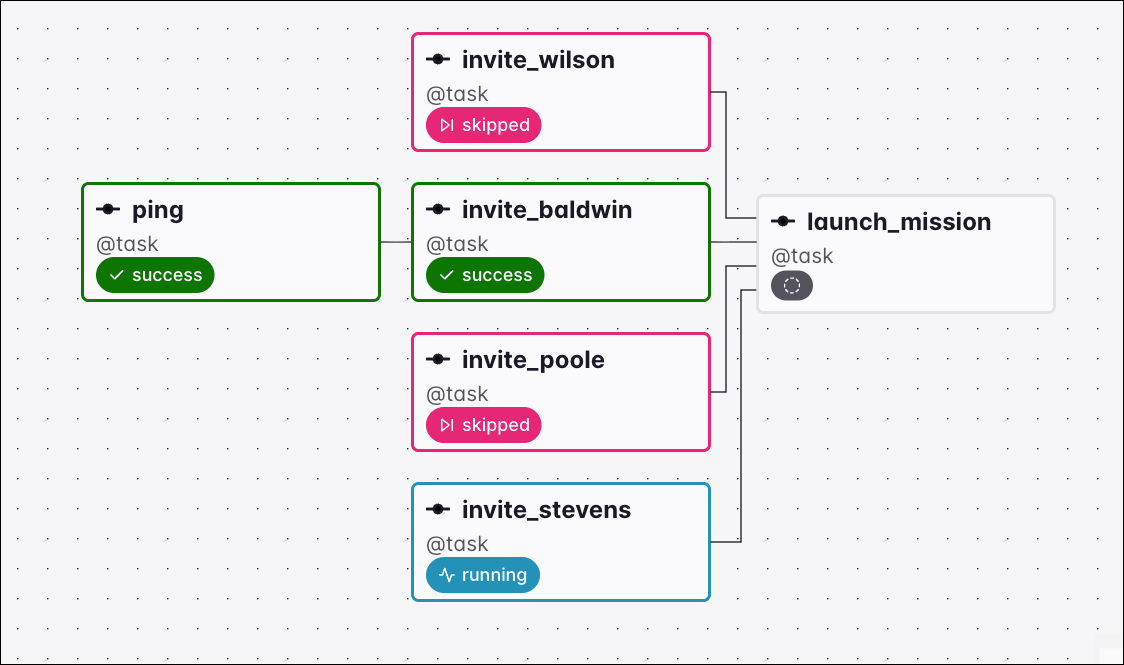

Tasks using the none_failed_min_one_success trigger rule run only when three conditions are met:

1. All upstream tasks are finished.
2. No upstream tasks are in the failed or upstream_failed state.
3. At least one upstream task is in the success state.

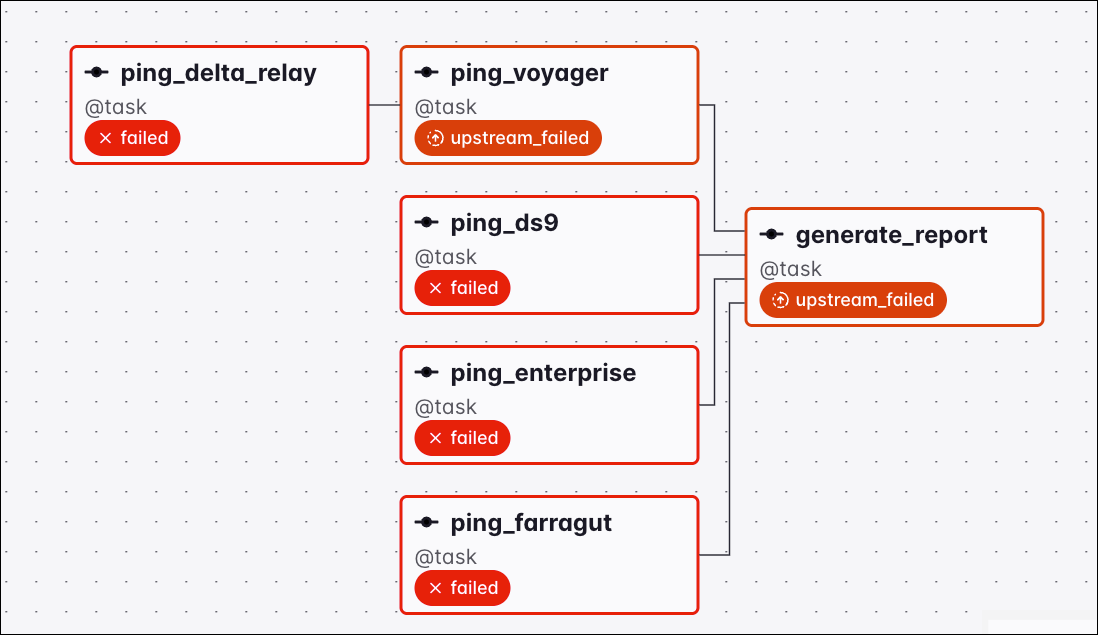

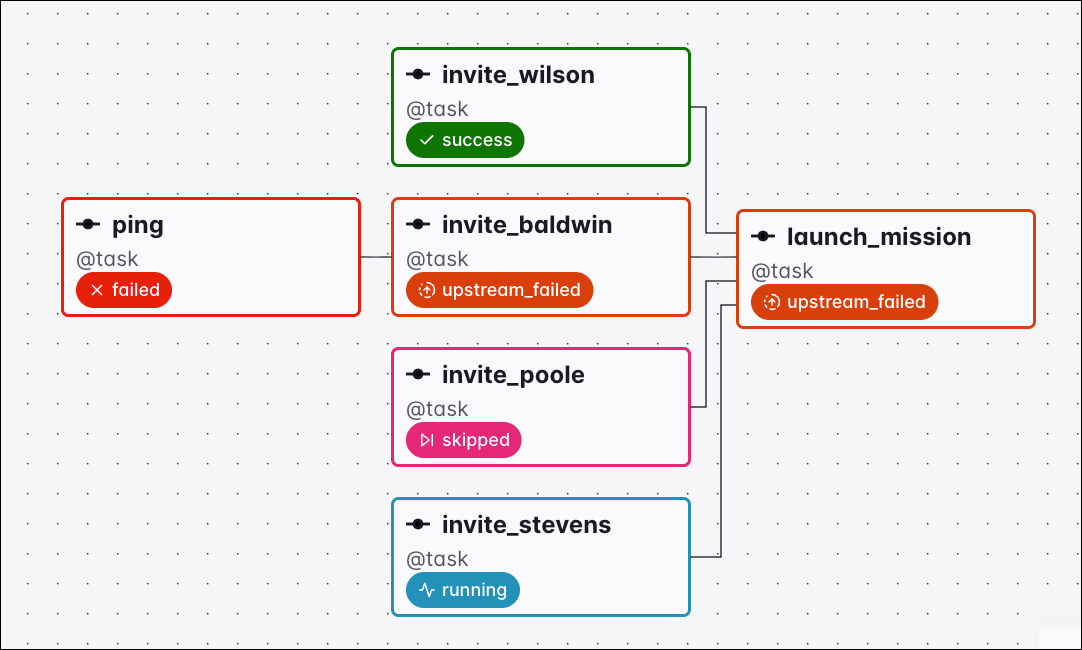

If any upstream task is in the failed or upstream_failed state, the downstream task is set to the state upstream_failed and does not run.

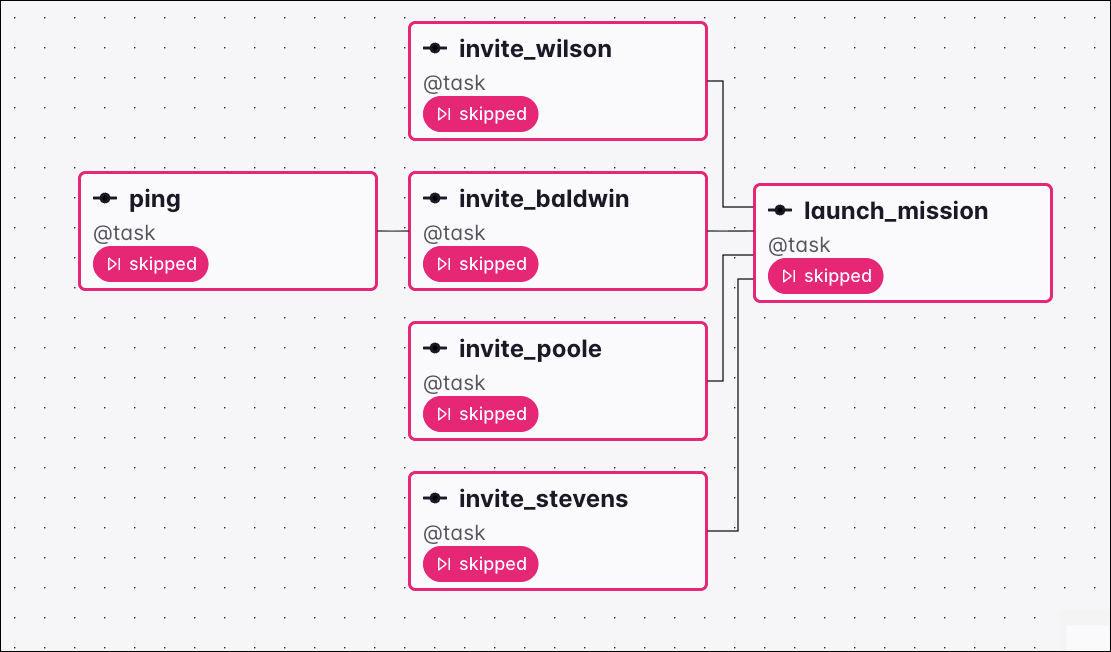

If all upstream tasks are in the skipped state, the downstream task is set to the state skipped and does not run.

Trigger rule none_skipped

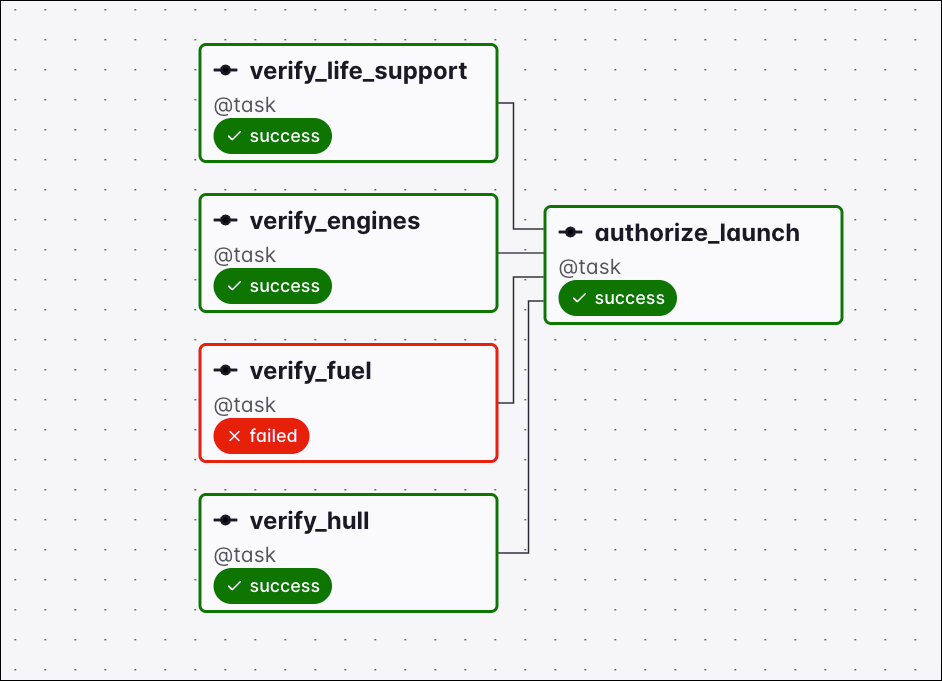

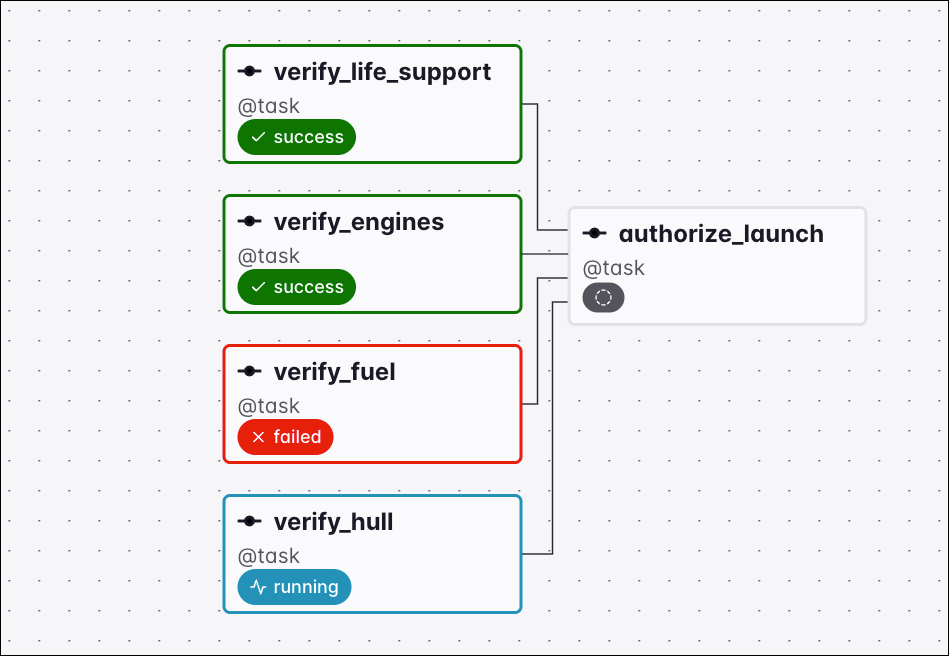

Tasks using the none_skipped trigger rule run only when no upstream task is in the skipped state. Upstream tasks can be in any other state: success, failed, or upstream_failed.

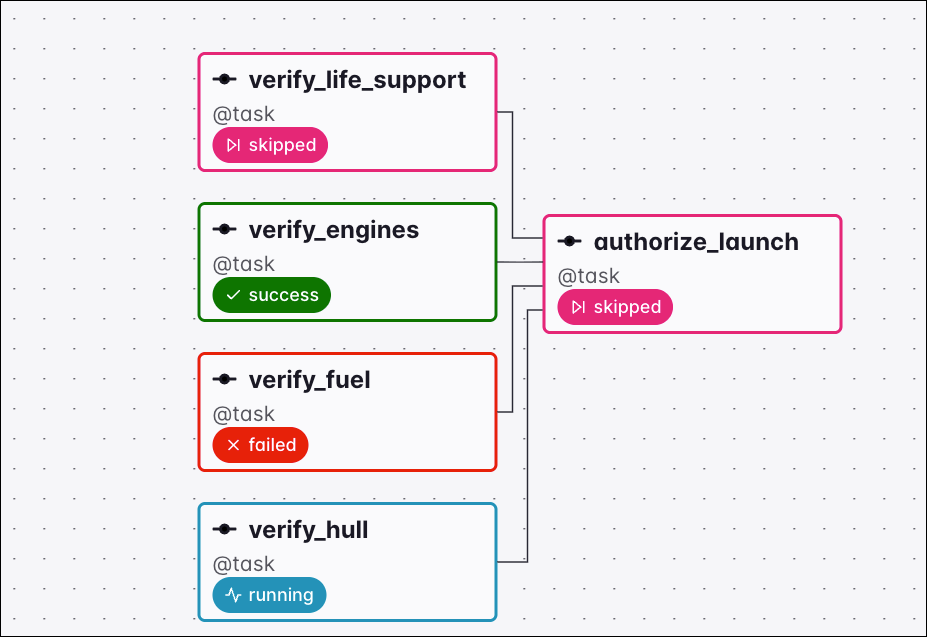

If any upstream task is in the skipped state, the downstream task is set to the state skipped and does not run.

Trigger rule always

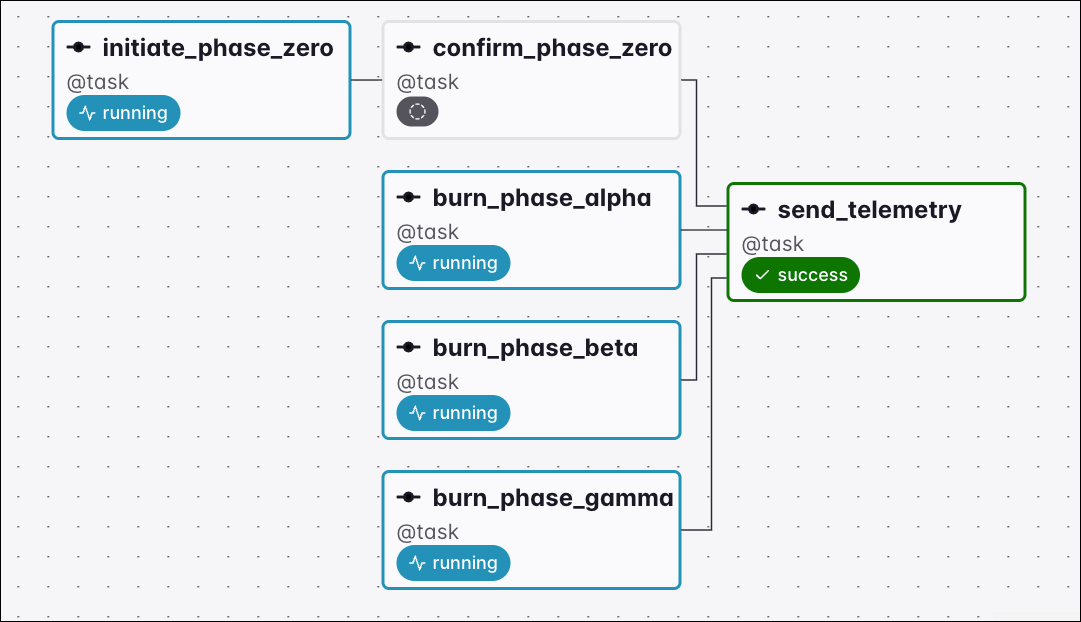

A task with the trigger rule always runs as soon as the DAG run is started, regardless of the state of its upstream tasks.

Conclusion and Next steps

Congrats! Now you know all about Airflow trigger rules and are ready to use them in your DAGs! To experience how easy it is to run these DAGs in production, sign up now for a free Astro trial.
