Guide

Logging in Airflow

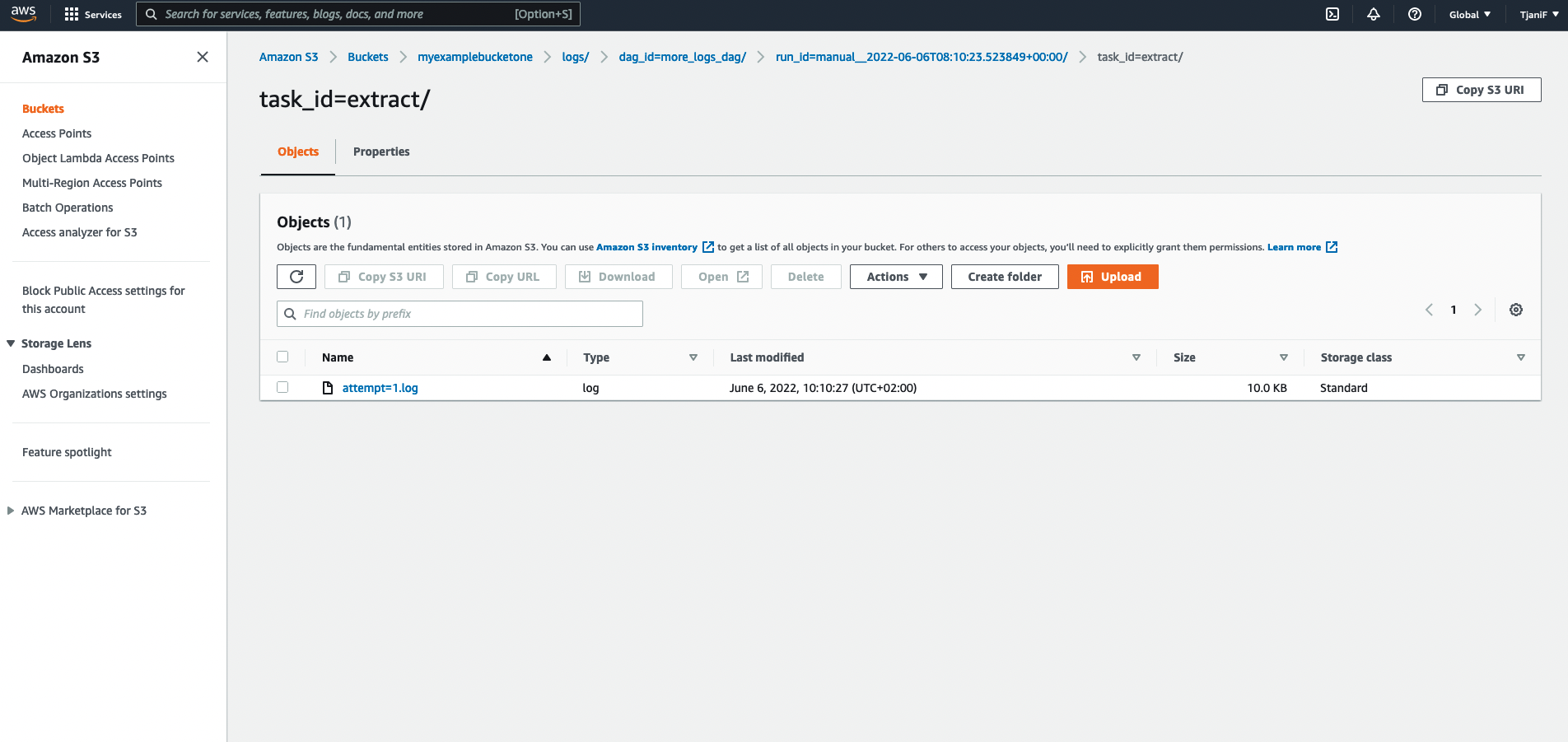

Airflow provides a ton of flexibility in configuring its logging system. All of the logging in Airflow is implemented through Python's standard logging library. Logs can be piped to remote storage, including Google Cloud Storage and Amazon S3 buckets, and most recently in Airflow 1.10, ElasticSearch.

A lot of the information on logging in Airflow can be found in the official documentation, but we've added a bit more flavor and detail about the logging module that Airflow utilizes. Given that our product is built on Airflow, we've thought a lot about how logs should be structured, and where they should be sent.

This guide is built for logging in Airflow 1.9, but a 1.10 version is coming soon

An Overview of Logging

If you just want to get more information on logging handlers, skip this section. This is merely more information to understand how the logging system is implemented in Airflow.

In The Twelve-Factor App's section on logging, logs are described as "the stream of aggregated, time-ordered events collected from the output streams of all running processes and backing services". Airflow has built around this philosophy, but given that it runs in a server-based environment, all of Airflow's logs are written to a file. When the user wants to access a log file through the web UI, that action triggers a GET request to retrieve the contents.

Airflow relies on a ton of different moving pieces, and all of its information output is integral to making sure the system is running as expected. Python's built in logging module allows for flexibility in configuring and routing logs from different pieces using different Loggers. A Logger object is instantiated by the logging.getLogger(name_of_logger) function. The sole purpose of the Logger object is to obtain messages with a log_level (ERROR, INFO, DEBUG) that need to be redirected to a specified destination. At its core, Airflow is comprised of a scheduler, a webserver, and a worker. All three of these components need a way to log out information.

When a call is made to the logger such as self.log.info("Task 1 has finished!"), this message is turned into a LogRecord object, containing all of the metadata and data necessary for the final output. The LogRecord is passed to the handler through an emit function. The handler will "pass" (quotations for a reason) the LogRecord to a Formatter, which will subsequently pass the log back to the handler in its final, glorious, sparkling string form.

At this point, it is up to the Handler to decide what happens with the string. The logging module supports several different types of handlers, but the three most important to Airflow are:

  1. FileHandler- Directs output to a disk file
  2. StreamHandler- Directs output to a stream (stdout, stderr)
  3. NullHandler- Does nothing, is a dummy handler for testing and developing

As you might guess, all of the task instance logs, webserver logs, and scheduler logs get piped through a FileHandler and a StreamHandler at some point.

Demystifying Airflow's Logging Configuration

The logger in Airflow is configured through a dictionary-formatted file. All of the necessary configuration is either set here, or passed into this file as an environmental variable. The .py handler file is merely a tool that is passed all of its configuration arguments from a configuration file. There is absolutely no reason to declare configs and/or variables within these handler files, except for testing or debugging purposes.

In the .py, the context for the logger is set. This includes the type of handler to use, the formatter, and the level of the log message.

Let's take a look at the default logging configuration file that Airflow ships with.

from airflow import configuration as conf

LOG_LEVEL = conf.get('core', 'LOGGING_LEVEL').upper()
LOG_FORMAT = conf.get('core', 'log_format')
BASE_LOG_FOLDER = conf.get('core', 'BASE_LOG_FOLDER')
PROCESSOR_LOG_FOLDER = conf.get('scheduler', 'child_process_log_directory')
FILENAME_TEMPLATE = '{{ ti.dag_id }}/{{ ti.task_id }}/{{ ts }}/{{ try_number }}.log'
PROCESSOR_FILENAME_TEMPLATE = '{{ filename }}.log'

DEFAULT_LOGGING_CONFIG = {
    'version': 1,
    'disable_existing_loggers': False,
    'formatters': {
        'airflow.task': {
            'format': LOG_FORMAT,
        },
        'airflow.processor': {
            'format': LOG_FORMAT,
        },
    },
    'handlers': {
        'console': {
            'class': 'logging.StreamHandler',
            'formatter': 'airflow.task',
            'stream': 'ext://sys.stdout'
        },
        'file.task': {
            'class': 'airflow.utils.log.file_task_handler.FileTaskHandler',
            'formatter': 'airflow.task',
            'base_log_folder': os.path.expanduser(BASE_LOG_FOLDER),
            'filename_template': FILENAME_TEMPLATE,
        },
        'file.processor': {
            'class': 'airflow.utils.log.file_processor_handler.FileProcessorHandler',
            'formatter': 'airflow.processor',
            'base_log_folder': os.path.expanduser(PROCESSOR_LOG_FOLDER),
            'filename_template': PROCESSOR_FILENAME_TEMPLATE,
        }
    },
    'loggers': {
        '': {
            'handlers': ['console'],
            'level': LOG_LEVEL
        },
        'airflow': {
            'handlers': ['console'],
            'level': LOG_LEVEL,
            'propagate': False,
        },
        'airflow.processor': {
            'handlers': ['file.processor'],
            'level': LOG_LEVEL,
            'propagate': True,
        },
        'airflow.task': {
            'handlers': ['file.task'],
            'level': LOG_LEVEL,
            'propagate': False,
        },
        'airflow.task_runner': {
            'handlers': ['file.task'],
            'level': LOG_LEVEL,
            'propagate': True,
        },
    }
}

This is a small piece of the airflow_local_settings.py file located in /airflow/config_templates. Some important notes:

  • All-capitalized variables are environmental variables that are pulled in from the airflow configuration file airflow.cfg
  • The DEFAULT_LOGGING_CONFIG is an object, containing keys for formatters, handlers, and loggers.
  • handlers keys are passed into the loggers.airflow.**.handlers values

All of this is important to remember when it comes to custom logging.

Available Handlers in Airflow

In the incubator-airflow project, all available handlers are located in /airflow/utils/log. Airflow 1.9

Handler nameRemote StorageDefault
file_processor_handler.pyNoYes
file_task_handler.pyNoYes
gcs_task_handler.pyYesNo
s3_task_handler.pyYesNo

Airflow 1.10

Handler nameRemote StorageDefault
file_processor_handler.pyNoYes
file_task_handler.pyNoYes
gcs_task_handler.pyYesNo
s3_task_handler.pyYesNo
es_task_handler.pyYesNo
wasb_task_handler.pyYesNo

Setting up custom logging in Airflow

Configuring logging is done through both env variables and setting up a new log_config.py file. We'll outline the steps one by one:

  • Create a new directory to store the new log config file. The new directory should be called config. Airflow's docs require you place the new directory in the PYTHONPATH, so it should be created as such: $AIRFLOW_HOME/config.

  • Inside your new directory called config, place two new files, __init__.py and a log_config.py. It should look something like this:

├── config
│   ├── __init__.py
│   ├── log_config.py
  • Copy the entire contents of airflow_local_settings.py from the config_templates directory into log_config.py. Change the variable name called DEFAULT_LOGGING_CONFIG to LOGGING_CONFIG.

  • Inside airflow.cfg, locate the environmental variable called LOGGING_CONFIG_CLASS, inside the Airflow Core settings. Change this to reflect the path to your new log_config,py file. In most cases, this will be as such, but adapt to your own needs:

 LOGGING_CONFIG_CLASS = airflow.config.log_config.LOGGING_CONFIG
  • Also take note of the environmental variable in airflow.cfg called TASK_LOG_READER. This is an important variable to set if you want to configure a custom logger to read task logs, to pipe them to standard out instead of files, if you wish.
