Overview
Note: This guide has been written and tested with Airflow Airflow 1.10.10. New tables may be introduced in newer versions.
We at Astronomer often get asked about the structure of the underlying Airflow metadata database. The Airflow metadata database stores configurations, such as variables and connections, user information, roles, and policies. It is also the Airflow Scheduler’s source of truth for all metadata regarding DAGs, schedule intervals, statistics from each run, and tasks.
Airflow uses SQLAlchemy and Object Relational Mapping (ORM) in Python to connect and interact with the underlying metadata database from the application layer. Thus, any database supported by SQLAlchemy can theoretically be configured to host Airflow’s metadata. On Astronomer, each Airflow deployment is equipped with PostgreSQL database for this purpose. The following guide details all of the tables available in the database repository including dependencies and the complete ERD.
Even though we don’t recommend modifying the values directly on the database, as doing so might affect dependencies, understanding the underlying structure can be very useful when it comes to building your own reports or querying directly against the database. You can find some useful queries that go directly against these tables in our Useful SQL queries for Apache Airflow guide.
ERD Diagram
The following diagram displays all the tables from the Airflow database.
Tables
The Airflow metadata database has a total of 30 tables tables are stored on the public schema by default. The following describe the table structure and reference for the Airflow metadata tables.
public.ab_permission
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | integer | PRIMARY KEY | |
| name | character varying(100) | UNIQUE NOT NULL |
Tables referencing this one via Foreign Key Constraints:
public.ab_permission_view
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | integer | PRIMARY KEY | |
| public.ab_permission.id | permission_id | integer | UNIQUE#1 |
| public.ab_view_menu.id | view_menu_id | integer | UNIQUE#1 |
Tables referencing this one via Foreign Key Constraints:
public.ab_permission_view_role
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | integer | PRIMARY KEY | |
| public.ab_permission_view.id | permission_view_id | integer | UNIQUE#1 |
| public.ab_role.id | role_id | integer | UNIQUE#1 |
public.ab_register_user
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | integer | PRIMARY KEY | |
| first_name | character varying(64) | NOT NULL | |
| last_name | character varying(64) | NOT NULL | |
| username | character varying(64) | UNIQUE NOT NULL | |
| password | character varying(256) | ||
| character varying(64) | NOT NULL | ||
| registration_date | timestamp without time zone | ||
| registration_hash | character varying(256) |
public.ab_role
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | integer | PRIMARY KEY | |
| name | character varying(64) | UNIQUE NOT NULL |
Tables referencing this one via Foreign Key Constraints:
public.ab_user
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | integer | PRIMARY KEY | |
| first_name | character varying(64) | NOT NULL | |
| last_name | character varying(64) | NOT NULL | |
| username | character varying(64) | UNIQUE NOT NULL | |
| password | character varying(256) | ||
| active | boolean | ||
| character varying(64) | UNIQUE NOT NULL | ||
| last_login | timestamp without time zone | ||
| login_count | integer | ||
| fail_login_count | integer | ||
| created_on | timestamp without time zone | ||
| changed_on | timestamp without time zone | ||
| public.ab_user.id | created_by_fk | integer | |
| public.ab_user.id | changed_by_fk | integer |
Tables referencing this one via Foreign Key Constraints:
public.ab_user_role
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | integer | PRIMARY KEY | |
| public.ab_user.id | user_id | integer | UNIQUE#1 |
| public.ab_role.id | role_id | integer | UNIQUE#1 |
public.ab_view_menu
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | integer | PRIMARY KEY | |
| name | character varying(100) | UNIQUE NOT NULL |
Tables referencing this one via Foreign Key Constraints:
public.alembic_version
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| version_num | character varying(32) | PRIMARY KEY |
public.chart
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| label | character varying(200) | ||
| conn_id | character varying(250) | NOT NULL | |
| public.users.id | user_id | integer | |
| chart_type | character varying(100) | ||
| sql_layout | character varying(50) | ||
| sql | text | ||
| y_log_scale | boolean | ||
| show_datatable | boolean | ||
| show_sql | boolean | ||
| height | integer | ||
| default_params | character varying(5000) | ||
| x_is_date | boolean | ||
| iteration_no | integer | ||
| last_modified | timestamp with time zone |
public.connection
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| conn_id | character varying(250) | ||
| conn_type | character varying(500) | ||
| host | character varying(500) | ||
| schema | character varying(500) | ||
| login | character varying(500) | ||
| password | character varying(500) | ||
| port | integer | ||
| extra | character varying(5000) | ||
| is_encrypted | boolean | ||
| is_extra_encrypted | boolean |
public.dag
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| dag_id | character varying(250) | PRIMARY KEY | |
| is_paused | boolean | ||
| is_subdag | boolean | ||
| is_active | boolean | ||
| last_scheduler_run | timestamp with time zone | ||
| last_pickled | timestamp with time zone | ||
| last_expired | timestamp with time zone | ||
| scheduler_lock | boolean | ||
| pickle_id | integer | ||
| fileloc | character varying(2000) | ||
| owners | character varying(2000) | ||
| description | text | ||
| default_view | character varying(25) | ||
| schedule_interval | text | ||
| root_dag_id | character varying(250) |
Indexes:
- idx_root_dag_id root_dag_id
public.dag_pickle
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| pickle | bytea | ||
| created_dttm | timestamp with time zone | ||
| pickle_hash | bigint |
public.dag_run
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| dag_id | character varying(250) | UNIQUE#2 UNIQUE#1 | |
| execution_date | timestamp with time zone | UNIQUE#2 | |
| state | character varying(50) | ||
| run_id | character varying(250) | UNIQUE#1 | |
| external_trigger | boolean | ||
| conf | bytea | ||
| end_date | timestamp with time zone | ||
| start_date | timestamp with time zone |
Indexes:
- dag_id_state dag_id, state
public.import_error
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| timestamp | timestamp with time zone | ||
| filename | character varying(1024) | ||
| stacktrace | text |
public.job
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| dag_id | character varying(250) | ||
| state | character varying(20) | ||
| job_type | character varying(30) | ||
| start_date | timestamp with time zone | ||
| end_date | timestamp with time zone | ||
| latest_heartbeat | timestamp with time zone | ||
| executor_class | character varying(500) | ||
| hostname | character varying(500) | ||
| unixname | character varying(1000) |
Indexes:
- idx_job_state_heartbeat state, latest_heartbeat
- job_type_heart job_type, latest_heartbeat
public.known_event
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| label | character varying(200) | ||
| start_date | timestamp without time zone | ||
| end_date | timestamp without time zone | ||
| public.users.id | user_id | integer | |
| public.known_event_type.id | known_event_type_id | integer | |
| description | text |
public.known_event_type
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| know_event_type | character varying(200) |
Tables referencing this one via Foreign Key Constraints:
public.kube_resource_version
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| one_row_id | boolean | PRIMARY KEY DEFAULT true | |
| resource_version | character varying(255) |
Constraints:
| Name | Constraint |
|---|---|
| kube_resource_version_one_row_id | CHECK (one_row_id) |
public.kube_worker_uuid
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| one_row_id | boolean | PRIMARY KEY DEFAULT true | |
| worker_uuid | character varying(255) |
Constraints:
| Name | Constraint |
|---|---|
| kube_worker_one_row_id | CHECK (one_row_id) |
public.log
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| dttm | timestamp with time zone | ||
| dag_id | character varying(250) | ||
| task_id | character varying(250) | ||
| event | character varying(30) | ||
| execution_date | timestamp with time zone | ||
| owner | character varying(500) | ||
| extra | text |
Indexes:
- idx_log_dag dag_id
public.serialized_dag
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| dag_id | character varying(250) | PRIMARY KEY | |
| fileloc | character varying(2000) | NOT NULL | |
| fileloc_hash | integer | NOT NULL | |
| data | json | NOT NULL | |
| last_updated | timestamp with time zone | NOT NULL |
Indexes:
- idx_filelo_hash fileloc_hash
public.sla_miss
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| task_id | character varying(250) | PRIMARY KEY | |
| dag_id | character varying(250) | PRIMARY KEY | |
| execution_date | timestamp with time zone | PRIMARY KEY | |
| email_sent | boolean | ||
| timestamp | timestamp with time zone | ||
| description | text | ||
| notification_sent | boolean |
Indexes:
- sm_dag dag_id
public.slot_pool
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| pool | character varying(50) | UNIQUE | |
| slots | integer | ||
| description | text |
public.task_fail
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| task_id | character varying(250) | NOT NULL | |
| dag_id | character varying(250) | NOT NULL | |
| execution_date | timestamp with time zone | NOT NULL | |
| start_date | timestamp with time zone | ||
| end_date | timestamp with time zone | ||
| duration | integer |
Indexes:
- idx_task_fail_dag_task_date dag_id, task_id, execution_date

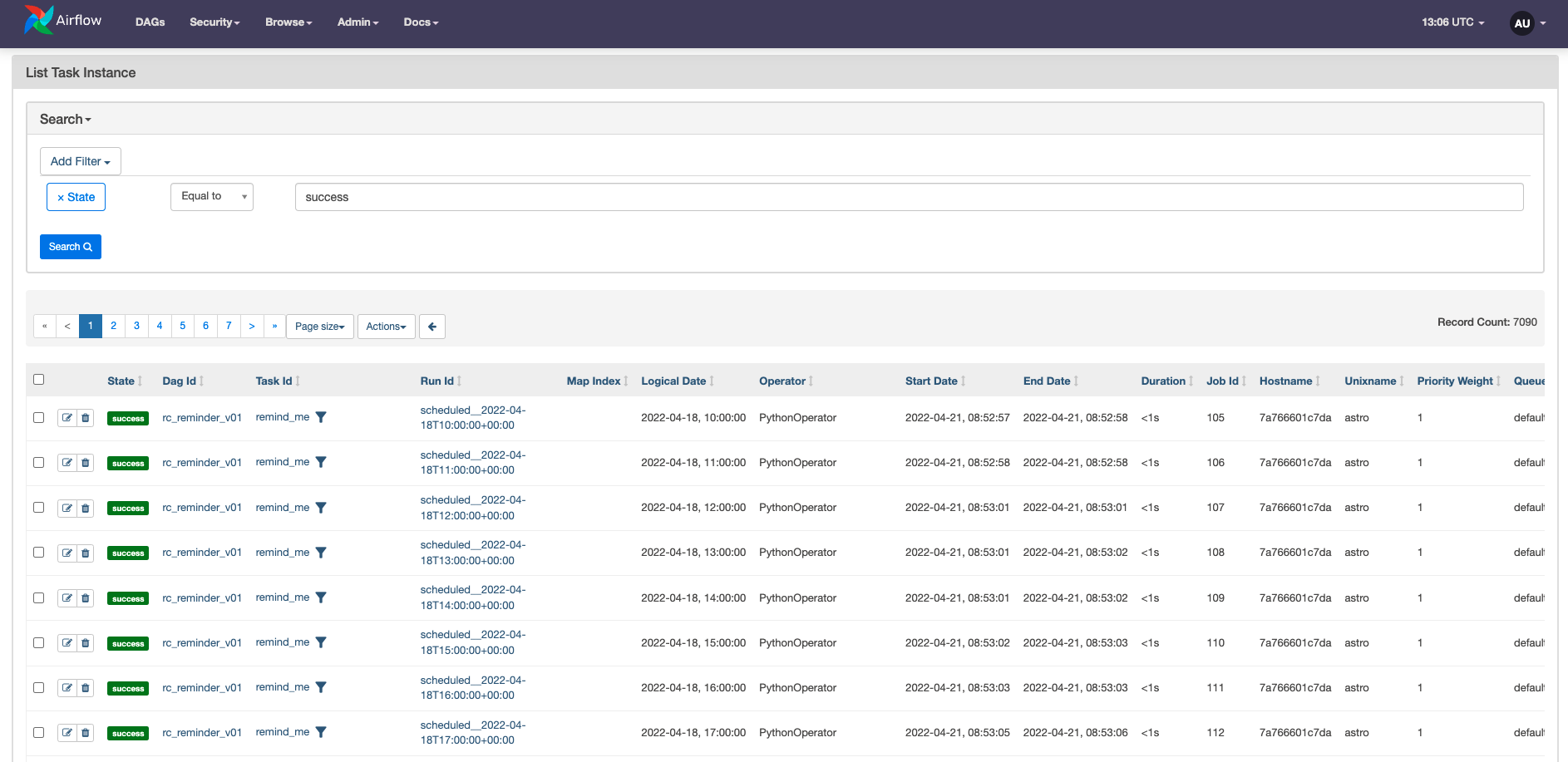

public.task_instance
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| task_id | character varying(250) | PRIMARY KEY | |
| dag_id | character varying(250) | PRIMARY KEY | |
| execution_date | timestamp with time zone | PRIMARY KEY | |
| start_date | timestamp with time zone | ||
| end_date | timestamp with time zone | ||
| duration | double precision | ||
| state | character varying(20) | ||
| try_number | integer | ||
| hostname | character varying(1000) | ||
| unixname | character varying(1000) | ||
| job_id | integer | ||
| pool | character varying(50) | NOT NULL | |
| queue | character varying(256) | ||
| priority_weight | integer | ||
| operator | character varying(1000) | ||
| queued_dttm | timestamp with time zone | ||
| pid | integer | ||
| max_tries | integer | DEFAULT ‘-1’::integer | |
| executor_config | bytea |
Tables referencing this one via Foreign Key Constraints:
Indexes:
- ti_dag_date dag_id, execution_date
- ti_dag_state dag_id, state
- ti_job_id job_id
- ti_pool pool, state, priority_weight
- ti_state state
- ti_state_lkp dag_id, task_id, execution_date, state
Table public.task_reschedule
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| public.task_instance.task_id#1 | task_id | character varying(250) | NOT NULL |
| public.task_instance.dag_id#1 | dag_id | character varying(250) | NOT NULL |
| public.task_instance.execution_date#1 | execution_date | timestamp with time zone | NOT NULL |
| try_number | integer | NOT NULL | |
| start_date | timestamp with time zone | NOT NULL | |
| end_date | timestamp with time zone | NOT NULL | |
| duration | integer | NOT NULL | |
| reschedule_date | timestamp with time zone | NOT NULL |
Indexes:
- idx_task_reschedule_dag_task_date dag_id, task_id, execution_date
public.users
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| username | character varying(250) | UNIQUE | |
| character varying(500) | |||
| password | character varying(255) | ||
| superuser | boolean |
Tables referencing this one via Foreign Key Constraints:
public.variable
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| key | character varying(250) | UNIQUE | |
| val | text | ||
| is_encrypted | boolean |
public.xcom
Table Structure:
| F-Key | Name | Type | Description |
|---|---|---|---|
| id | serial | PRIMARY KEY | |
| key | character varying(512) | ||
| value | bytea | ||
| timestamp | timestamp with time zone | NOT NULL | |
| execution_date | timestamp with time zone | NOT NULL | |
| task_id | character varying(250) | NOT NULL | |
| dag_id | character varying(250) | NOT NULL |
Indexes:
- idx_xcom_dag_task_date dag_id, task_id, execution_date
Start building your next-generation data platform with Astro.
Get Started
