Managing your Connections in Apache Airflow

Connections in Airflow are sets of configurations used to connect with other tools in the data ecosystem. Because most hooks and operators rely on connections to send and retrieve data from external systems, understanding how to create and configure them is essential for running Airflow in a production environment.

In this guide we will cover:

  • The basics of Airflow connections.
  • How to define connections using the Airflow UI.
  • How to define connections using environment variables.
  • An example showing a Snowflake connection and a Slack Webhook connection being used in a DAG.

Assumed knowledge

To get the most out of this guide, you should have knowledge of:

Airflow connection basics

An Airflow connection is a set of configurations for sending requests to the API of an external tool. In most cases, a connection requires login credentials or a private key to authenticate Airflow to the external tool.

Airflow connections can be created by using one of the following methods:

This guide focuses on how to add connections using both the Airflow UI and environment variables. For more in-depth information on configuring connections using the other methods, see the REST API reference, Managing Connections and Secrets Backend in the Airflow documentation.

Each connection has a unique conn_id which can be provided to operators and hooks that require a connection.

To standardize connections, Airflow includes many different connection types for connecting to specific types of systems. There are general connection types for connecting to large clouds, such as aws_default and gcp_default, as well as connection types for specific services like azure_service_bus_default.

Each connection type requires different configurations and values based on the service it’s connecting to. There are a couple of ways to find the information you need to provide for a particular connection type:

  • Open the relevant provider’s page in the Astronomer Registry and go to the Docs tab to access the Apache Airflow documentation for the provider. Most commonly used providers will have documentation on each of their associated connection types. For example, you can find information on how to set up different connections to Azure on the Azure provider docs.
  • Check the documentation of the external tool you are connecting to and see if it offers guidance on how to authenticate.
  • Refer to the source code of the hook that is being used by your operator.

Defining connections in the UI

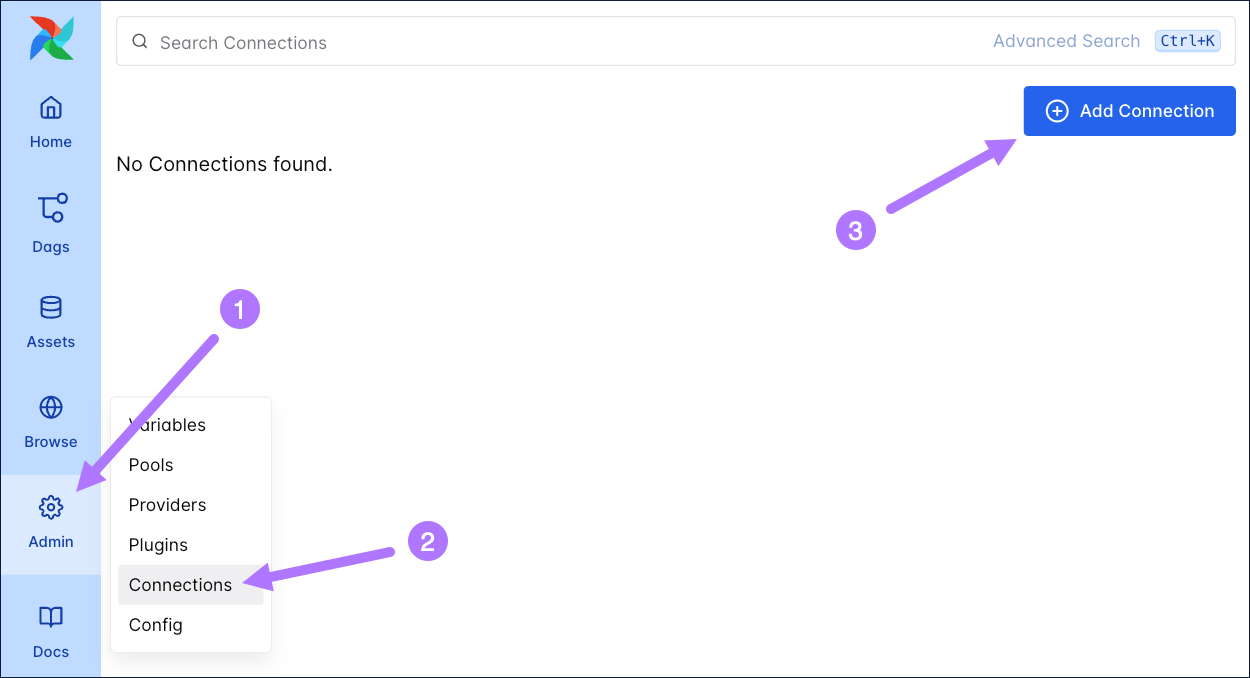

The most common way of defining a connection is using the Airflow UI. Go to Admin > Connections to access the Connections page.

Connections seen from the DAG view

Airflow doesn’t include any configured connections by default. To create a new connection, click the blue + button.

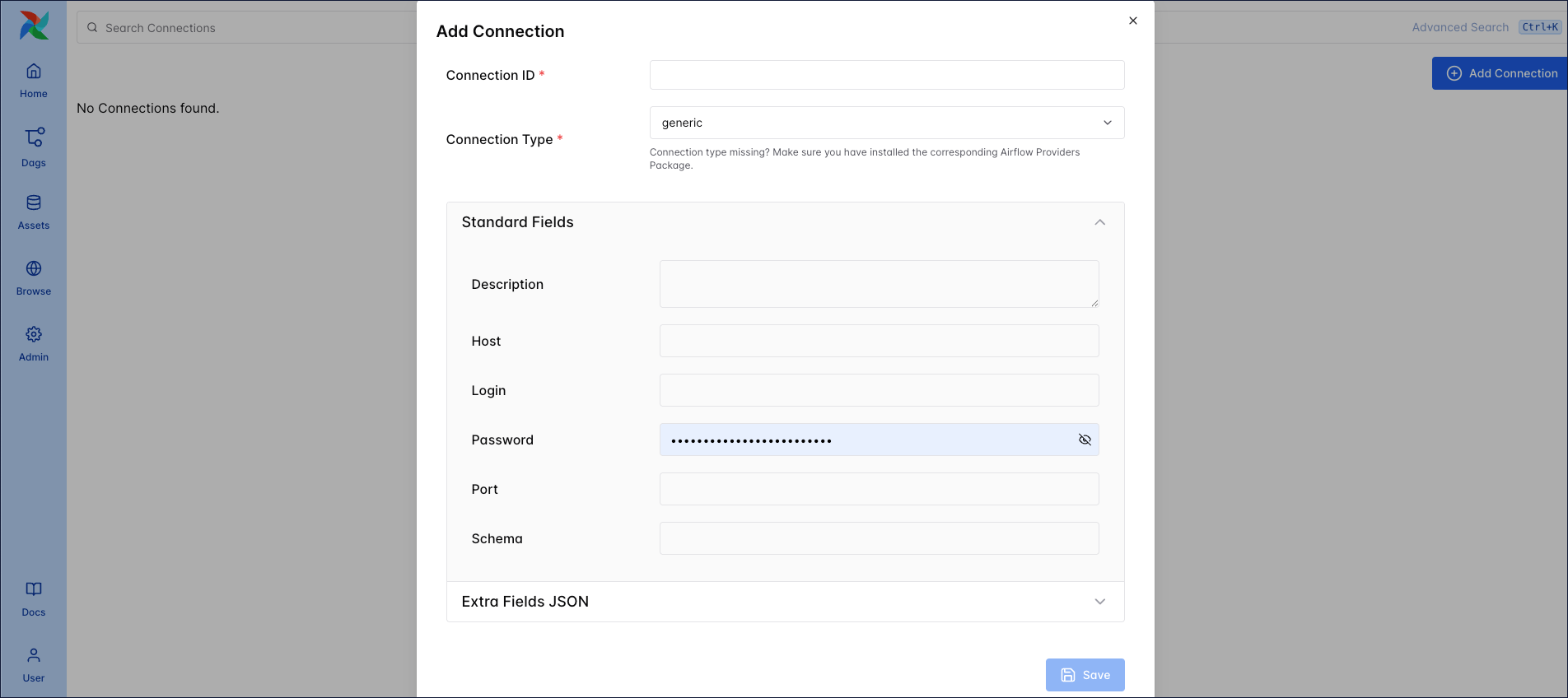

Empty Connection

As you update the Connection Type field, notice how the other available fields change. Each connection type requires different kinds of information.

Note: Specific connection types will only be available in the dropdown menu if the relevant provider is installed in your Airflow environment.

You don’t have to specify every field on most connections. However, the values marked as required in the Airflow UI can be misleading. For example to set up a connection to a PostgreSQL database, we need to reference the PostgreSQL provider documentation to learn that the connection requires a Host, a user name as login, and a password in the password field.

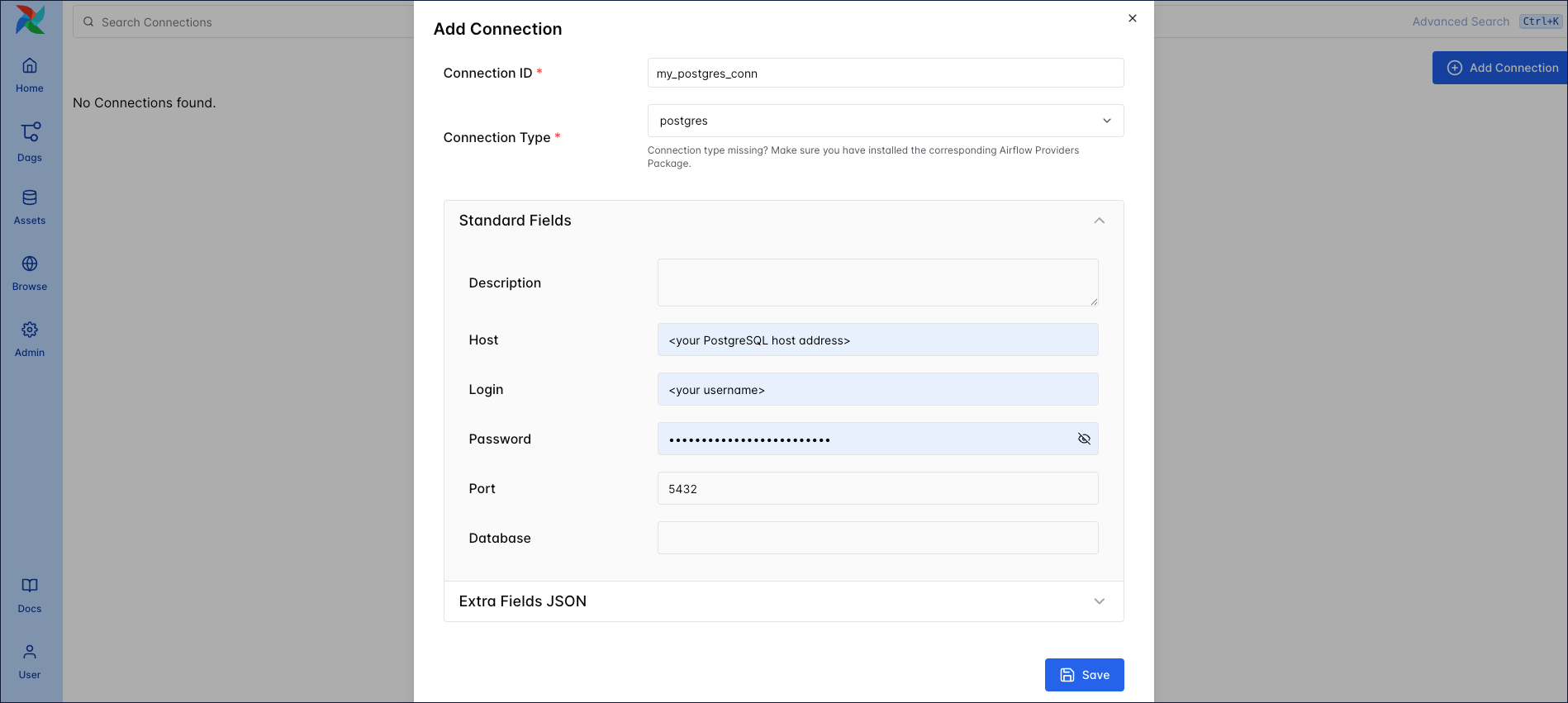

Example PostgreSQL connection

Any parameters that don’t have specific fields in the connection form can be defined in the Extra field as a JSON dictionary. For example, you can add the sslmode or a client sslkey in the Extra field of your PostgreSQL connection.

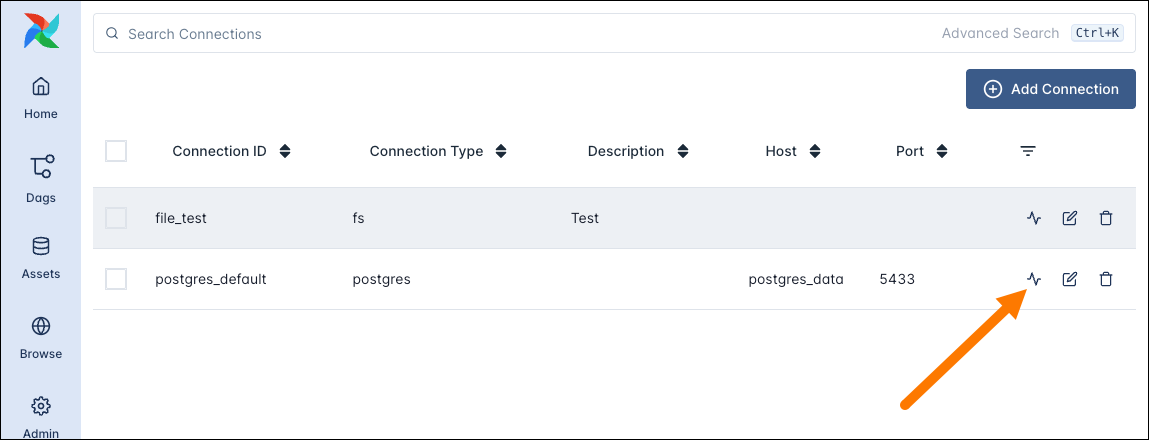

Starting in Airflow 2.2, you can test some connection types from the Airflow UI with the Test button. After running a connection test, a message appears on the top of the screen showing either a success confirmation or an error message.

Define connections via environment variables

Connections can also be defined using environment variables. If you use the Astro CLI, you can use the .env file for local development or specify environment variables in your project’s Dockerfile.

Note: If you are synchronizing your project to a remote repository, don’t save sensitive information in your Dockerfile. In this case, using either a secrets backend, Airflow connections defined in the UI, or .env locally are preferred so as to not expose secrets in plain text.

The environment variable used for the connection must be formatted as AIRFLOW_CONN_YOURCONNID and can be provided either as a Uniform Resource Identifier (URI) or, starting in Airflow 2.3, in JSON.

URI is a format designed to contain all necessary connection information in one string, starting with the connection type, followed by login, password and host. In many cases a specific port, schema, and additional parameters must be added.


# the general format of a URI connection that is defined in your Dockerfile
ENV AIRFLOW_CONN_MYCONNID='my-conn-type://login:password@host:port/schema?param1=val1¶m2=val2'

# an example of a connection to snowflake defined as a URI
ENV AIRFLOW_CONN_SNOWFLAKE_CONN='snowflake://LOGIN:PASSWORD@/?account=xy12345®ion=eu-central-1'

In Airflow 2.3+, connections can be provided to an environment variable as a JSON dictionary:

# example of a connection defined as a JSON file in your `.env` file
AIRFLOW_CONN_MYCONNID='{
    "conn_type": "my-conn-type",
    "login": "my-login",
    "password": "my-password",
    "host": "my-host",
    "port": 1234,
    "schema": "my-schema",
    "extra": {
        "param1": "val1",
        "param2": "val2"
    }
}'

Note that connections that are defined using environment variables do not appear in the Airflow UI’s list of available connections.

Masking sensitive information

Connections often contain sensitive credentials. By default, Airflow hides the password field, both in the UI and in the Airflow logs. If AIRFLOW__CORE__HIDE_SENSITIVE_VAR_CONN_FIELDS is set to True, values from the connection’s Extra field are also hidden if their keys contain any of the words listed in AIRFLOW__CORE__SENSITIVE_VAR_CONN_NAMES. You can find more information on masking, including a list of the default values in this environment variable, in the Airflow documentation on Masking sensitive data.

Example: Configuring the SnowflakeToSlackOperator

In this example, we configure the SnowflakeToSlackOperator, which requires connections to Snowflake and Slack. We define the connections using the Airflow UI.

Before starting Airflow, we need to install both the Snowflake and the Slack provider. If you use the Astro CLI, you can install the packages by adding the following lines to your Astro project’s requirements.txt file:

apache-airflow-providers-snowflake
apache-airflow-providers-slack

Open the Airflow UI and create a new connection. Set the Connection Type to Snowflake. This connection type requires the following parameters:

  • Connection Id: snowflake_conn or any other string that is not already in use by an existing connection
  • Connection Type: Snowflake
  • Account: Your Snowflake account in the format xy12345.region
  • Login: Your Snowflake login name.
  • Password: Your Snowflake login password.

You can leave the other fields empty. Test the connection by clicking on the Test button.

The screenshot below shows the confirmation that the connection to Snowflake was successful.

Successful Connection to Snowflake

Next we set up a connection to Slack. To post a message to a Slack channel, you need to create a Slack app for your server and configure incoming webhooks. See the Slack Documentation for setup steps.

To connect to Slack from Airflow, you only have to provide a few parameters:

  • Connection Id: slack_conn (or another string that has not been used for a different connection already)
  • Connection Type: Slack Webhook
  • Host: https://hooks.slack.com.services, which is the first part of your Webhook URL
  • Password: The second part of your Webhook URL in the format T00000000/B00000000/XXXXXXXXXXXXXXXXXXXXXXXX

Test the connection by clicking on the Test button.

The last step is writing the DAG using the SnowflakeToSlackOperator to run a SQL query on a Snowflake table and post the result as a message to a Slack channel. The SnowflakeToSlackOperator requires both the connection id for the Snowflake connection (snowflake_conn_id) and the connection id for the Slack connection (slack_conn_id).

from airflow import DAG
from datetime import datetime
from airflow.providers.snowflake.transfers.snowflake_to_slack import (
    SnowflakeToSlackOperator
)

with DAG(
    dag_id="snowflake_to_slack_dag",
    start_date=datetime(2022, 7, 1),
    schedule_interval=None,
    catchup=False
) as dag:

    transfer_task = SnowflakeToSlackOperator(
        task_id="transfer_task",

        # the two connections are passed to the operator here:
        snowflake_conn_id="snowflake_conn",
        slack_conn_id="slack_conn",

        params={
            "table_name": "ORDERS",
            "col_to_sum": "O_TOTALPRICE"
        },
        sql="""
            SELECT
              COUNT(*) AS row_count,
              SUM({{ params.col_to_sum }}) AS sum_price
            FROM {{ params.table_name }}
        """,
        slack_message="""The table {{ params.table_name }} has
            => {{ results_df.ROW_COUNT[0] }} entries
            => with a total price of {{results_df.SUM_PRICE[0]}}"""
    )
