LLMOps: Automatic retrieval-augmented generation with Airflow, GPT-4 and Weaviate

In the emerging field of Large Language Model Operations (LLMOps), retrieval-augmented generation (RAG) has quickly become a key way to tailor large langage model (LLM) applications to domain specific queries.

This use case shows how to use Weaviate and Airflow to create an automatic RAG pipeline ingesting and embedding data from two sources of news articles (Alpha Vantage and Spaceflight News) as a knowledge base for a GPT-4 powered Streamlit application giving trading advice. The pipeline structure follows Astronomers' RAG reference architecture, Ask Astro.

Disclaimer

This is a proof of concept pipeline, please do not make any financial decisions based on the advice of this application.

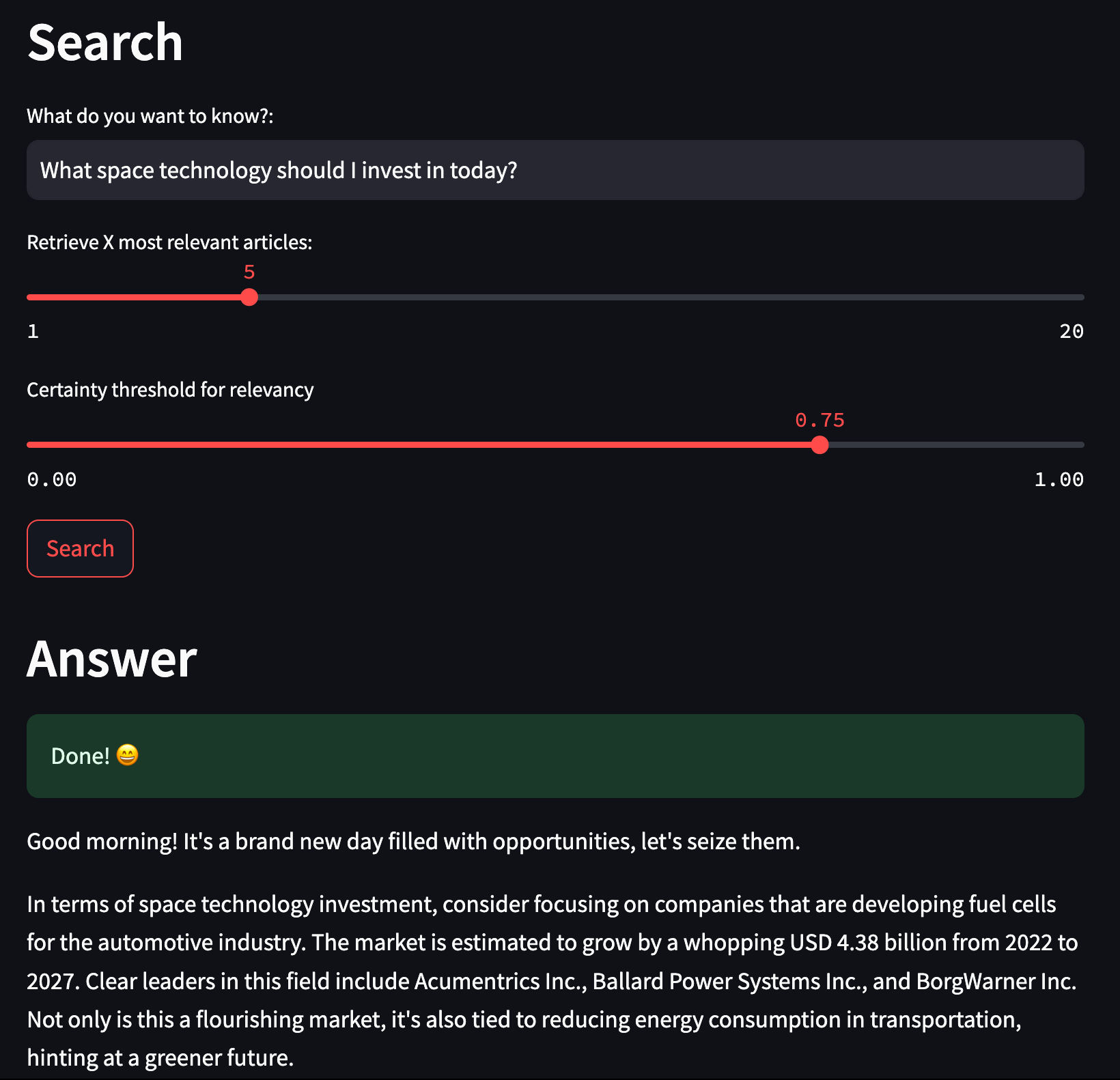

A screenshot of the streamlit application created in this use case with a augmented GPT created answer for the question "What space technology should I invest in today?".

Before you start

Before trying this example, make sure you have:

Clone the project

Clone the example project from the Astronomer GitHub. To keep your credentials secure when you deploy this project to your own git repository, make sure to create a file called .env with the contents of the .env_example file in the project root directory. You need to provide your own API key for the Alpha Vantage API (ALPHAVANTAGE_KEY) and your own OpenAI API key in the AIRFLOW_CONN_WEAVIATE_DEFAULT connection and as OPENAI_APIKEY.

The repository is configured to spin up and use a local Weaviate instance. If you'd like to use an existing Weaviate instance, change the host parameter in the AIRFLOW_CONN_WEAVIATE_DEFAULT connection in the .env file.

Run the project

To run the example project, first make sure Docker Desktop is running. Then, open your project directory and run:

astro dev start

This command builds your project and spins up 6 Docker containers on your machine to run it:

  • The Airflow webserver, which runs the Airflow UI and can be accessed at https://localhost:8080/.
  • The Airflow scheduler, which is responsible for monitoring and triggering tasks.
  • The Airflow triggerer, which is an Airflow component used to run deferrable operators.
  • The Airflow metadata database, which is a Postgres database that runs on port 5432.
  • A local Weaviate instance, which can be accessed at http://localhost:8081.
  • A local Streamlit application, which can be accessed at http://localhost:8501.

Log into the Airflow UI at https://localhost:8080/ with the username admin and the password admin. Run the finbuddy_load_news DAG to start the ingestion pipeline. After the DAG completes, use the Streamlit application at http://localhost:8501 to ask for current financial insights.

Project contents

Data source

This example collects URLs of news articles from two API sources, Alpha Vantage for financial news articles and Spaceflight news for the latest developments in space. A downstream task scapes the full texts of these articles and a third task imports the data to Weaviate.

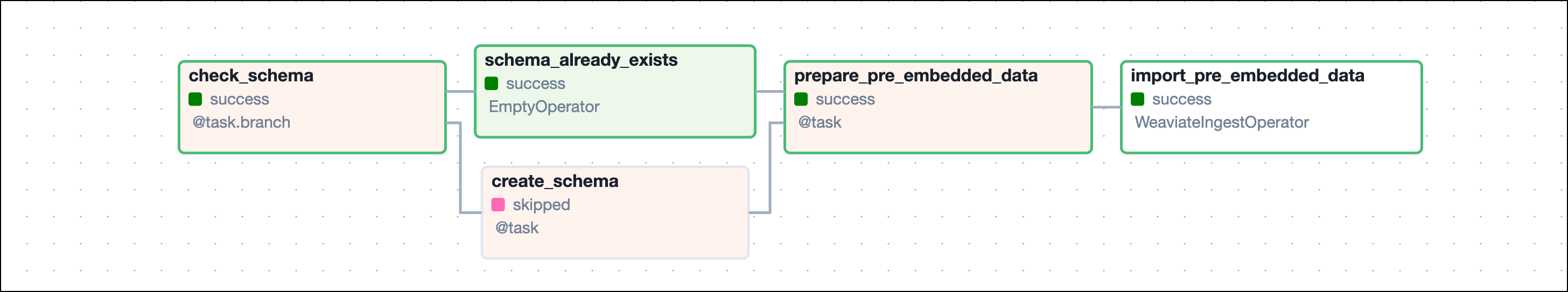

A file containing pre-embedded articles as well as a separate DAG (finbuddy_load_pre_embedded) to load these pre-defined embeddings are available for developing purposes.

Project overview

This project consists of an automated incremental ingestion pipeline defined in an Airflow DAG and a Streamlit application.

The finbuddy_load_news DAG ensures that the correct Weaviate schema is created and subsequently ingests news articles from Alpha Vantage and Spaceflight news in parallel sequences of tasks. The ingestion pipeline consists of tasks querying an API, scraping the text of the news articles, chunking the content, creating embeddings, and loading the data into Weaviate.

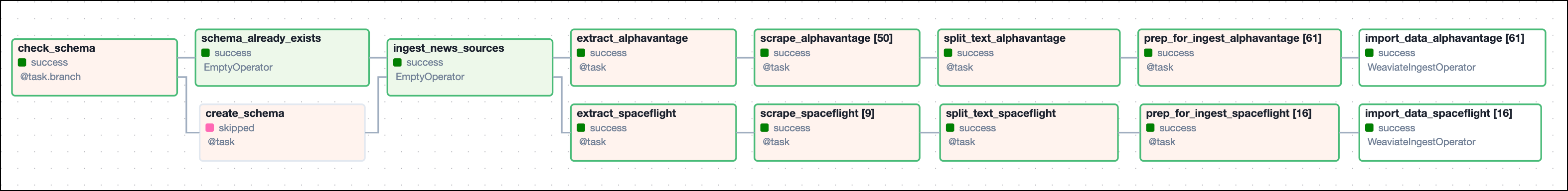

Graph view of the finbuddy_load_news DAG showing Weaviate schema handling and two parallel ingesting pipelines, one for financial news from Alpha Vantage, the other for space news from Spaceflight news.

You can find the code for the Streamlit application in include/streamlit/streamlit_app.py. This app prompts the user to ask a question about the current financial outlook and then uses the question to find relevant news articles for an augmented prompt to GPT-4. The app displays the resulting answer to the user along with the sources used.

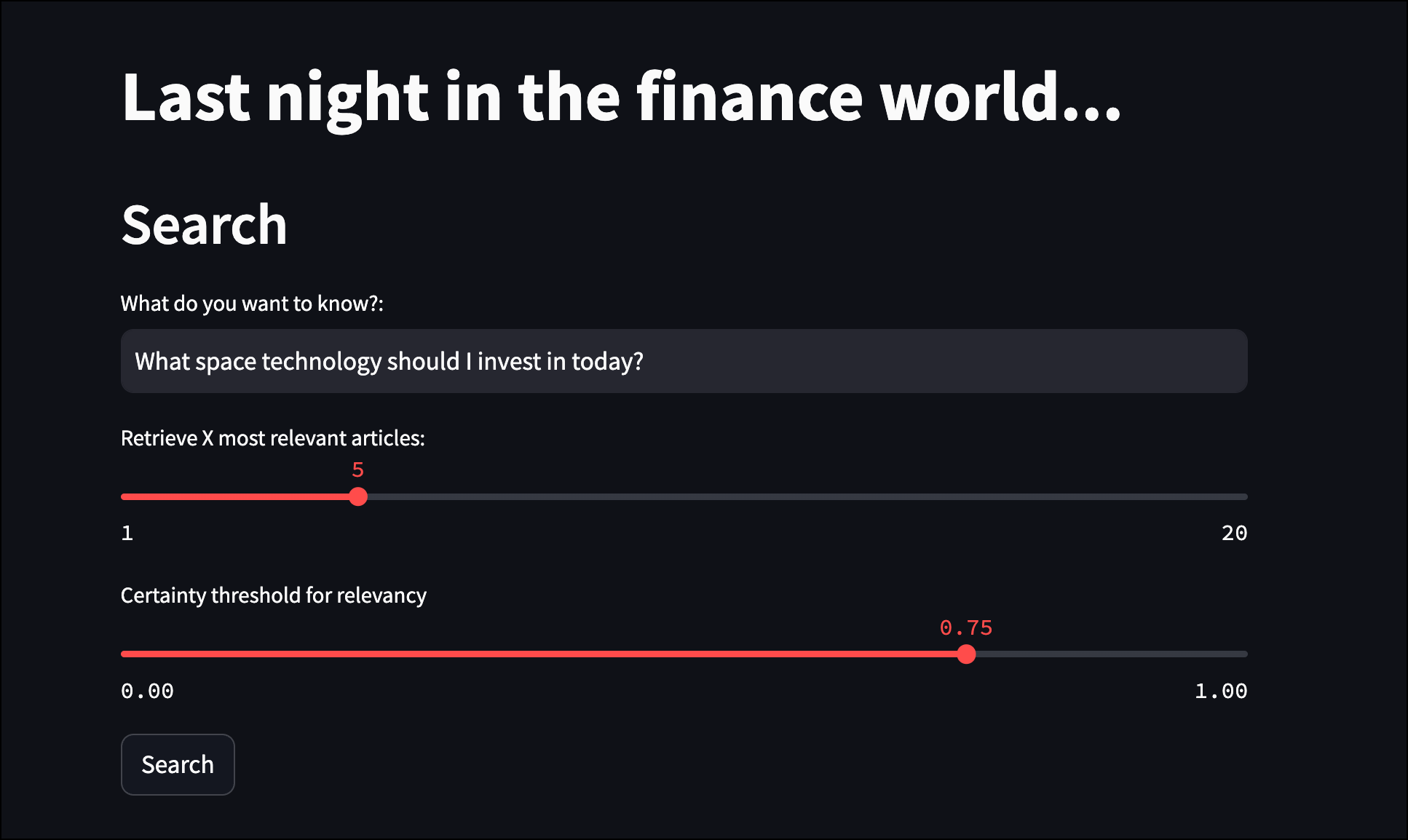

Screenshot of the streamlit app showing the prompt field and two sliders, one for number of relevant article chunks retrieved, one to adjust the certainty.

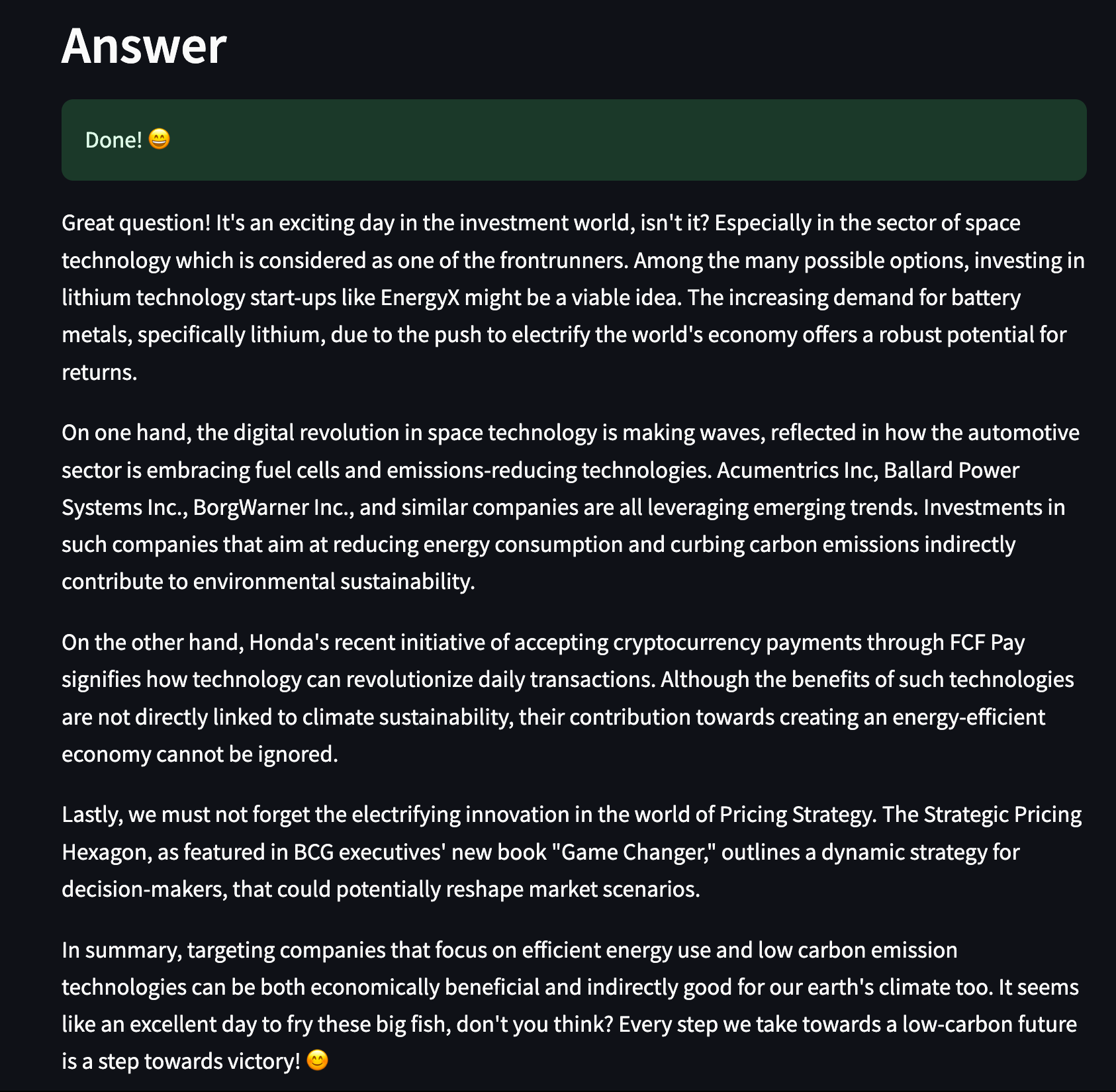

Screenshot of the streamlit app showing an example answer of the application.

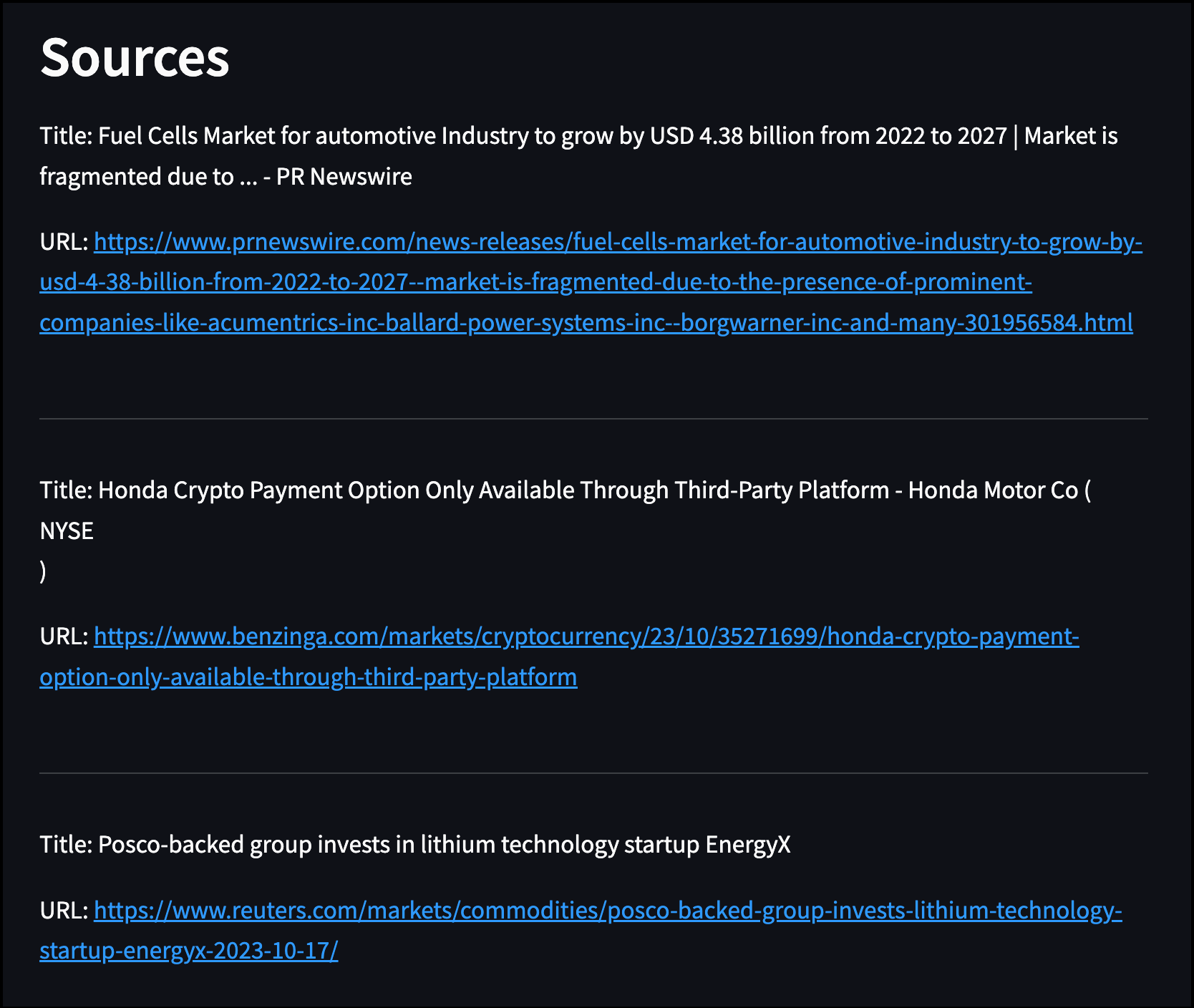

Screenshot of the streamlit app showing the sources that were incorporated in the augmented prompt displayed below the answer.

Project code

This use case shows a pattern for retrieval-augmented generation LLMOps. Note that the repository is modularized and stores functions defining most Airflow tasks in the include/tasks directory. The following sections highlight a couple of relevant code snippets in the finbuddy_load_news DAG and the Streamlit application and explain them in more detail.

finbuddy_load_news DAG

The finbuddy_load_news DAG contains all tasks necessary to automatically and continually ingest new news articles into Weaviate. It is scheduled to run everyday at midnight UTC.

The first task of the DAG checks if the Weaviate instance from the WEAVIATE_CONN_ID connection ID contains a class schema with the same name as the name provided to class_name parameter. The schema for the NEWS class contains fields for metadata such as the url, title, or source. You can find the full schema at include/data/schema.json.

The @task.branch decorator branches the DAG into two paths depending on whether or not the schema already exists. If the schema already exists, the DAG continues with the schema_already_exists task, skipping schema creation. If the schema does not exist, the DAG continues with the create_schema task, creating the schema before continuing with the ingestion pipeline.

@task.branch
def check_schema(conn_id: str, class_name: str) -> bool:
"Check if the provided class already exists and decide on the next step."
hook = WeaviateHook(conn_id)
client = hook.get_client()

if not client.schema.get()["classes"]:
print("No classes found in this weaviate instance.")
return "create_schema"

existing_classes_names_with_vectorizer = [
x["class"] for x in client.schema.get()["classes"]
]

if class_name in existing_classes_names_with_vectorizer:
print(f"Schema for class {class_name} exists.")
return "schema_already_exists"
else:
print(f"Class {class_name} does not exist yet.")
return "create_schema"

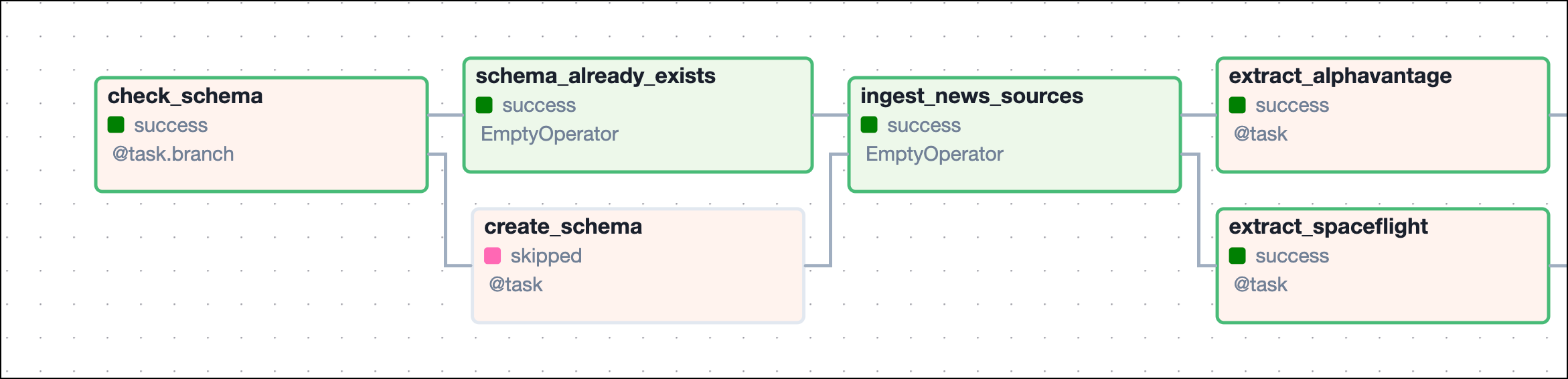

Start of the graph view of the finbuddy_load_news DAG showing the branching between schema_already_exists and create_schema.

The WeaviateHook's .create_class method defines creates a new class with the schema retrieved from include/data/schema.json.

@task
def create_schema(
conn_id: str, class_name: str, vectorizer: str, schema_json_path: str
):
"Create a class with the provided name, schema and vectorizer."
import json

weaviate_hook = WeaviateHook(conn_id)

with open(schema_json_path) as f:
schema = json.load(f)
class_obj = next(
(item for item in schema["classes"] if item["class"] == class_name),
None,
)
class_obj["vectorizer"] = vectorizer

weaviate_hook.create_class(class_obj)

After the schema is ready to take in new embeddings, the tasks defining ingestion paths for different news sources are created in a loop from a list of dictionaries that contain task parameters for each news source. This structure allows you to easily add more sources without needing to change the code of the DAG itself.

Each news source is given a name and a set of extract_parameters:

  • The function needed to extract information from the news source, extract_function.
  • The start_time which, determines how fresh we require news articles to be.
  • The limit which, is the maximum amount of articles to be fetched in a DAG run.

Since this ingestion pipeline runs incrementally, the start_time is set to the data_interval_start timestamp of the DAG run, which results in each DAG run processing the articles published in the time since the last scheduled DAG run. This date can be conveniently accessed in a Jinja template in the format of a timestamp without dashes by using {{ data_interval_start | ts_nodash }}.

info

For more information on how Airflow handles DAG run dates see the Schedule DAGs in Airflow guide and for a full list of available templates, see the Airflow Templates reference.

news_sources = [
{
"name": "alphavantage",
"extract_parameters": {
"extract_function": extract.extract_alphavantage_api,
"start_time": "{{ data_interval_start | ts_nodash }}",
"limit": 16,
},
},
{
"name": "spaceflight",
"extract_parameters": {
"extract_function": extract.extract_spaceflight_api,
"start_time": "{{ data_interval_start | ts_nodash }}",
"limit": 16,
},
},
]

# ...

for news_source in news_sources:
# tasks to ingest news
tip

You can add more news sources by adding a dictionary to the news_sources list with the same structure as the ones already present. Make sure to add the corresponding extract function to include/tasks/extract.py.

For each news_source in news_sources, five tasks are instantiated.

The first task makes a call to the respective news API to collect the article metadata in a dictionary and pass it to XCom. The function used in this task varies between news sources and is retrieved from the extract_function parameter of the news_source dictionary. Both, the start_time and limit for the API call are given to the extract function as positional arguments.

urls = task(
news_source["extract_parameters"]["extract_function"],
task_id=f"extract_{news_source['name']}",
)(
news_source["extract_parameters"]["start_time"],
news_source["extract_parameters"]["limit"],
)

All extract functions for different APIs are located in include/tasks/extract.py. They follow the general structure shown in the following extract_spaceflight_api function. A GET request is posted to the API endpoint for article metadata after the provided start time and the response is transformed into a list of dictionaries, each containing the information for one news article.

def extract_spaceflight_api(published_at_gte, limit=10, skip_on_error=False):
url = f"https://api.spaceflightnewsapi.net/v4/articles/?published_at_gte={published_at_gte}&limit={limit}"

response = requests.get(url)

print(response.json())

if response.ok:
data = response.json()

news_ingest = {
"url": [],
"title": [],
"summary": [],
"news_site": [],
"published_at": [],
}

for i in data["results"]:
news_ingest["url"].append(i["url"])
news_ingest["title"].append(i["title"])
news_ingest["summary"].append(i["summary"])
news_ingest["news_site"].append(i["news_site"])
news_ingest["published_at"].append(i["published_at"])

else:
if skip_on_error:
pass
else:
raise Exception(f"Error extracting from Spaceflight API for {url}.")

news_df = pd.DataFrame(news_ingest)

return news_df.to_dict(orient="records")

Returning the API response in this List(Dict) format allows for downstream dynamic task mapping to create one dynamically mapped scraping task at runtime for each news article. This dynamic structure has two main advantages:

  1. It allows for scraping of several articles in parallel, saving time.
  2. If the scraping of one article fails, the pipeline will continue scraping the other articles in parallel and only retry the failed mapped task instance.
texts = task(
scrape.scrape_from_url, task_id=f"scrape_{news_source['name']}", retries=3
).expand(news_dict=urls)

The scrape_from_url function used in this task is defined in include/tasks/scrape.py and uses the Goose3 package.

from goose3 import Goose


def scrape_from_url(news_dict, skip_on_error=False):
url = news_dict["url"]
g = Goose()
print("Scraping URL: ", url)

if skip_on_error:
try:
article = g.extract(url=url)
news_dict["full_text"] = article.cleaned_text
except:
print("Error scraping URL: ", url)
news_dict["full_text"] = article.cleaned_text
else:
article = g.extract(url=url)
news_dict["full_text"] = article.cleaned_text

return news_dict

After all news articles have been scraped, the article texts get split up into smaller chunks of information using LangChain. Splitting the raw information allows for more fine-grained retrieval of relevant information in the Streamlit application.

split_texts = task(
split.split_text,
task_id=f"split_text_{news_source['name']}",
trigger_rule="all_done",
)(texts)

The split_text function used in this task is defined in include/tasks/split.py. It returns a list of dictionaries, each containing one news article chunk and the associated article metadata.

import pandas as pd
from langchain.schema import Document
from langchain.text_splitter import RecursiveCharacterTextSplitter


def split_text(records):
df = pd.DataFrame(records)

splitter = RecursiveCharacterTextSplitter()

df["news_chunks"] = df["full_text"].apply(
lambda x: splitter.split_documents([Document(page_content=x)])
)
df = df.explode("news_chunks", ignore_index=True)
df["full_text"] = df["news_chunks"].apply(lambda x: x.page_content)
df.drop(["news_chunks"], inplace=True, axis=1)
df.reset_index(inplace=True, drop=True)

return df.to_dict(orient="records")

After creating chunks of text, the last two steps of the pipeline deal with preparing the data for ingestion and ingesting it into Weaviate. You can either compute the vector embeddings locally using the import_data_local_embed function, or use the import_data function and let Weaviate create the embeddings for you using text2vec-openai. Both functions are located in include/tasks/ingest.py. This behavior can be toggled by setting EMBEDD_LOCALLY to True or False at the top of the DAG file.

The ingest task uses the WeaviateIngestOperator and is dynamically mapped over the list of dictionaries of prepared news article chunks, creating one mapped task instance per chunk.


EMBEDD_LOCALLY = False

# ...

if EMBEDD_LOCALLY:
embed_obj = (
task(
ingest.import_data_local_embed,
task_id=f"prep_for_ingest_{news_source['name']}",
)
.partial(
class_name=WEAVIATE_CLASS_NAME,
)
.expand(record=split_texts)
)

import_data = WeaviateIngestOperator.partial(
task_id=f"import_data_local_embed_{news_source['name']}",
conn_id=WEAVIATE_CONN_ID,
class_name=WEAVIATE_CLASS_NAME,
vector_col="vectors",
retries=3,
retry_delay=30,
trigger_rule="all_done",
).expand(input_data=embed_obj)

else:
embed_obj = (
task(
ingest.import_data,
task_id=f"prep_for_ingest_{news_source['name']}",
)
.partial(
class_name=WEAVIATE_CLASS_NAME,
)
.expand(record=split_texts)
)

import_data = WeaviateIngestOperator.partial(
task_id=f"import_data_{news_source['name']}",
conn_id=WEAVIATE_CONN_ID,
class_name=WEAVIATE_CLASS_NAME,
retries=3,
retry_delay=30,
trigger_rule="all_done",
).expand(input_data=embed_obj)

The ingestion function passed to the @task decorator in the prep_for_ingest... task differs depending on whether the embeddings are pre-computed locally or not.

If there is no vector_col parameter defined, the WeaviateIngestOperator decorator assumes that Weaviate computes the embeddings using the vectorizer you provided in the DEFAULT_VECTORIZER_MODULE environment variable in the docker-compose.override.yaml file. In this use case, the default vectorizer is text2vec-openai. The only preparation necessary by the ingestion function is to add a UUID to each news article chunk and to convert the dataframe to a list of dictionaries.

def import_data(
record,
class_name: str,
):
df = pd.DataFrame(record, index=[0])

df["uuid"] = df.apply(
lambda x: generate_uuid5(identifier=x.to_dict(), namespace=class_name), axis=1
)

print(f"Passing {len(df)} objects for embedding and import.")

return df.to_dict(orient="records")

With each scheduled run, the finbuddy_load_news DAG ingests more news article chunks into Weaviate. The Streamlit app can then use these articles to answer questions about the current financial outlook.

Streamlit app

The streamlit/streamlit_app.py is configured to automatically run in its own container with a port exposed to the host machine. The app is accessible at http://localhost:8501 after you run astro dev start.

The streamlit app is structured to perform three main tasks, which are separated out into functions:

  • get_embedding: Takes the user input and computes the embeddings of the input text using OpenAI embeddings or FinBERT.
  • get_relevant_articles: Performs a Weaviate query to retrieve the most relevant article chunks from Weaviate to be added to the augmented prompt.
  • get_response: Uses the retrieved article chunks to create an augmented prompt for GPT-4.

You can experiment with parameters, such as the certainty threshold, in the Weaviate query to allow for more or less relevant article chunks to be retrieved or to change the number of article chunks that are included in the augmented prompt. Finally, you can make changes to the GPT-4 prompt. For example, to instruct the model to be more optimistic or pessimistic in its answer.

info

Make sure that you are using the same model to embed the user input and the news articles. If you are using local embeddings in your DAG, you need to set EMBEDD_LOCALLY to True at the start of the streamlit application file as well.

EMBEDD_LOCALLY = False


def get_embedding(text):
if EMBEDD_LOCALLY:
tokenizer = BertTokenizer.from_pretrained("ProsusAI/finbert")
model = BertModel.from_pretrained("ProsusAI/finbert")

if torch.cuda.is_available():
model = model.to("cuda")
else:
model = model.to("cpu")

model.eval()

tokens = tokenizer(
text, return_tensors="pt", truncation=True, padding=True, max_length=512
)
with torch.no_grad():
outputs = model(**tokens)
last_hidden_state = outputs.last_hidden_state
mean_tensor = last_hidden_state.mean(dim=1)
embeddings = mean_tensor.numpy()

embeddings = embeddings[0].tolist()
else:
model = "text-embedding-ada-002"
embeddings = openai.Embedding.create(input=[text], model=model)["data"][0][
"embedding"
]

return embeddings


def get_relevant_articles(reworded_prompt, limit=5, certainty=0.75):

client = weaviate.Client(
url="http://weaviate:8081",
auth_client_secret=weaviate.AuthApiKey("adminkey"),
)

input_text = reworded_prompt

nearVector = get_embedding(input_text)

count = client.query.get("NEWS", ["full_text"]).do()
st.write(f"Total articles in NEWS: {len(count['data']['Get']['NEWS'])}")

if EMBEDD_LOCALLY:
result = (
client.query.get("NEWS", ["title", "url", "full_text", "published_at"])
.with_near_vector({"vector": nearVector, "certainty": certainty})
.with_limit(limit)
.do()
)

else:
result = (
client.query.get("NEWS", ["title", "url", "full_text", "published_at"])
.with_near_vector({"vector": nearVector, "certainty": certainty})
.with_limit(limit)
.do()
)

return result["data"]["Get"]["NEWS"]


def get_response(articles, query):
prompt = """You are a friendly trading bot reading the morning news for your favorite day trader.
Answer their question while taking the following articles into account: """

for article in articles:
article_title = article["title"] if article["title"] else "unknown"
article_published_at = (
article["published_at"] if article["published_at"] else "unknown"
)

article_full_text = article["full_text"] if article["full_text"] else "no text"

article_info = (
article_title
+ " was published at "
+ article_published_at
+ " Full text: "
+ article_full_text
)
prompt += " " + article_info + " "

prompt += " Your trader asks:"

prompt += " " + query

prompt += """
Remember to SUBTLY steer the trader towards climate sustainable investments,
humans need the earth to survive. Don't say that outright though.
Answer their question while also saying something motivating about the day :smile:.
Your answer:"""

chat_completion = openai.ChatCompletion.create(
model="gpt-4", messages=[{"role": "user", "content": prompt}]
)

return chat_completion

The calls to the functions in the previous code snippet are wrapped in the code that creates the Streamlit app. A call to the GPT-4 API is only made after the user has entered a question and clicked the Search button.

st.title("Last night in the finance world...")

st.header("Search")

user_input = st.text_input("What do you want to know?:", "What is the general financial sentiment this morning?")
limit = st.slider("Retrieve X most relevant articles:", 1, 20, 5)
certainty = st.slider("Certainty threshold for relevancy", 0.0, 1.0, 0.75)

if st.button("Search"):
st.header("Answer")
with st.spinner(text="Thinking... :thinking_face:"):
articles = get_relevant_articles(user_input, limit=limit, certainty=certainty)
response = get_response(articles=articles, query=user_input)
st.success("Done! :smile:")

st.write(response["choices"][0]["message"]["content"])

st.header("Sources")

for article in articles:
st.write(f"Title: {article['title']}".replace('\n', ' '))
st.write(f"URL: {article['url']}")
st.write("---")

Development DAGs

This project also contains three DAGs for development purposes.

The finbuddy_load_pre_embedded DAG loads a set of pre-computed embeddings of news articles retrieved from a local .parquet file into Weaviate, as an easy way to test and adapt the pipeline.

Graph view of the finbuddy_load_pre_embedded DAG showing Weaviate schema handling and one task to ingest pre-calculated embeddings of news articles.

The finbuddy_load_documents DAG loads information from local markdown files.

Graph view of the finbuddy_load_documents DAG showing Weaviate schema handling and a pipeline to ingest information from local markdown files.

The create_schema DAG is designed for development environments to delete all data from Weaviate and create a new schema.

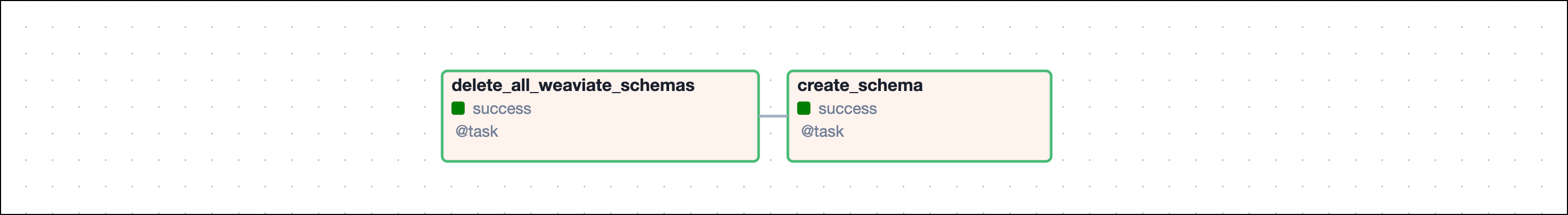

Graph view of the create_schema DAG showing two tasks, one to delete all existing schemas in a Weaviate database, another to create a news schema.

Conclusion

Congratulations! You successfully adapted a RAG pipeline using Airflow and Weaviate. You can now use this project as a blueprint to create your LLMOps pipelines!

See also

Was this page helpful?

Sign up for Developer Updates

Get a summary of new Astro features once a month.

You can unsubscribe at any time.
By proceeding you agree to our Privacy Policy, our Website Terms and to receive emails from Astronomer.
