Install Astronomer Certified on a virtual machine

The Astronomer Certified Python wheel is a distribution of Apache Airflow maintained by Astronomer. While functionally identical to Apache Airflow, the Astronomer Certified Python wheel includes additional bug and security fixes, as well as extended support from the Astronomer team.

If you want to run Astronomer’s distribution of Airflow without using Docker, you can install the Astronomer Certified Python wheel on either one or many virtual machines.

This guide provides steps for installing the Python wheel onto a single virtual machine. By the end of the setup, you’ll have a simple development environment for Airflow running on your local machine.

Note that this setup represents one possible configuration of Astronomer Certified and uses optional tools such as systemd and PostgreSQL. After successfully starting Airflow for the first time, we recommend reviewing this configuration and adjusting it based on the functional requirements for your project.

Prerequisites

The machines where you install Astronomer Certified must be Debian-based. CentOS and Windows Server are currently unsupported.

Once you’ve decided which machine you’ll be installing Astronomer Certified on, ensure that the following OS-level packages are installed on the machine:

• sudo
• python3
• python3-dev
• python3-venv
• python3-psycopg2
• gcc
• postgresql
• systemd

If you’re running on a Debian-based OS, you can install these with the following command:

sudo apt-get install sudo python3 python3-dev python3-venv python3-psycopg2 gcc postgresql systemd

You also need a database on the machine that will run your Airflow instance. This guide walks through the process for configuring a PostgreSQL database, which is our recommended implementation, but Airflow is compatible with all of the following databases:

• PostgreSQL: 9.6, 10, 11, 12, 13
• MySQL: 5.7, 8
• SQLite: 3.15.0+

Lastly, this guide assumes that you are installing Airflow 2.0+. The differences for installing pre-2.0 versions of Airflow are noted throughout the guide.

Step 1: Set Up Airflow’s metadata database

In Airflow, the metadata database is responsible for keeping a record of all tasks across DAGs and their corresponding status (queued, scheduled, running, success, failed, etc). To set up the metadata database:

1. Create a database user named airflow:

   1
   sudo -u postgres createuser airflow -P

   This will prompt you for a password. Create one, and make a note of it for later.

2. Create a database named airflow and set the airflow user as the owner:

   1
   sudo -u postgres createdb --owner airflow airflow

This guide assumes that your database server is local to where you run these commands and that you’re on a Debian-like OS. If your setup is different, you will need to tweak these commands.

If you’d like to use an existing PostgreSQL database instead of creating a new one, you can do so as long as both of the following are true:

• The database is compatible with Airflow as described in Prerequisites.
• A user named airflow has ownership access to the database.

When you specify the AIRFLOW__CORE__SQL_ALCHEMY_CONN environment variable in step 2F, replace the connection string with one that corresponds to your database.

Step 2: Create a system user to run Airflow

Airflow can run as any user, but for this setup we configure a new user called astro. Run the following command to add this user to your machine:

1
sudo useradd --create-home astro

Step 3: Create an Astro project directory

You also need to configure an AIRFLOW_HOME directory (not to be confused with the user’s home directory) where you’ll store your DAGs and other necessary files. We recommend using the path /usr/local/airflow as your project directory and /usr/local/airflow/dags as your DAG directory, but any path can be chosen as long as the astro user has write access to it. To do this, run the following commands:

1
sudo install --owner=astro --group=astro -d /usr/local/airflow
2
echo 'export AIRFLOW_HOME=/usr/local/airflow' | sudo tee --append ~astro/.bashrc
3
cd ${AIRFLOW_HOME}
4
sudo mkdir dags

Step 4: Create a virtual environment

To isolate your Airflow components from changes to the system, create a virtual environment in a directory named astro/airflow-venv using the following command:

1
sudo -u astro python3 -m venv ~astro/airflow-venv

venv is a tool to create lightweight, isolated Python environments without affecting systemwide configuration. For more information, read Python’s venv documentation.

Step 5: Install Astronomer Certified

To install the AC Python wheel onto your machine, run one of the following commands depending on your chosen Airflow Version and Executor:

• For Local Executor:

  1
  sudo -u astro ~astro/airflow-venv/bin/pip install --extra-index-url=https://pip.astronomer.io/simple/ 'astronomer-certified[postgres]==<airflow-version>' --constraint "https://raw.githubusercontent.com/apache/airflow/constraints-<airflow-version>/constraints-3.8.txt"

• For Celery Executor:

  1
  sudo -u astro ~astro/airflow-venv/bin/pip install --extra-index-url=https://pip.astronomer.io/simple/ 'astronomer-certified[postgres, celery, redis]==<airflow-version>' --constraint "https://raw.githubusercontent.com/apache/airflow/constraints-<airflow-version>/constraints-3.8.txt"

For example, to install the latest patch version of Apache Airflow 2.0.1 with support for the Celery executor, this command would be:

1
sudo -u astro ~astro/airflow-venv/bin/pip install --extra-index-url=https://pip.astronomer.io/simple/ 'astronomer-certified[postgres, celery, redis]==2.0.1.*' --constraint "https://raw.githubusercontent.com/apache/airflow/constraints-2.0.1/constraints-3.8.txt"

This command includes the optional postgres, celery, and redis dependencies so that all libraries for those tools are also installed. If your environment requires extra functionality, specify additional dependencies in a comma-delimited list:

astronomer-certified[mysql, redis, celery, crypto, aws]==2.0.1.*

For a list of all optional dependencies, refer to the AC pip index.

Step 6: Configure a process supervisor

To ensure that Airflow is always running when your machine is on, we recommend implementing a process supervisor. Systemd is used in this example, though any process supervisor works here.

To use systemd as a process supervisor:

1. Create a systemd unit file using the following command:

   1
   sudo -e /etc/systemd/system/astronomer-certified@.service

2. Using a text editor, create and edit a file at ${AIRFLOW_HOME}/sys-config to contain these environment variables and values:

   AIRFLOW_HOME= ${AIRFLOW_HOME}
   AIRFLOW__CORE__LOAD_EXAMPLES=False
   PATH=$PATH:/home/astro/airflow-venv/bin

   If you want to configure environment variables for a single Airflow service, we recommend doing so in the sys-config file for the machine on which the service is running.

3. Add the following to your systemd unit file:

   [Unit]
   Description=Airflow %I daemon
   After=network-online.target cloud-config.service
   Requires=network-online.target
   [Service]
   EnvironmentFile=${AIRFLOW_HOME}/sys-config
   User=astro
   Group=astro
   Type=simple
   WorkingDirectory=${AIRFLOW_HOME}
   ExecStart=/home/astro/airflow-venv/bin/airflow %i
   Restart=always
   RestartSec=5s
   [Install]
   WantedBy=multi-user.target

Step 7: Configure Airflow for database access

To connect your Airflow environment to the metadata database you created in Step 1, add the following environment variables to your sys-config file depending on your chosen executor:

• For Local Executor:

  AIRFLOW__CORE__SQL_ALCHEMY_CONN=postgresql+psycopg2://airflow:<your-user-password>@localhost/airflow
  AIRFLOW__WEBSERVER__BASE_URL=http://localhost:8080
  AIRFLOW__CORE__EXECUTOR=LocalExecutor

• For Celery Executor:

  AIRFLOW__CORE__SQL_ALCHEMY_CONN=postgresql+psycopg2://airflow:<your-user-password>@localhost/airflow
  AIRFLOW__WEBSERVER__BASE_URL=http://localhost:8080
  AIRFLOW__CELERY__BROKER_URL=redis://:@redis:6379/0/airflow:<your-user-password>@localhost/airflow
  AIRFLOW__CELERY__RESULT_BACKEND=db+postgresql://airflow:<your-user-password>@localhost/airflow
  AIRFLOW__CORE__EXECUTOR=CeleryExecutor

The password you specify here should be the same one you specified when prompted by the createuser command in Step 1. If your password contains %, /, or @ then you will need to url-escape; replace % with %25, / with %2F, and @ with %40.

When you’ve finished configuring environment variables, run the following command to add your environment variables to your astro user’s shell environment:

1
echo 'set -a; source ${AIRFLOW_HOME}/sys-config; set +a' | sudo tee --append ~astro/.bashrc

Optional: Configure a secret backend for database access

Your Airflow user password is stored in your sys-config file (owned by root:root and 0600 permissions) on your nodes. If you’d rather use an existing credential store, such as HashiCorp Vault, you can instead specify a command to obtain the connection string when the service starts up. For example:

AIRFLOW__CORE__SQL_ALCHEMY_CONN_CMD=vault kv get -field=dsn secret/airflow-db

Step 8: Set up the scheduler

In Airflow, the scheduler is responsible for reading from the metadata database to check on the status of each task and decides the order in which tasks should be completed. To get your scheduler running:

1. Enable the scheduler by running the following command:

   1
   sudo systemctl enable astronomer-certified@scheduler.service

2. Edit the override file for the machine by running the following command:

   1
   sudo systemctl edit astronomer-certified@scheduler.service

3. In the override file, add the following lines:

   [Service]
   ExecStartPre=/home/astro/airflow-venv/bin/airflow db upgrade

   Note If you’re running Airflow 1.10, the command specified here will instead be airflow upgradedb.

4. Start the service by running:

   1
   sudo systemctl start astronomer-certified@scheduler.service

Step 9: Set up the webserver

The webserver is a core Airflow component that is responsible for rendering the Airflow UI. To configure it on its own machine, follow the steps below.

1. Enable the webserver by running the following:

   1
   sudo systemctl enable astronomer-certified@webserver.service

2. Start the webserver by running the following:

   1
   sudo systemctl start astronomer-certified@webserver.service

Step 10: Set up workers (Celery only)

Workers are an essential component for running Airflow with the Celery executor. To set up Celery workers on your machine:

1. Create a new systemd unit file specifically for your Celery workers by running the following command:

   1
   sudo -e /etc/systemd/system/astronomer-certified-worker.service

2. In the unit file, add the following lines:

   [Unit]
   Description=Airflow %I daemon
   After=network-online.target cloud-config.service
   Requires=network-online.target
   [Service]
   ExecStartPre=/home/astro/airflow-venv/bin/airflow db upgrade
   EnvironmentFile=${AIRFLOW_HOME}/sys-config
   User=astro
   Group=astro
   Type=simple
   WorkingDirectory=${AIRFLOW_HOME}
   ExecStart=/home/astro/airflow-venv/bin/airflow celery %i
   Restart=always
   RestartSec=5s
   [Install]
   WantedBy=multi-user.target

3. Enable the worker service by running the following command:

   1
   sudo systemctl enable astronomer-certified-worker.service

4. Start the service by running the following command:

   1
   sudo systemctl start astronomer-certified-worker.service

Step 11: Create an Airflow user

To log in to the Airflow UI, you need to first create an Airflow user:

1. Switch to your system astro user using the following command:

   1
   sudo -H su -u astro bash

   All Airflow CLI commands must be run from your astro user.

2. Create a new admin Airflow user with the following command:

   1
   airflow users create -e EMAIL -f FIRSTNAME -l LASTNAME -p PASSWORD -r Admin -u USERNAME

Step 12: Confirm the installation

To confirm that you successfully installed Apache Airflow, open http://localhost:8080 in your web browser. You should see the login screen for the Airflow UI.

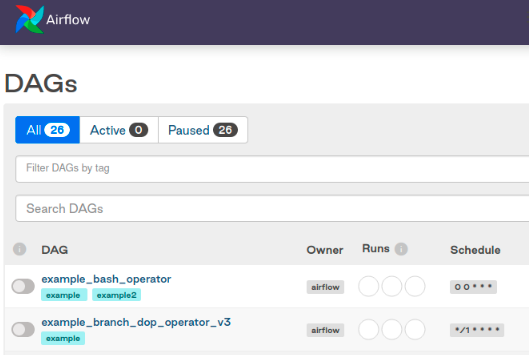

Log in with your admin user. From there, you should see Airflow’s primary ‘DAGs’ view:
